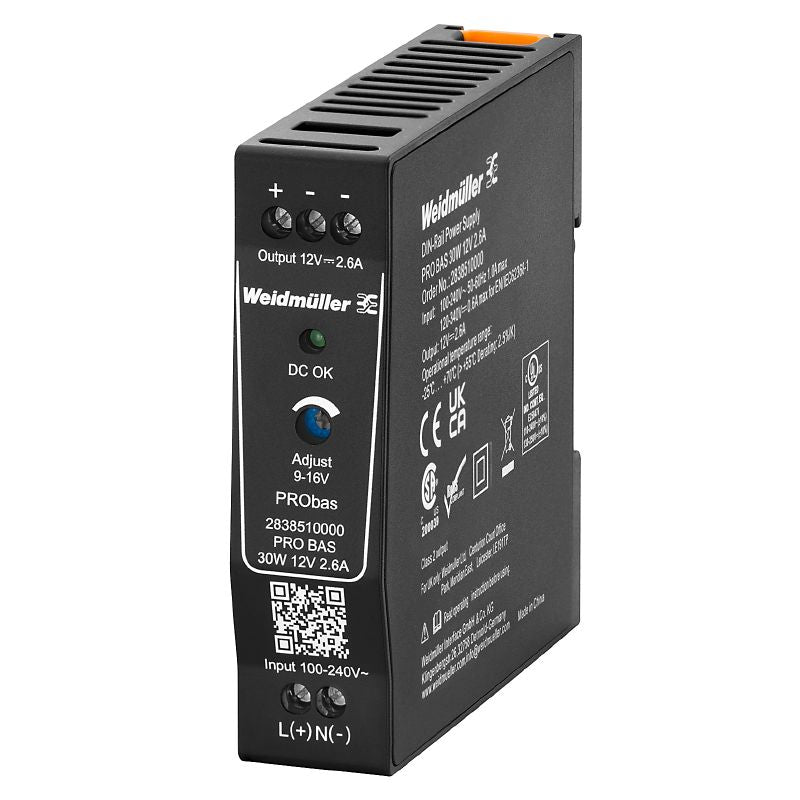

2838510000 - Compact 30W 12V Power Supply for TS35 Mounting Rail

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

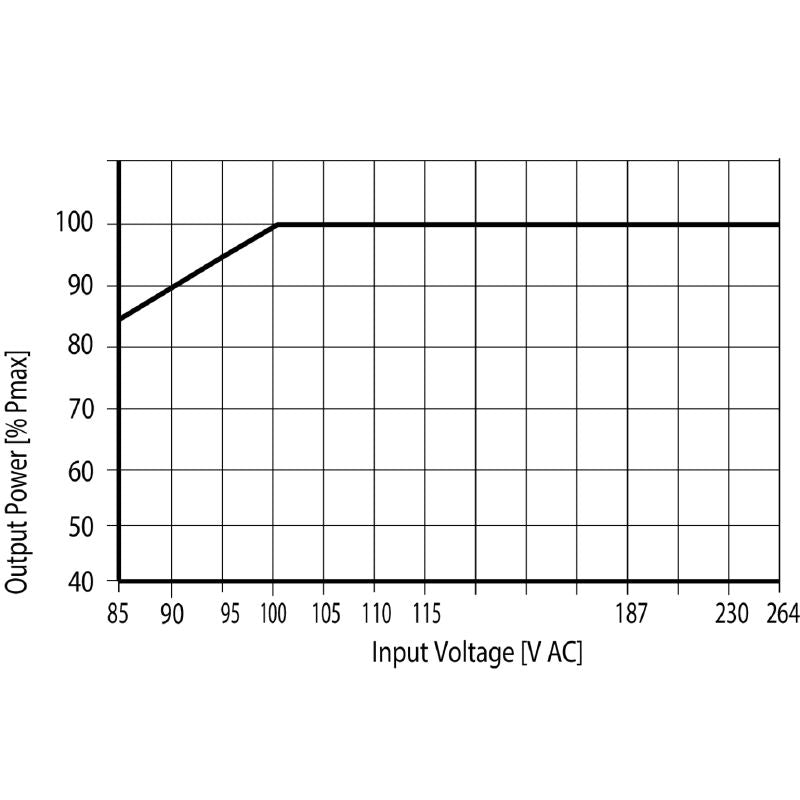

Experience reliable power with the PRO BAS 30W 12V 26A switch-mode power supply Built for efficiency, it operates with an input voltage range of 85 to 264 V AC, and meets multiple standards, including RoHS, along with UL certification for safety assurance Measuring 85 mm in depth, 90 mm in height, and 23 mm in width, this power supply is specifically designed for horizontal installation on a TS35 mounting rail, promoting optimal airflow for enhanced cooling.

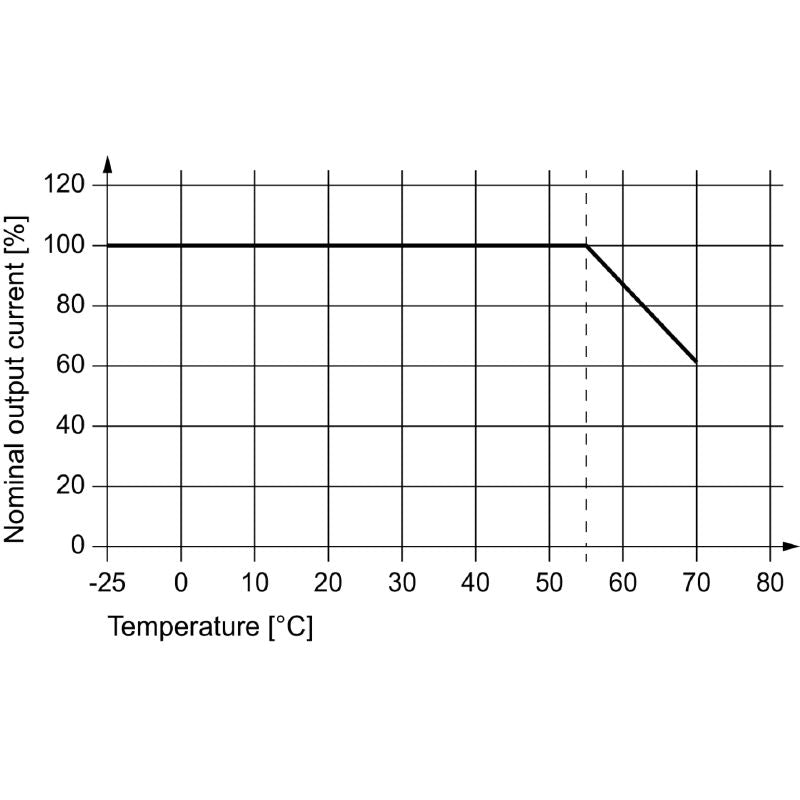

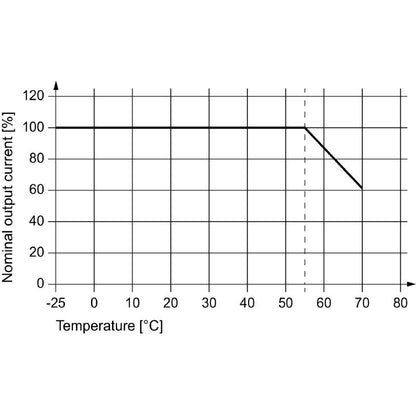

It functions effectively in a wide temperature range, from -25 °C to 70 °C during operation, and can be stored in conditions as cold as -40 °C and as hot as 85 °C With a consistent output current of 26 A at 12 V, it features essential protections against overload and inverse voltage and supports parallel connections, allowing for the combination of up to three units for increased power capacity.

Features and Benefits:

•Compact dimensions with a depth of 85 mm, height of 90 mm, and width of 23 mm.

•High efficiency with a degree of efficiency of 89% @ 230 V AC.

•Adjustable output voltage via potentiometer.

•Includes a status indication green LED.

•Designed for horizontal mounting with considerations for effective airflow.

•Suitable for use in environments requiring switch-mode power supplies.

Specifications:
