Description:
Introducing the PRO MAX3, an exceptional switch-mode power supply unit that offers a reliable output of 480W at 24V and 20A This unit adheres to several safety standards, including RoHS, and boasts multiple certifications for secure operation Its efficient performance is complemented by a broad temperature range, allowing it to function optimally in diverse environments With various connection options and current ratings, the PRO MAX3 is versatile enough to support a range of electrical configurations.
Weighing in at just 16 kg, it’s lightweight and easy to install, making it an ideal choice for your power supply needs.
Features and Benefits:
•Compliance with RoHS standards.
•Screw connection for easy setup.
•Adjustable output voltage.
•Compact design for space-saving installation.
•High efficiency rating of 91.5%.
Specifications:
| Input AC voltage range | 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC |
| Input current | 0.85 A at 400 V AC |
| Output power | 480 W |

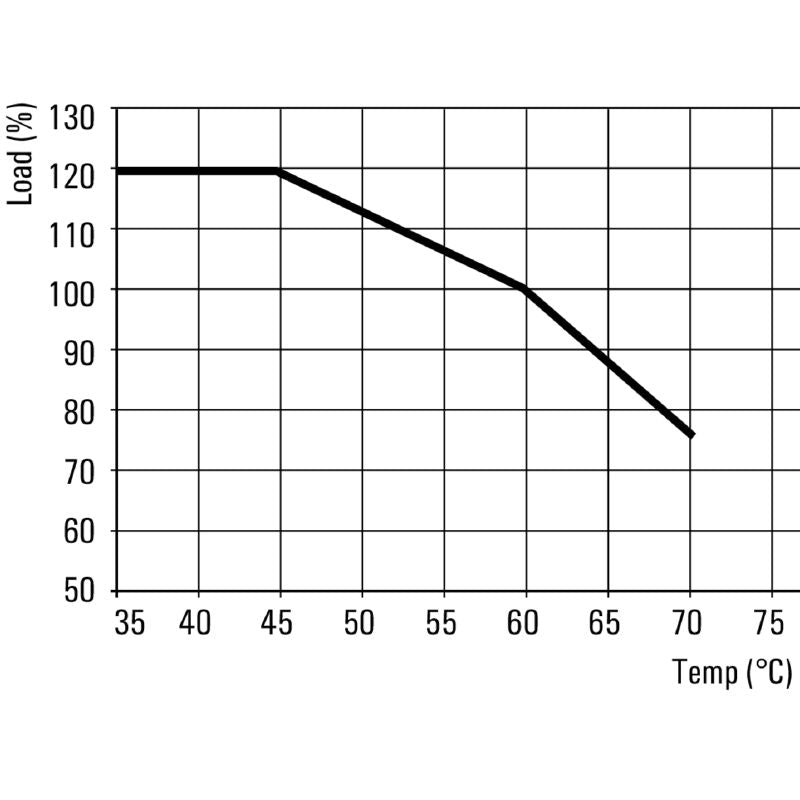

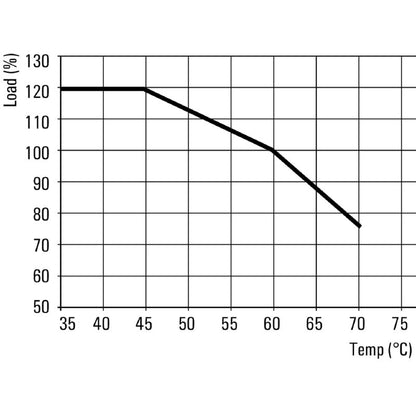

| Continuous output current | 24 A @ 45°C, 15 A @ 70°C |
| Rated output voltage | 24 V DC ± 1 % |
| Protection degree | IP20 |
| Humidity at operating temperature | 5...95 %, no condensation |
| Operating temperature | -25 °C...70 °C |
| Storage temperature | -40 °C...85 °C |
| Degree of efficiency | 91.5% |
| Housing version | Metal, corrosion resistant |
| Short-circuit protection | Yes |
