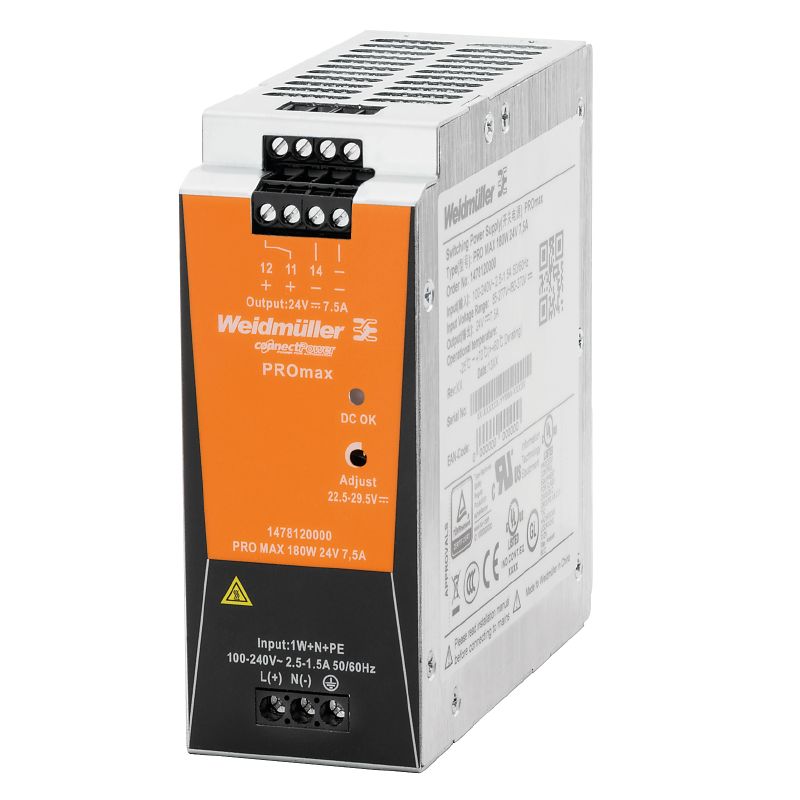

1478120000 - 180W 24V Power Supply Unit for TS35 Mounting Rails

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a powerful 24 V power supply unit ideal for various applications, delivering up to 180W of maximum output With a continuous output current capacity of 75 A at 60 °C, it caters to a diverse range of energy needs This unit accommodates a broad AC input voltage from 85 to 277V and can manage DC input voltages between 80 and 370 V Engineered for efficiency, it boasts a 915% operational efficiency and comes with several certifications, including RoHS compliance.

The unit's sturdy metal casing is designed for horizontal installation on TS35 mounting rails while ensuring optimal airflow It also supports parallel connections for up to five units and operates efficiently within a temperature range of -25 °C to +70 °C This power supply is a robust solution for your electrical needs.

Features and Benefits:

•RoHS compliant with exemptions.

•Adjustable output voltage via potentiometer.

•High efficiency at 91.5%.

•Wide operating temperature range of -25 °C to +70 °C.

•Compact design with metal corrosion-resistant housing.

Specifications:
