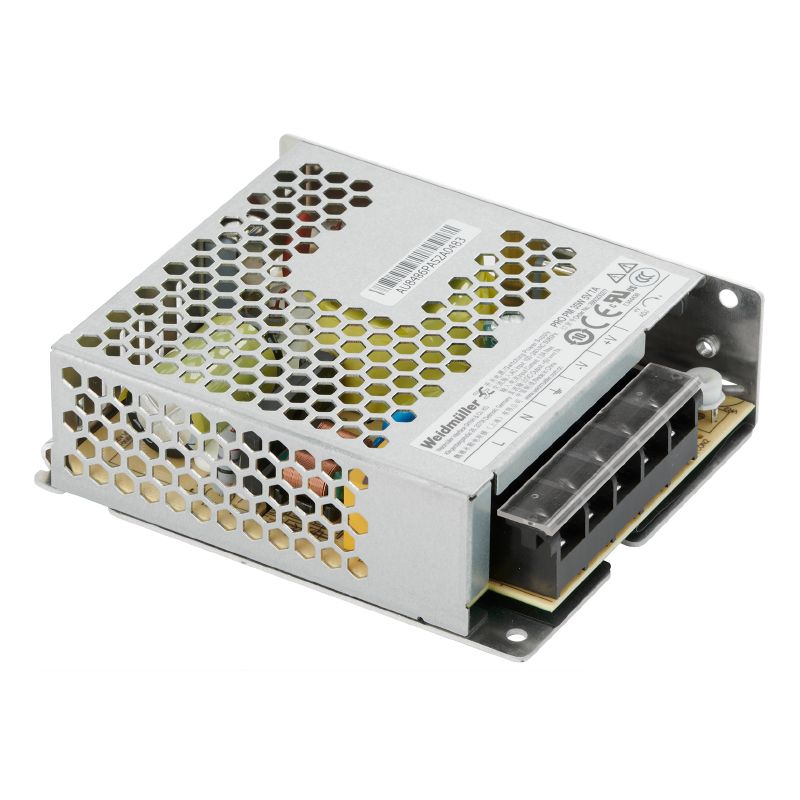

2660200278 - 35W Switch-Mode Power Supply, 12V, ROHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Presenting the PRO PM 35W 12V 3A switch-mode power supply, designed for reliability and efficiency This unit adheres to ROHS standards and has a net weight of 220 grams With dimensions of 99 mm (depth) x 30 mm (height) x 82 mm (width), it is compact and easy to install The power supply operates effectively in a broad temperature range, from -20 °C to 70 °C, and can be stored safely in conditions varying from -40 °C to 85 °C.

It is designed to handle humidity levels between 5% and 95% With an input AC voltage range of 90 to 264 V and compatible frequencies of 47 to 63 Hz, this device is versatile for various applications Installation is straightforward, thanks to the screw connection system, and the unit is equipped with short-circuit protection for added safety Achieving an efficiency rate of 84%, it provides an output power of 35 W and a rated output voltage of 12 V DC.

The adjustable voltage tolerance allows for flexibility, with a recommended 2 A fuse for use at 230 V AC This power supply combines performance with practicality, making it a great choice for your power needs.

Features and Benefits:

•Degree of efficiency at 84%.

•LED status indication showing ready state.

•Short-circuit protection included.

•Panel mount installation with screw fixing.

•Handles a wide range of AC inputs.

•Overload protection within 120%-180% I nominal limits.

Specifications:
