Description:

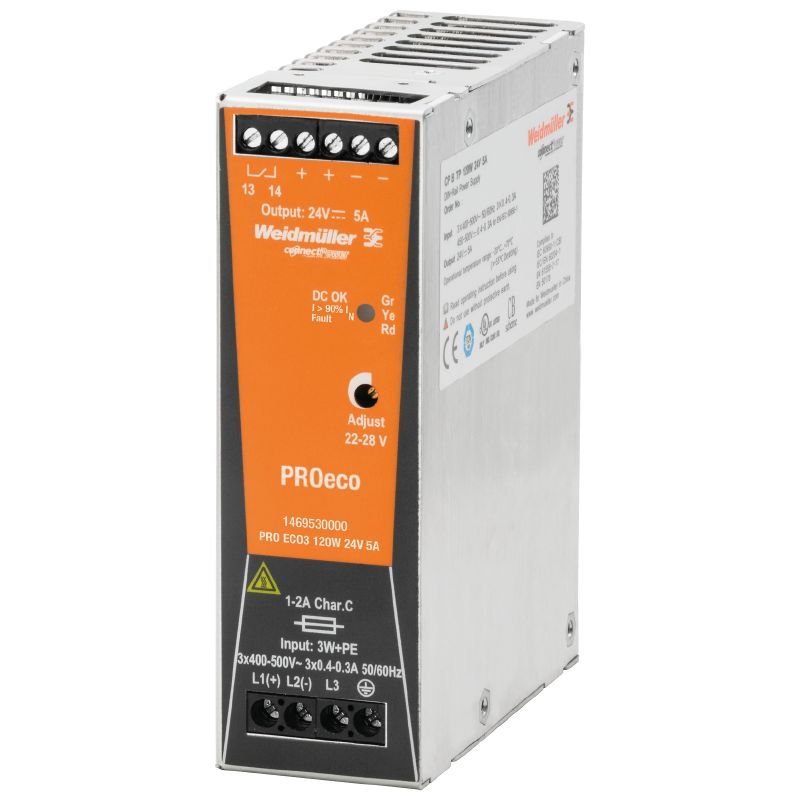

Introducing the PRO ECO3 120W 24V 5A switch-mode power supply unit, designed for efficient and reliable performance This 24V power supply is recognized for its safety and compliance, featuring RoHS certification and adhering to UL standards (file number E258476) Please be aware that this product will only be available until December 30, 2026, and can also be identified by its alternative product number, 3025620000.
Built with durability in mind, it is engineered to uphold high efficiency and safety, making it suitable for a variety of applications.
Features and Benefits:
•Designed as a switch-mode power supply unit.
•Constructed to be ROHS compliant.
•Metal housing that is corrosion resistant.
•Visual status indicators with LED lights.
Specifications:
| Dimensions (Depth x Height x Width) | 100 mm x 125 mm x 40 mm |
| Net Weight | 677 g |
| Operating Temperature | -25 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Output Power | 120 W |
| Nominal Output Voltage | 24 V DC ± 1 % |
| Rated Input Voltage | 3x 400...3x 500 V AC |
| Input Current at 400 V | 0.4 A |
| Input Current at 500 V | 0.3 A |
| Input Current at 450 V | 0.4 A |
| Inrush Current | max. 40 A |
| Protection Degree | IP20 |
| Max Perm. Air Humidity (Operational) | 5 %…95 % RH |
| Cooling Method | Natural convection |
| Degree of Efficiency | 87 % |
| Earth Leakage Current (Max) | 3.5 mA |
| Power Factor (Approx.) | > 0.55 |
| Protection Against Over-heating | Yes |
| Short-circuit Protection | Yes |
| Surge Voltage Category | II |
