Description:

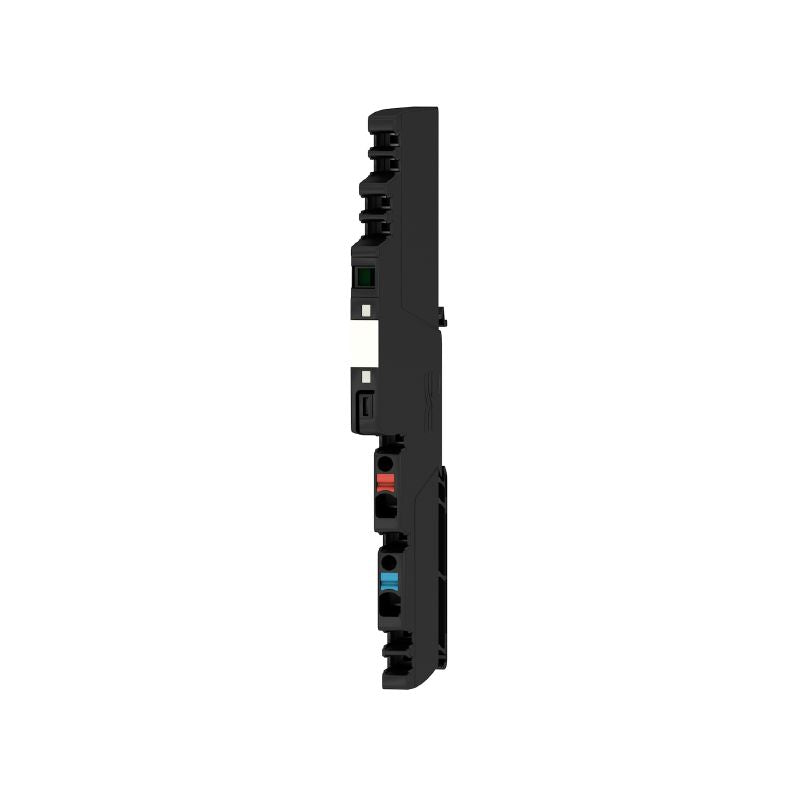

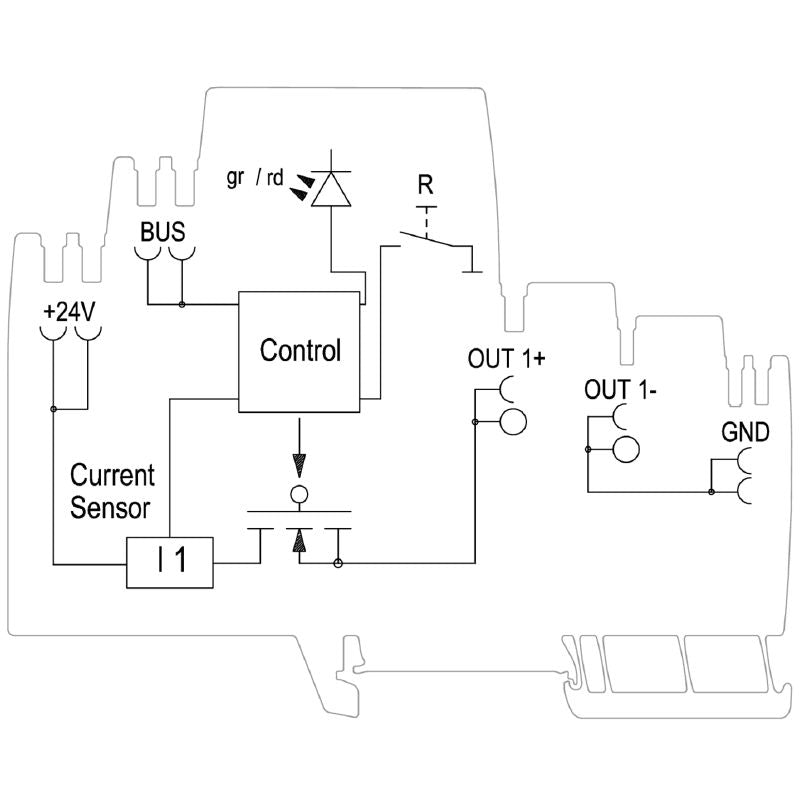

The AMG ELM-1F CL2 is an electronic load monitor with a capacity of 1 A, functioning at 24 V DC This device is compliant with RoHS standards and holds a certified UL File Number E258476 Measuring 125 mm in height, 965 mm in depth, and only 61 mm in width, it is compact and lightweight, weighing just 40 g The operating temperature range extends from -25 °C to 70 °C, while it can be stored at temperatures as low as -40 °C and as high as 85 °C, making it versatile for various environments.
Features and Benefits:
•Conformal coating: No.
•Function key activation time: <3s.
•Protection degree: IP20.
•Surge voltage category: III.
•Connection system: PUSH IN.
•Number of terminals: 2 (+ / -).
Specifications:

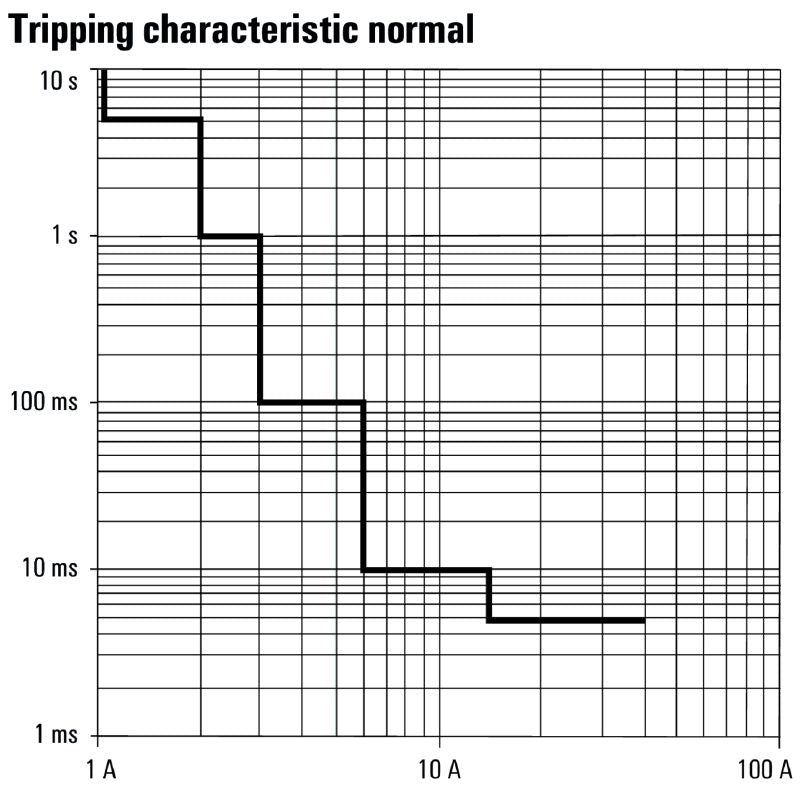

| Current consumption (full load) | +30 mA |
| Current consumption (idle) | 25 mA |
| DC input voltage range | 18…30 V DC |
| Input fuse (internal) | Yes |
| max. admissible residual ripple at the input | 100 mVpp |
| Rated input voltage | 24 V DC |
| Surge protection (output) | Suppressor diode |
| Adjustable rated current | No |
| Capacitive load | 4.700 µF |
| Rated current | 1 A |
| Switch-on delay | 1 s |
| MTTF (Operating time) | 2,540,000 h |
| Input voltage | 24 V |
| Output power | 24 W |
| Duty cycle | 100 % |
| Power loss (idling) | 444 mW |
| Power loss (nominal load) | 502 mW |
| Conductor cross-section, AWG/kcmil, max. | 12 AWG |
| Conductor cross-section, AWG/kcmil, min. | 26 AWG |
| Conductor cross-section, flexible, max. | 2.5 mm² |
| Conductor cross-section, flexible, min. | 0.14 mm² |
| Conductor cross-section, rigid, max. | 2.5 mm² |
| Conductor cross-section, rigid, min. | 0.14 mm² |
| Signalling | LED green (Operation - failure-free), Red LED (Load monitoring has disconnected, Load monitoring has triggered, Internal error) |
