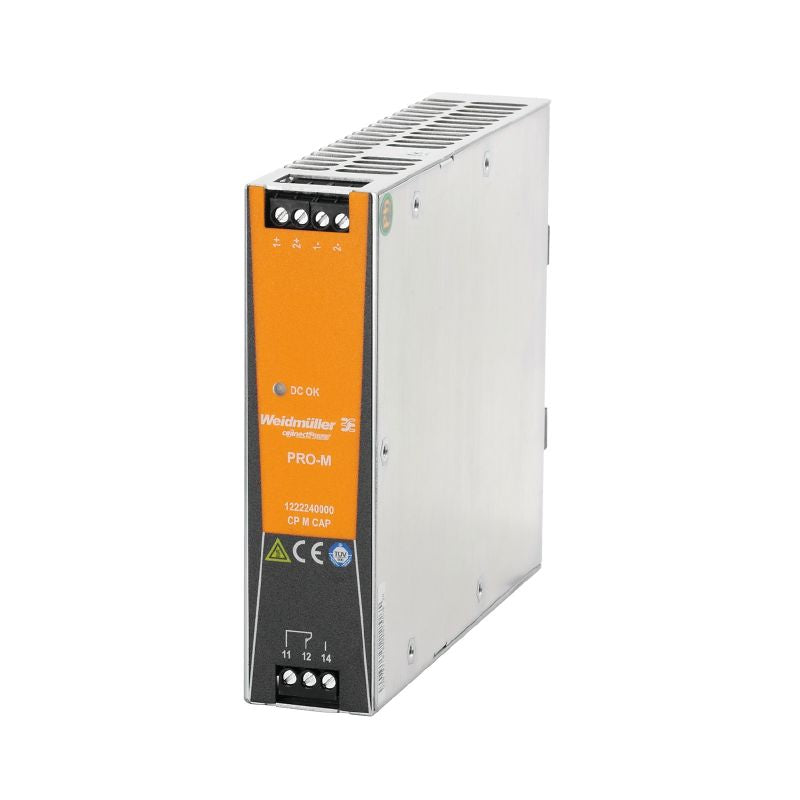

1222240000 - RoHS Compliant Capacity Module 150mm Depth, 130mm Height

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CP M CAP capacity module, crafted according to precise ordering specifications This unit adheres to RoHS standards and is certified under number E258476 It features compact dimensions of 150 mm in depth and 130 mm in height, weighing 63712 g Engineered to function effectively in a wide temperature range from -40 °C to 85 °C, it maintains operational integrity even in high humidity environments, tolerating levels from 5% to 95% without condensation.

With a DC current draw of 25 mA at 24 V post charging, this module supports an input voltage variation of 18 to 30 V DC It also exhibits peak current outputs that depend on the load, typically reaching up to 40 A for brief intervals of 1 ms, making it a versatile component for your needs.

Features and Benefits:

•RoHS compliant.

•IP20 protection degree.

•Screw connection for wire connection method.

•Noise emission class B.

•Vibration resistance according to IEC 60068-2-6.

Specifications:
