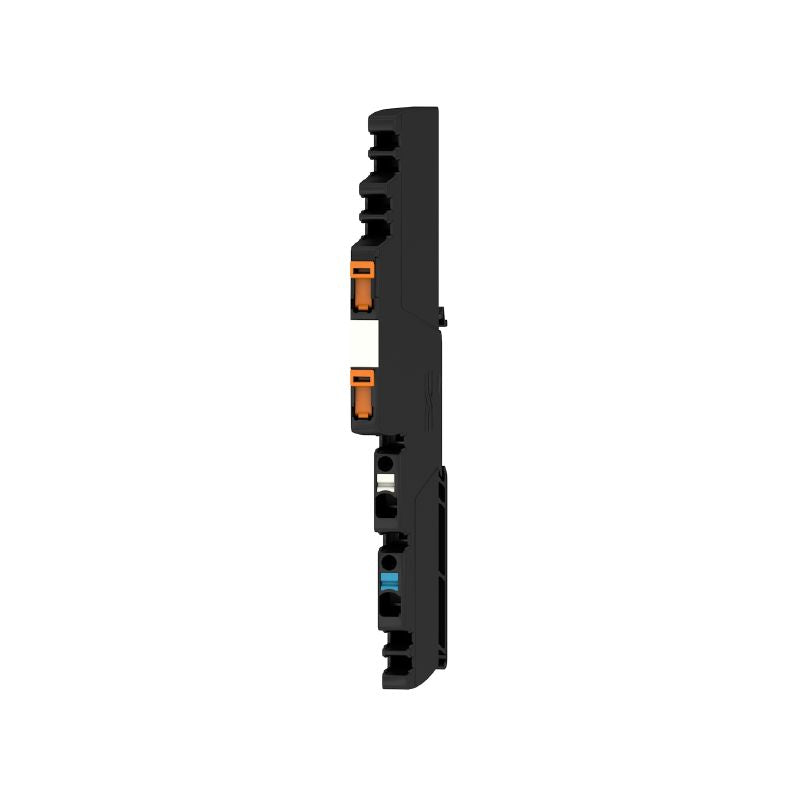

2123050000 - Push-In Connection Component for Safe Electrical Applications (Pack of 10)
2123050000 - Push-In Connection Component for Safe Electrical Applications (Pack of 10)
SKU: SKU: 2123050000 Download PDF
- 2123050000 - Push-In Connection Component for Safe Electrical Applications (Pack of 10)
- 2123050000 - Push-In Connection Component for Safe Electrical Applications (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the AMG DIS, a versatile component expertly engineered for a range of electrical applications Its innovative push-in connection system simplifies installation, ensuring seamless and dependable connections Fully compliant with RoHS regulations, this device adheres to strict environmental standards, making it suitable for diverse settings Built with a robust design to withstand various environmental influences, it has also been rigorously tested to guarantee compatibility with standard electrical specifications.
Features and Benefits:
•Push-in connection for easy installation.
•RoHS compliant.
•Operates within a wide temperature range.
•Protection degree of IP20.
Specifications:
| Depth | 96.5 mm |
| Height | 125 mm |
| Width | 6.1 mm |
| Net weight | 42.2 g |
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | -25 °C to 70 °C |
| Current load per contact point | 12 A |
| Total current load per potential | 12 A |
| Conductor cross-section, AWG/kcmil , max. | 12 AWG |
| Conductor cross-section, AWG/kcmil , min. | 26 AWG |
| Conductor cross-section, flexible , max. | 2.5 mm² |
| Conductor cross-section, flexible , min. | 0.14 mm² |
| Conductor cross-section, rigid , max. | 2.5 mm² |
| Conductor cross-section, rigid , min. | 0.14 mm² |
| Number of terminals | 2 (+ / -) |
| Screwdriver blade | 0.6 x 3.5 |
| ETIM 6.0 | EC000902 |
| ETIM 7.0 | EC000902 |
| ETIM 8.0 | EC000902 |
| ETIM 9.0 | EC000902 |
| ETIM 10.0 | EC000902 |
| ECLASS 9.0 | 27-14-11-26 |
| ECLASS 9.1 | 27-14-11-26 |
| ECLASS 10.0 | 27-14-11-26 |
| ECLASS 11.0 | 27-14-11-26 |
| ECLASS 12.0 | 27-14-11-26 |
| ECLASS 13.0 | 27-25-01-09 |
| ECLASS 14.0 | 27-25-01-09 |
| ECLASS 15.0 | 27-25-01-09 |
