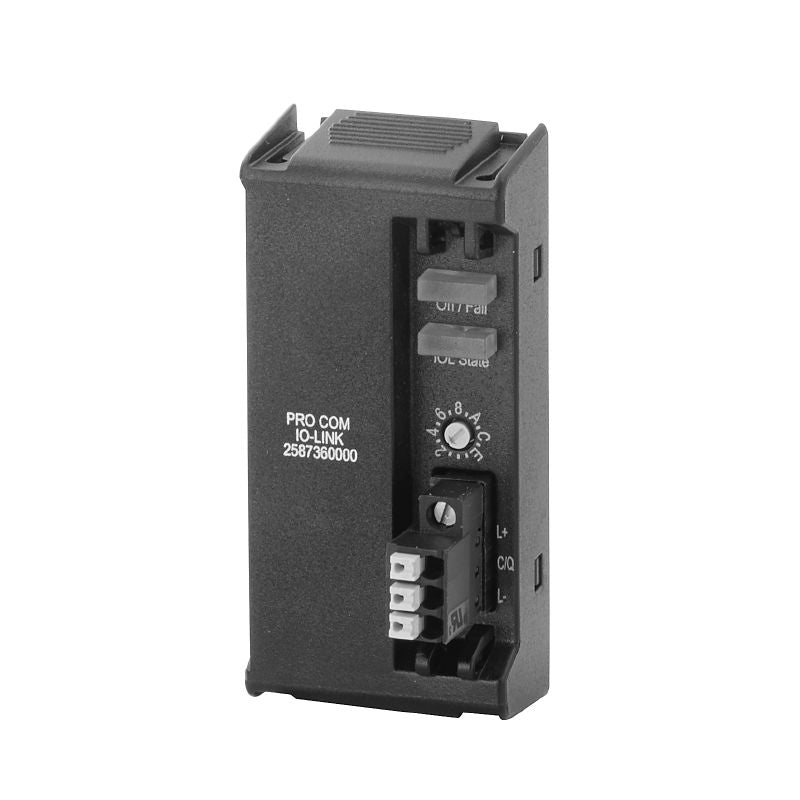

2587360000 - Compact RoHS Compliant IO-LINK Module, 33.6mm Depth

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience seamless connectivity with the PRO COM IO-LINK communication module, which adheres to RoHS standards and boasts certifications from cULus, identified by the certificate numbers E258476 and E470829 This compact module measures 336 mm in depth, 744 mm in height, and 35 mm in width (1323 inches x 2929 inches x 1378 inches) and has a lightweight design at just 29 grams It operates efficiently within a temperature range of -25 °C to 70 °C.

Additionally, it complies with RoHS regulations with specific exemptions (6c, 7a, and 7cI) and includes the REACH SVHC Lead 7439-92-1 Ideal for enhancing your communication systems, this module marries functionality with compliance.

Features and Benefits:

•Protection degree IP20.

•Duty cycle is 100%.

•MTTF according to Standard SN 29500, with a minimum operating time of 7,148,000 hours.

•Wire connection method is PUSH IN.

•Wire connection cross-section for flexible signals varies from 0.14 mm² to 1.5 mm².

•Max wire cross-section for AWG/kcmil is 16 and min is 26.

•Complies with multiple ETIM and ECLASS classifications.

Specifications:
