2080650000 - 10A Electronic Load Monitor for 24V DC Applications

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

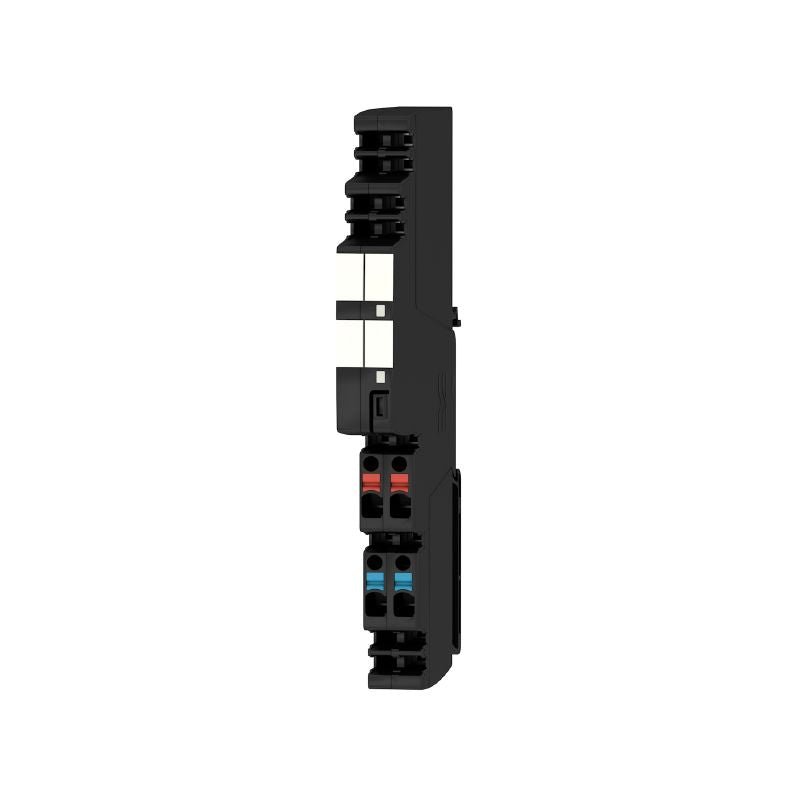

Introducing the AMG ELM-10F electronic load monitor, expertly crafted for 24 V DC systems and capable of handling up to 10 A This device adheres to RoHS standards for eco-friendliness and boasts UL certification under file number E258476 With a switch-on delay of just 1 second, it’s engineered for reliable performance Adaptable to various conductor cross-sections, it incorporates a user-friendly PUSH IN connection system.

Weighing only 57 g and measuring 965 mm in depth, 125 mm in height, and 122 mm in width, this monitor is built to operate efficiently in temperatures ranging from -25 °C to 70 °C, withstanding storage conditions from -40 °C to 85 °C.

Features and Benefits:

•RoHS compliant with exemptions.

•Current consumption efficiency with only 30 mA at full load.

•Supports a capacitive load of up to 20,000 µF.

•PUSH IN connection system for easy integration.

•Status indicators with green LED for normal operation and red LED for load monitoring.

•High operational lifespan with 2,844,000 hours at standard conditions.

•Protection degree of IP20.

•Surge voltage category III for enhanced reliability.
