2080410000 - 12A Electronic Load Monitor, 96.5mm Depth, RoHS Certified

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

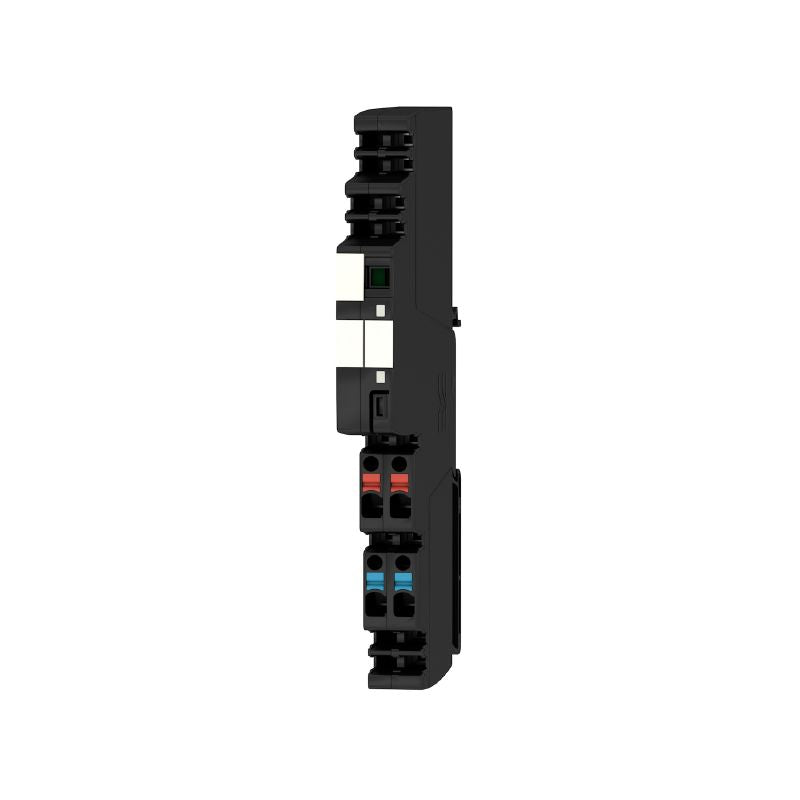

Introducing the AMG ELM-12, a reliable solution for electronic load monitoring with a capacity of 12 A at 24 V DC This device is compliant with RoHS standards and proudly bears cULus certification, ensuring its quality and safety With compact dimensions of 965 mm in depth, 125 mm in height, and just 122 mm in width, it weighs only 60 g, making it easy to integrate into your setup This model operates efficiently within a temperature range of -25 °C to 70 °C and can be stored in even more extreme conditions, between -40 °C and 85 °C.

The innovative PUSH IN connection system simplifies output connectivity Additionally, the AMG ELM-12 features surge protection through a suppressor diode, adjustable rated current, and can handle a capacitive load of up to 20,000 µF, enhancing its functionality for various applications.

Features and Benefits:

•RoHS compliant.

•Equipped with surge protection with a suppressor diode.

•Supports adjustable rated current.

•Capacitive load capacity of 20,000 µF.

•Effective load monitoring with visual indicators.
