2486070000 - Compact 24V Diode Module, UL Certified, 125mm Depth

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

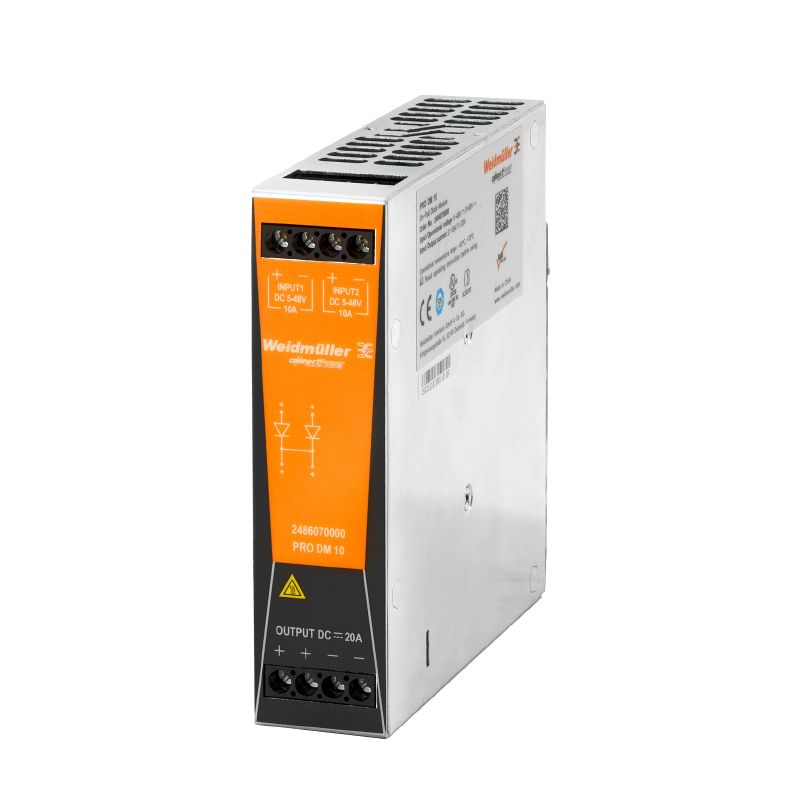

Introducing the PRO DM 10 diode module, perfectly engineered for a 24 V DC input This product not only meets RoHS standards but is also UL certified, ensuring its quality and safety Its compact structure measures 125 mm in both height and depth, with a width of 32 mm and a lightweight design of 332 g Optimized for extreme conditions, the module functions effectively within a temperature range of -40 °C to 70 °C and can handle humidity levels from 5% to 95% without condensation.

The input voltage can range from 0 to 60 V DC, providing a maximum current output of up to 20 A and a peak output power of 466 W Built robustly, the module features a corrosion-resistant metal enclosure and is designed for easy horizontal installation on TS35 mounting rails, making it a reliable choice for various applications.

Features and Benefits:

•UL certified product.

•Compact dimensions with a metal, corrosion resistant housing.

•High efficiency with over 97% at 24 V input voltage.

•Supports a wide range of operating temperatures.

•Capable of handling high ambient conditions without performance loss.

•Horizontal mounting allows for efficient use of space.

Specifications:
