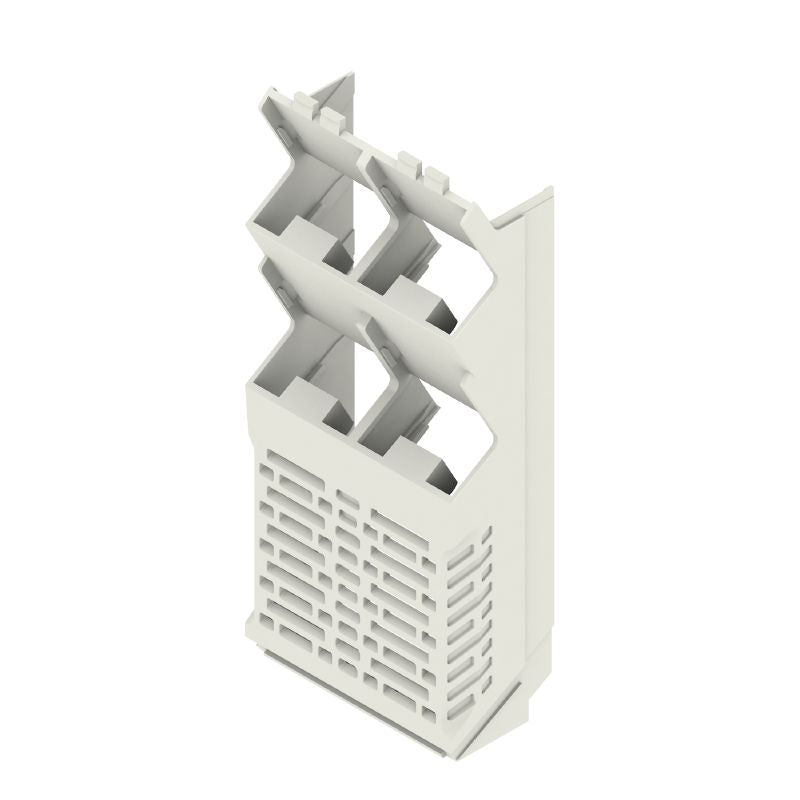

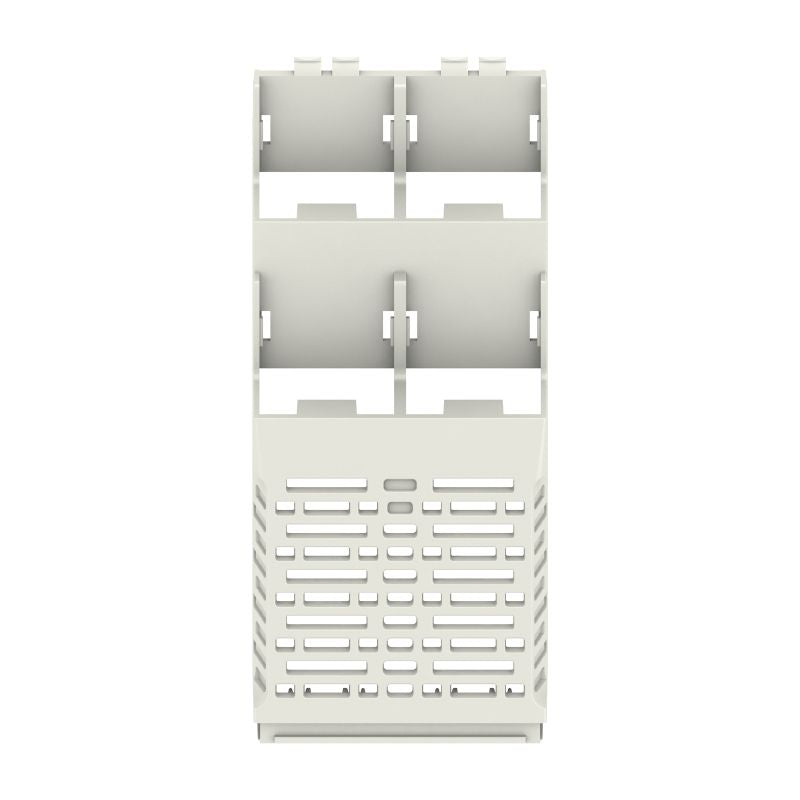

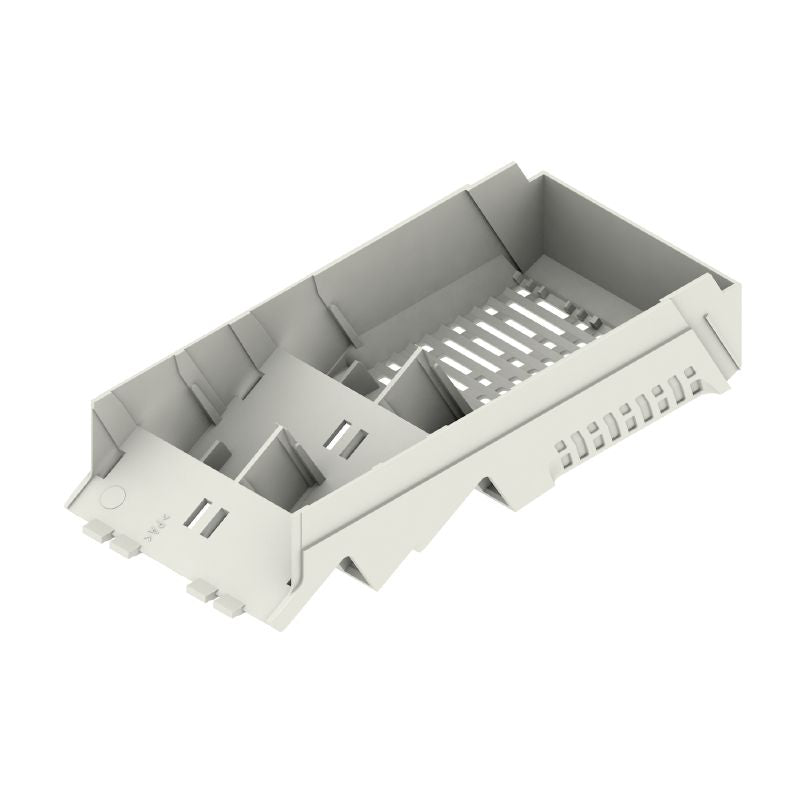

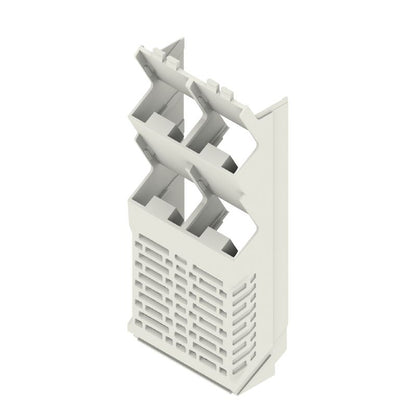

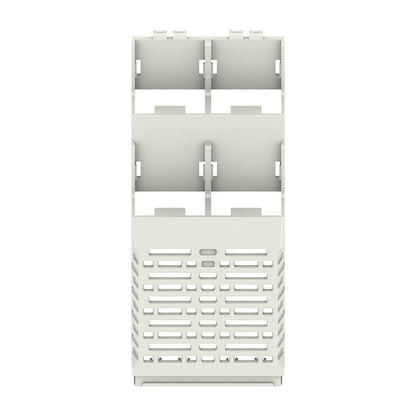

1164790000 - 45mm Light Grey OMNIMATE Component with Dual Connection Levels (Pack of 6)

SKU: SKU: 1164790000 Download PDF

Variant:

1164790000 - 45mm Light Grey OMNIMATE Component with Dual Connection Levels (Pack of 6)

Now $29.52

~~BEFORE $0.00~~ Now $29.52

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CH20M45 S 2PSC/2PSC in a stylish Light Grey OMNIMATE housing This versatile component is designed with a 45 mm width side element, offering robust performance while meeting RoHS compliance standards Engineered for durability, it can accommodate a maximum of 16 poles and features two connection levels, making it ideal for a diverse range of applications.

Features and Benefits:

•Compliant with RoHS without exemption.

•Wide operating temperature from -40°C to 120°C.

•Plastic basic material with a CTI of 600.

•IP20 protection degree when installed.

Specifications:

Order No.	1164790000
GTIN (EAN)	4032248954827

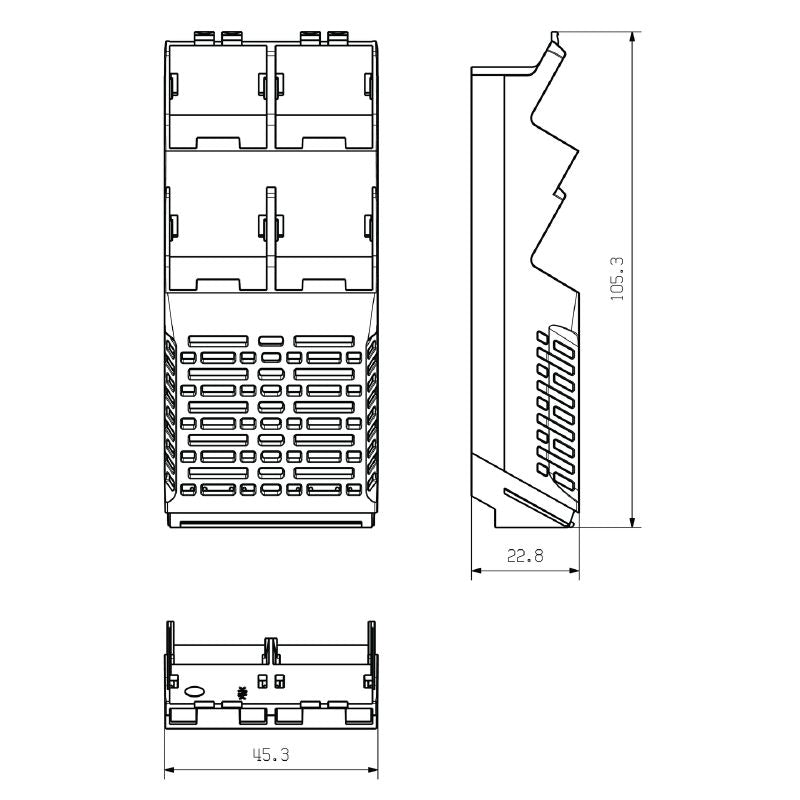

Depth	105.3 mm (4.146 inch)
Height	22.8 mm (0.898 inch)
Width	45 mm (1.772 inch)
Ambient temperature	-25 °C…85 °C
Humidity	5 - 93% relative humidity at 40°C without condensation
Insulating material	PA 66 GF 30
UL 94 flammability rating	V-0
Number of connection levels	2
Number of poles, max.	16
Number of slots for female plugs	4
Number of ventilation openings	2
Protection degree	IP20 in installed state
