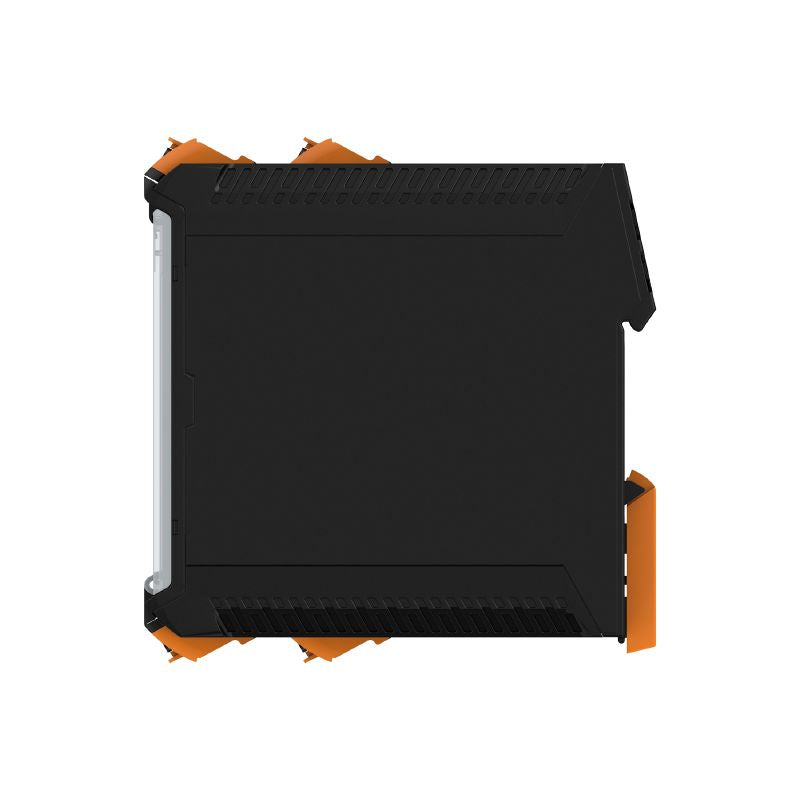

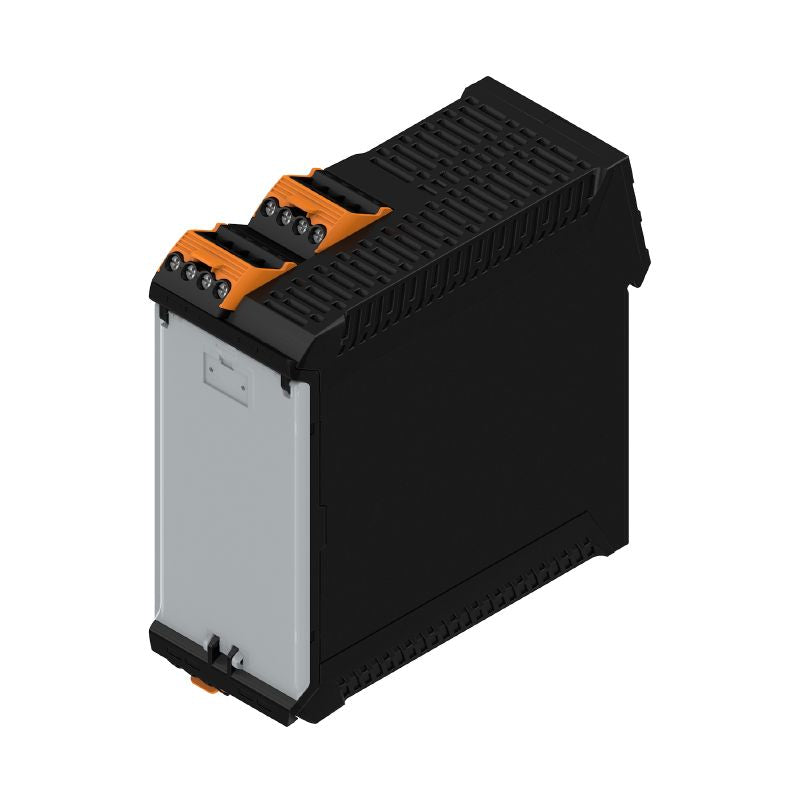

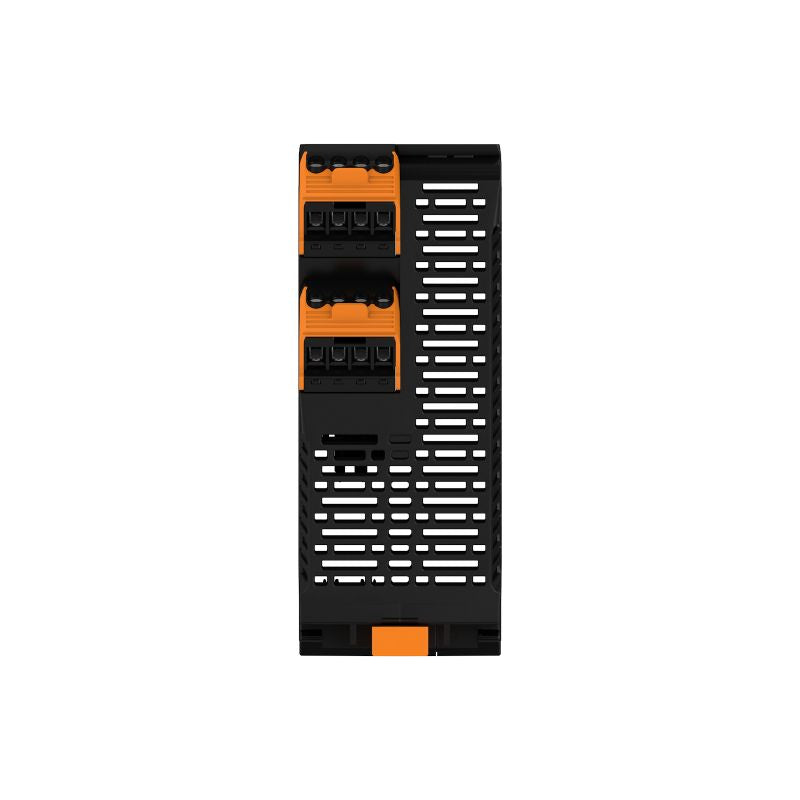

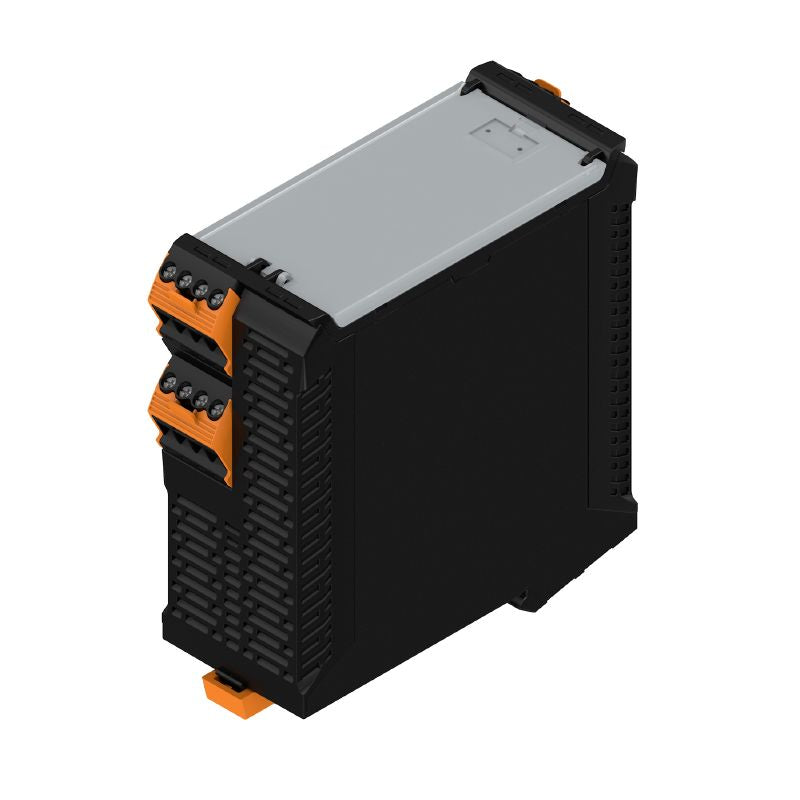

1519430000 - OMNIMATE 45mm Black Housing Sample Kit with Female Plug

1519430000 - OMNIMATE 45mm Black Housing Sample Kit with Female Plug

SKU: 1519430000 Download PDF

Variant:
  • 1519430000 - OMNIMATE 45mm Black Housing Sample Kit with Female Plug
Now $55.22
BEFORE   $0.00 Now $55.22
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAMPLE CH20M45 20/02 from the OMNIMATE Housing series, this versatile electronics enclosure sample boasts a striking black finish Tailored for developers, the kit includes essential components such as a female plug and a fully enclosed housing equipped with advanced connection technology With a width of 45 mm, this sample is designed to meet your project needs effectively.

Features and Benefits:

    •Sample kit for developers.

    •Includes individual parts, including a female plug and a complete enclosure.

    •Installed state protection degree IP20.

Specifications:

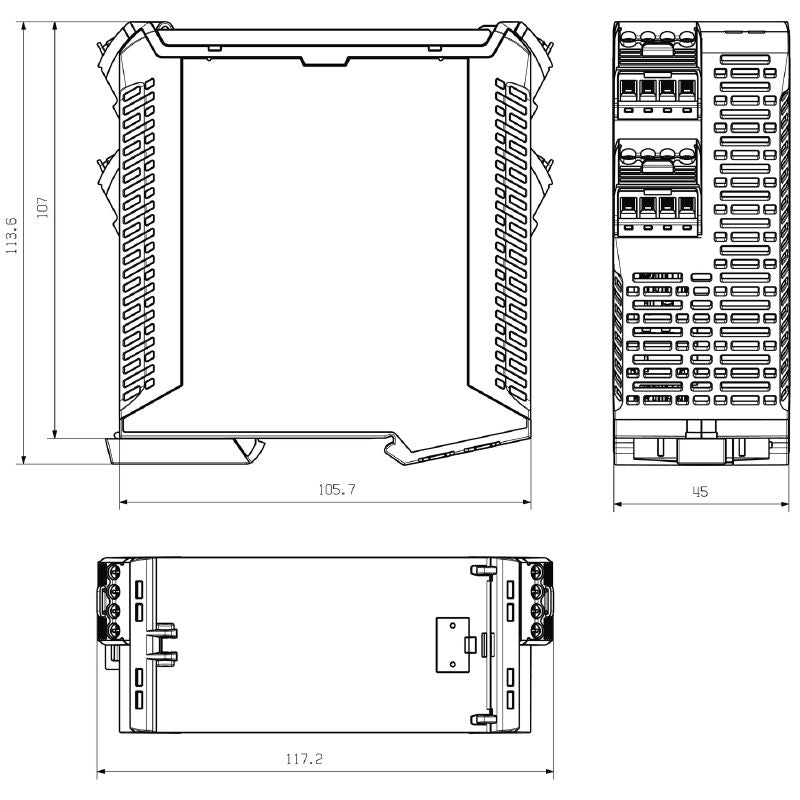

 Depth: 113.6 mm
 Height: 117.2 mm
 Width: 45 mm
 Rated current, max. number of poles (Tu=20°C): 10 A
 Rated voltage for surge voltage class / pollution degree II/2: 400 V
 Basic material: Plastic
 Comparative Tracking Index (CTI): 400 ≤ CTI <600
 Insulating material: PA 66 GF 30
 UL 94 flammability rating: V-0
 Number of connection levels: 2
 Number of poles: 4
 Wire connection method: Clamping yoke connection
 Stripping length: 8 mm
 Tightening torque, min.: 0.4 Nm
 Tightening torque, max.: 0.5 Nm
 Clamping range, min.: 0.13 mm²
 Clamping range, max.: 2.5 mm²
 Wire connection cross section AWG, min.: AWG 26
 Wire connection cross section AWG, max.: AWG 14
