1989190000 - 5.00mm 4-Pole Female PCB Connector, 180° Push-In Design (Pack of 78)

1989190000 - 5.00mm 4-Pole Female PCB Connector, 180° Push-In Design (Pack of 78)

SKU: 1989190000   Download PDF

Select a Variant:
  • 1989190000 - 5.00mm 4-Pole Female PCB Connector, 180° Push-In Design (Pack of 78)
Qty:
Now $407.38   Web pricing policy
BEFORE   $0.00 Now $407.38 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Discover the convenience of our female plug PCB connector, designed with a 500 mm pitch and featuring 4 poles in a 180° orientation This connector employs a push-in connection method and is securely packaged in a sturdy box It meets RoHS standards and proudly holds a UL certification (E60693), ensuring safety and compliance Versatile in its application, it accommodates a wide range of wire sizes from 0.

2 to 25 mm², making it an ideal choice for various electronic projects.

Features and Benefits:

    •Compliant with RoHS requirements.

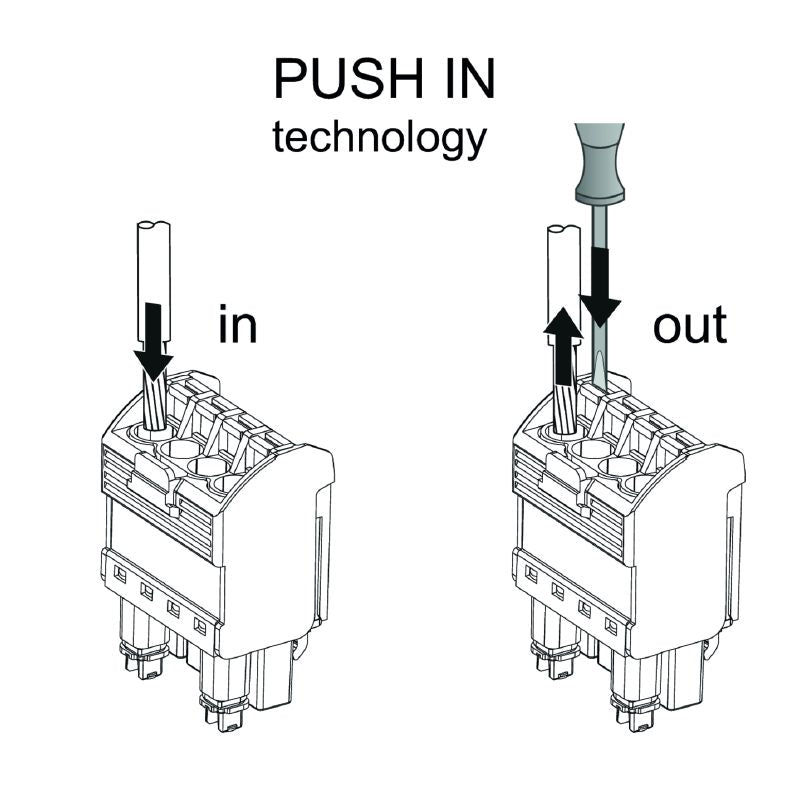

    •Push-in connection method for easy installation.

    •Touch-safe protection to prevent accidental contact.

    •Box packaging for secure delivery.

Specifications:

 UL Voltage Rating 300 V / 10 A
 IEC Voltage Rating 400 V / 10 A
 Line Connections AWG 26 - AWG 14
 Dimensions 32.4 mm depth, 16.4 mm height, 22.5 mm width
 Operating Temperature Range -40 °C to 120 °C
 Insulating Material PA 66 GF 30
 Protection Degree IP20
 Rated Current 10 A
 Number of Poles 4
 Volume Resistance ≤5 mΩ
 Stripping Length 10 mm
 Pin Series Quantity 1
 Pitch 5 mm
 Plugging Cycles 25
