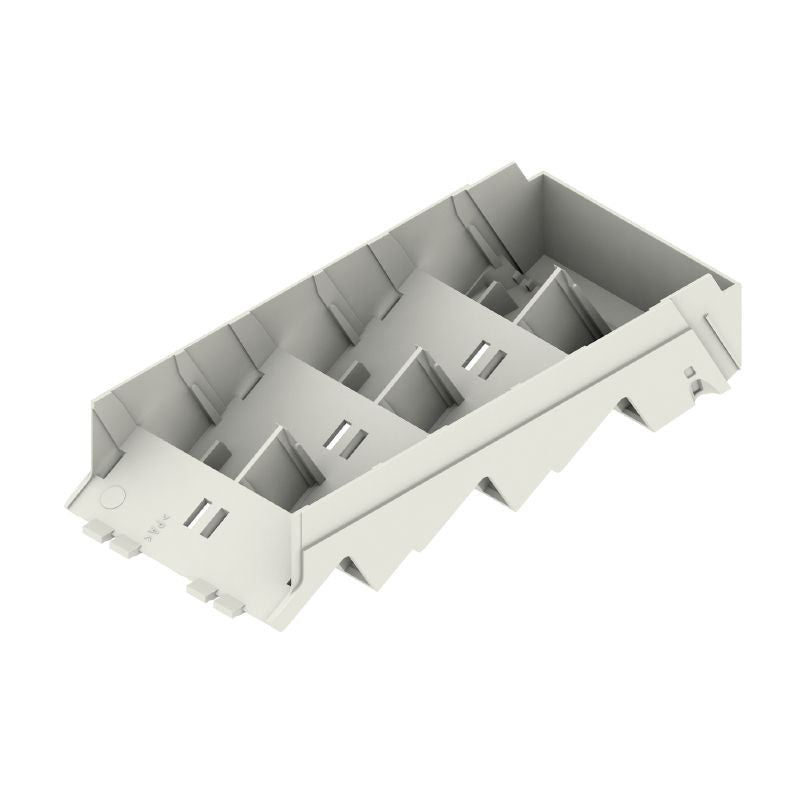

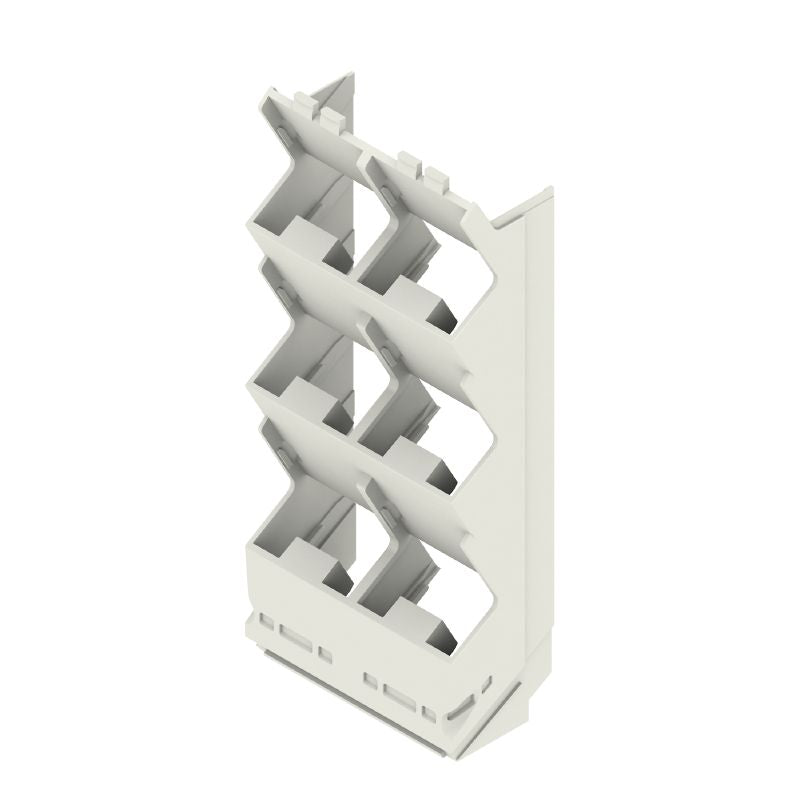

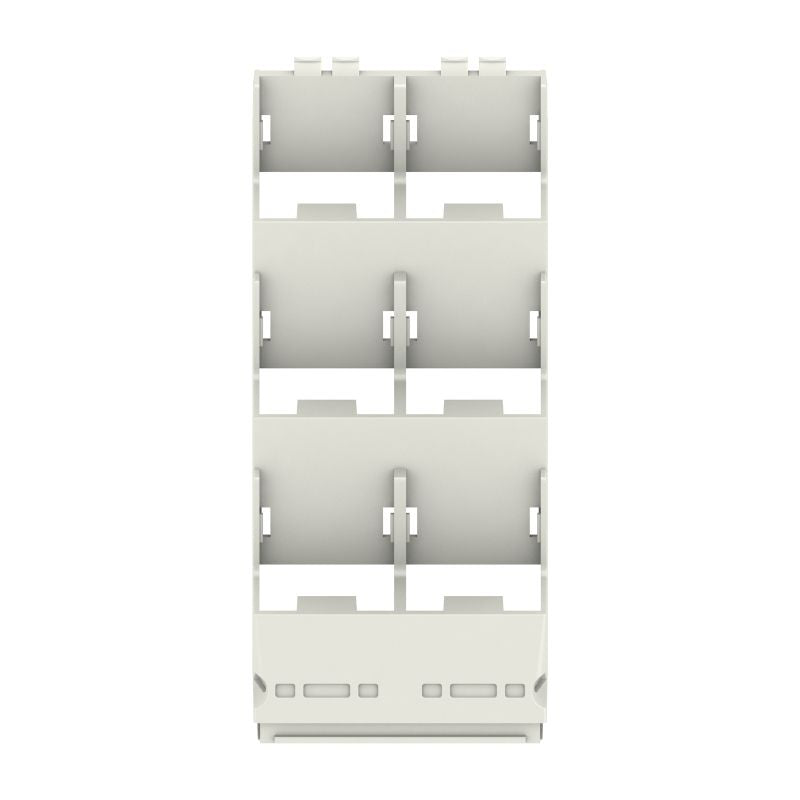

1444330000 - 45mm Light Grey OMNIMATE Side Element, IP20 Protection (Pack of 6)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

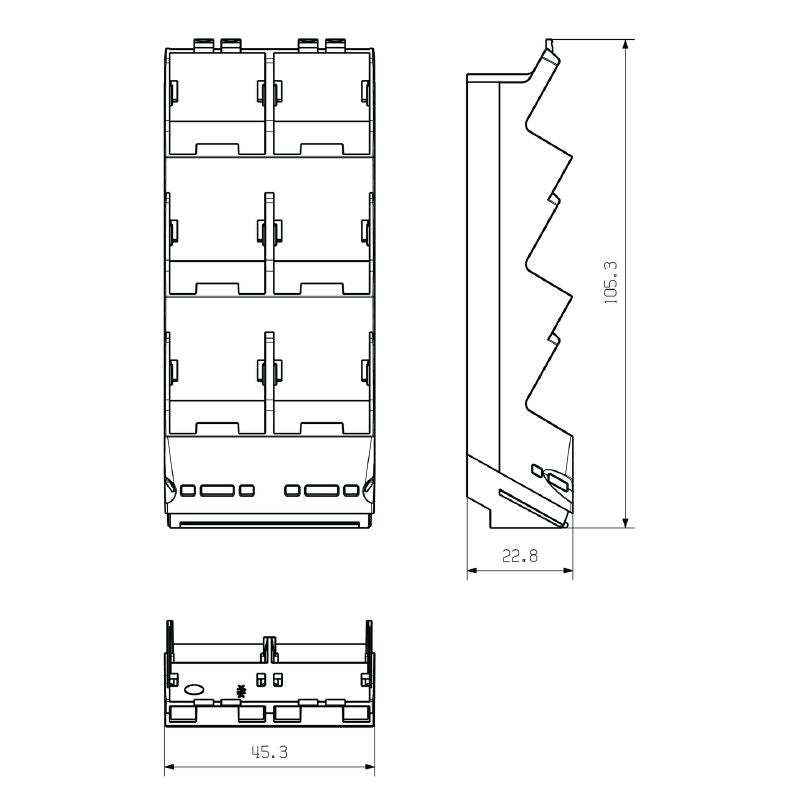

Introducing the CH20M45 S 3P/3P LGY 2018 side element from the OMNIMATE Housing collection, a versatile component in a sophisticated light grey hue With a compact width of 45 mm, it meets RoHS standards and is constructed from high-quality plastic with an untreated surface This product is built to withstand extreme conditions, featuring an operating temperature range from -40 to 120 °C, and an ambient temperature range of -25 to 85 °C, while efficiently handling humidity levels of 5% to 93% at 40 °C without condensation.

Equipped with three connection levels, this side element can accommodate up to 24 poles and provides six slots for female plugs It does not include encapsulation and boasts an IP20 protection rating, making it reliable for various applications.

Features and Benefits:

•Compliant with RoHS and does not contain any SVHC above 0.1 wt%.

•Insulating material made of PA 66 GF 30.

•UL 94 flammability rating of V-0.

•Comparative Tracking Index (CTI) of 600 or higher.

•Protection degree IP20 in installed state.

Specifications:
