1988380000 - 5mm PCB Female Connector, 2-Pole, 180° Outlet (Pack of 150)

SKU: SKU: 1988380000 Download PDF

Variant:

1988380000 - 5mm PCB Female Connector, 2-Pole, 180° Outlet (Pack of 150)

Now $492.80

~~BEFORE $0.00~~ Now $492.80

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a robust PCB plug-in connector, specifically designed as a female plug featuring an efficient 500 mm pin spacing This two-pole connector offers a 180° conductor outlet direction for versatile application The PUSH IN connection method comes with an actuator for easy use, and it is conveniently packaged in a box for efficient storage and transport.

Features and Benefits:

•RoHS compliant.

•Touch-safe protection per DIN VDE 57 106.

•Can be coded.

•Insulating material is PA 66 GF 30.

•Suitable for various wire connection methods including stranded and flexible conductors.

Specifications:

Rated Voltage (IEC)	400 V
Rated Current (IEC)	10 A

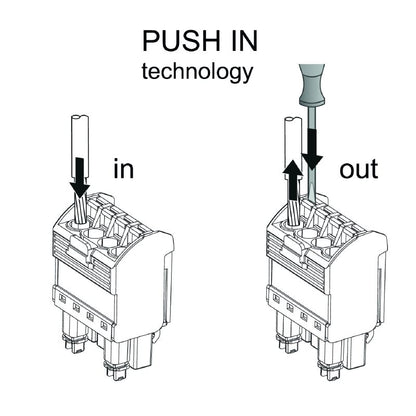

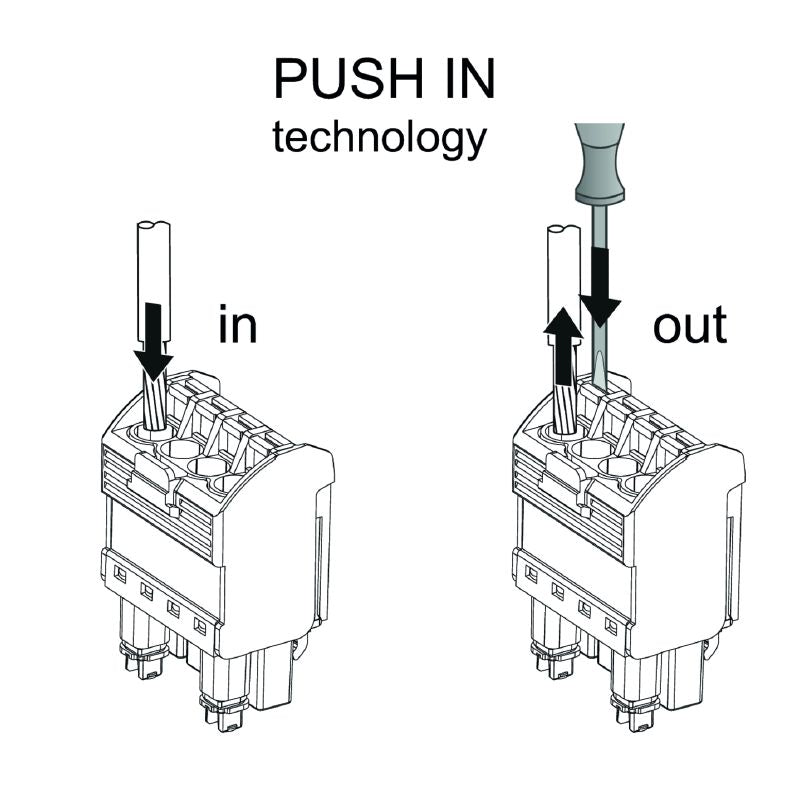

Wire Connection Method	PUSH IN with actuator
Rated Cross-section	2.5 mm²
Protection Degree	IP20
Volume Resistance	≤5 mΩ
Plugging Cycles	25
Storage Temperature (Min)	-40 °C
Storage Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Operating Temperature (Max)	120 °C
Pitch in mm	5 mm
Conductor Outlet Direction	180°
Number of Poles	2
