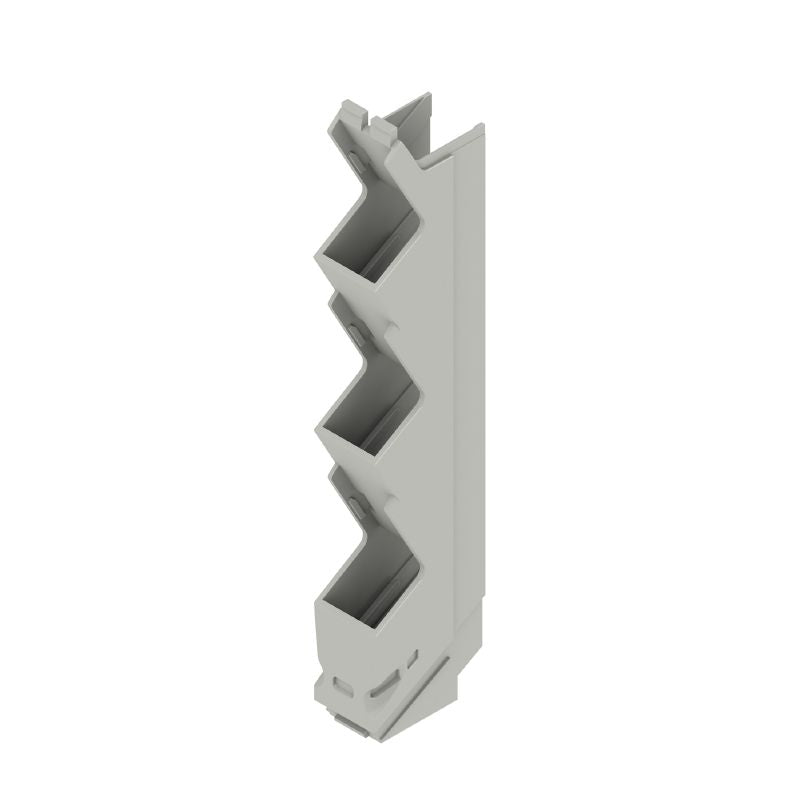

2554690000 - Agate Grey OMNIMATE Side Element, 105.5mm Depth, RoHS Compliant (Pack of 14)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your projects with the CH20M12 S PPP AGY 3747, a side component from the OMNIMATE Housing series This element showcases a sophisticated Agate Grey hue and measures 125 mm in width Compliant with RoHS regulations, it is also free from any SVHC substances exceeding 01 wt% It operates efficiently in a temperature range of -40 to 120 °C and can endure ambient conditions from -25 °C to 85 °C, with a relative humidity tolerance of 5 to 93%.

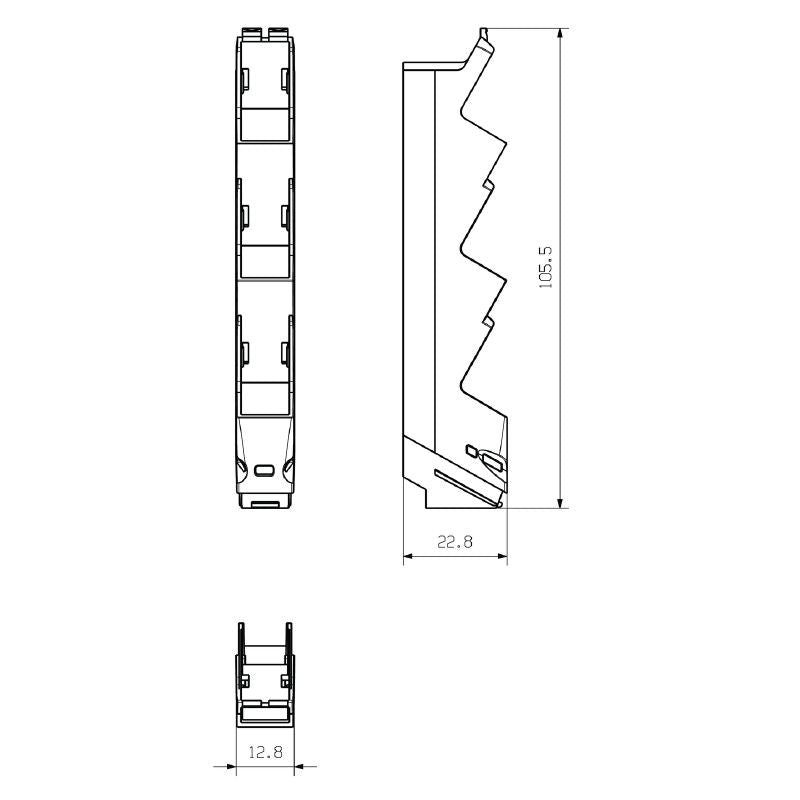

Crafted from PA 66 GF 30 plastic, it boasts a comparative tracking index (CTI) of 600 or higher The product is designed without encapsulation options, is rated IP20 upon installation, and features three connection levels accommodating up to six poles and three slots for female plugs Its dimensions are 1055 mm in depth, 228 mm in height, and 125 mm in width, with a total weight of 622 g, making it a reliable choice for various electrical applications.

Features and Benefits:

•RoHS compliant.

•6.22 g net weight.

•IP20 protection degree.

•Number of connection levels: 3.

•Maximum number of poles: 6.

•Number of slots for female plugs: 3.

•Operating temperature range: -40 to 120 °C.

•Ambient temperature range: -25 to 85 °C.

•Relative humidity: 5 - 93% no condensation.
