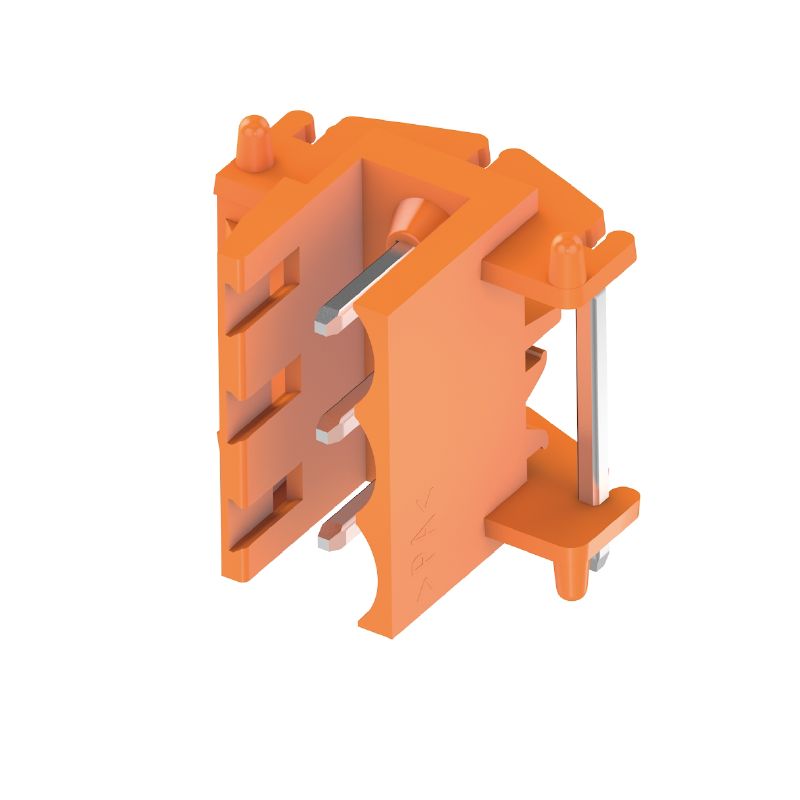

7924920000 - 5.08mm 3-Pole THT PCB Connector with Tinned Pins (Pack of 100)

7924920000 - 5.08mm 3-Pole THT PCB Connector with Tinned Pins (Pack of 100)

SKU: 7924920000 Download PDF

Variant:
  • 7924920000 - 5.08mm 3-Pole THT PCB Connector with Tinned Pins (Pack of 100)
Now $193.62
BEFORE   $0.00 Now $193.62
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

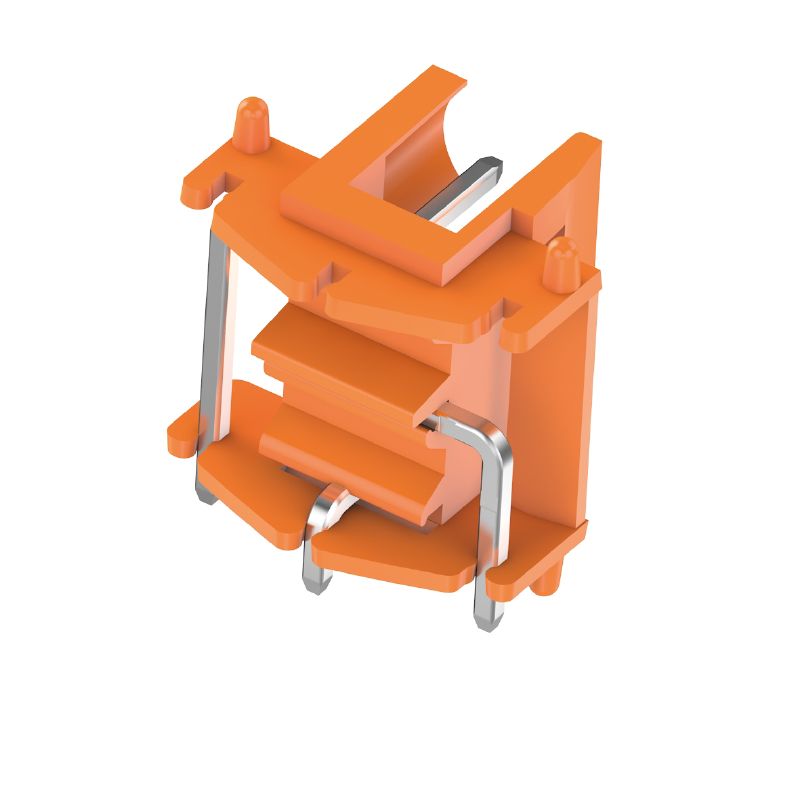

Enhance your electronic projects with this versatile PCB plug-in connector Designed specifically for male headers, it features an open side for efficient THT solder connections With a 508 mm pitch and three poles arranged at a 180° angle, this connector ensures reliable performance Each solder pin measures 24 mm in length and comes tinned, making it suitable for a variety of applications Offered in a classic black color, it is conveniently packaged in a box for easy storage and handling.

Features and Benefits:

    •3 poles configuration.

    •180° outgoing elbow.

    •Solder pin length tolerance of +0.1 / -0.3 mm.

    •Can be coded.

    •Compliant with RoHS and REACH regulations.

Specifications:

 IEC Voltage Rating 400 V / 16 A
 UL Voltage Rating 300 V / 12.5 A
 Dimensions Depth 16.2 mm, Height 13.2 mm, Width 17 mm
 Storage Temperature Range -40 °C to 70 °C
 Operating Temperature Range -50 °C to 100 °C
 Protection Degree IP20
 Insulating Material PA
 Contact Material Copper alloy
 Contact Surface tinned
 Number of Solder Pins per Pole 1
 Rated Current {'at 20°C': '16 A', 'at 40°C': '13 A'}
 Rated Impulse Voltage 4 kV
 Compliance tested according to IEC 60664-1 and IEC 61984
 Module Specification IPC conformity
