1243030000 - CH20M Modular Black Housing, 22.5mm Width, RoHS Compliant (Pack of 10)

1243030000 - CH20M Modular Black Housing, 22.5mm Width, RoHS Compliant (Pack of 10)

SKU: 1243030000   Download PDF

Select a Variant:
  • 1243030000 - CH20M Modular Black Housing, 22.5mm Width, RoHS Compliant (Pack of 10)
Qty:
Now $44.37   Web pricing policy
BEFORE   $0.00 Now $44.37 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

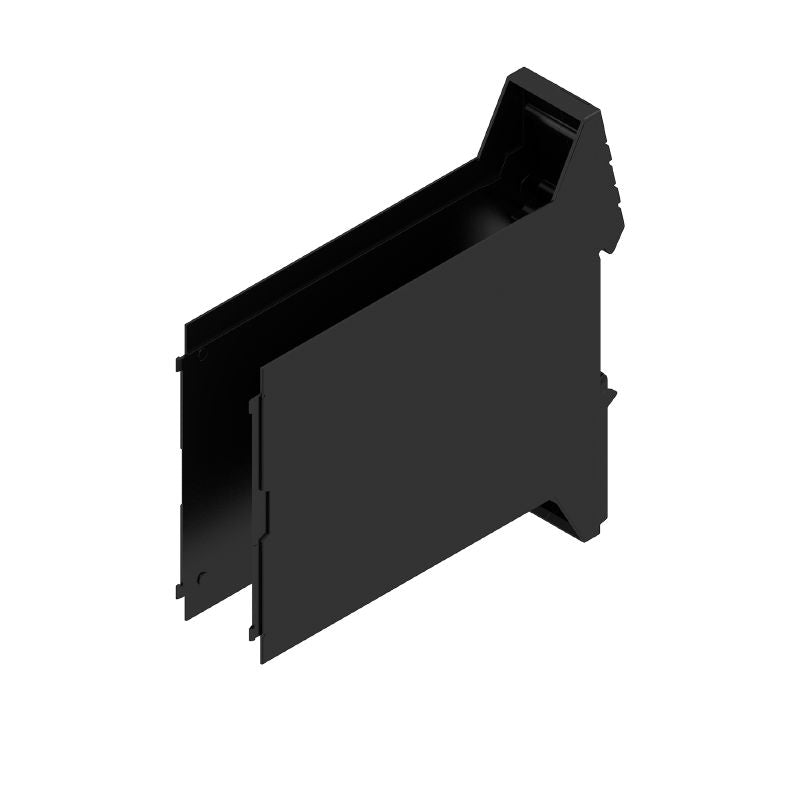

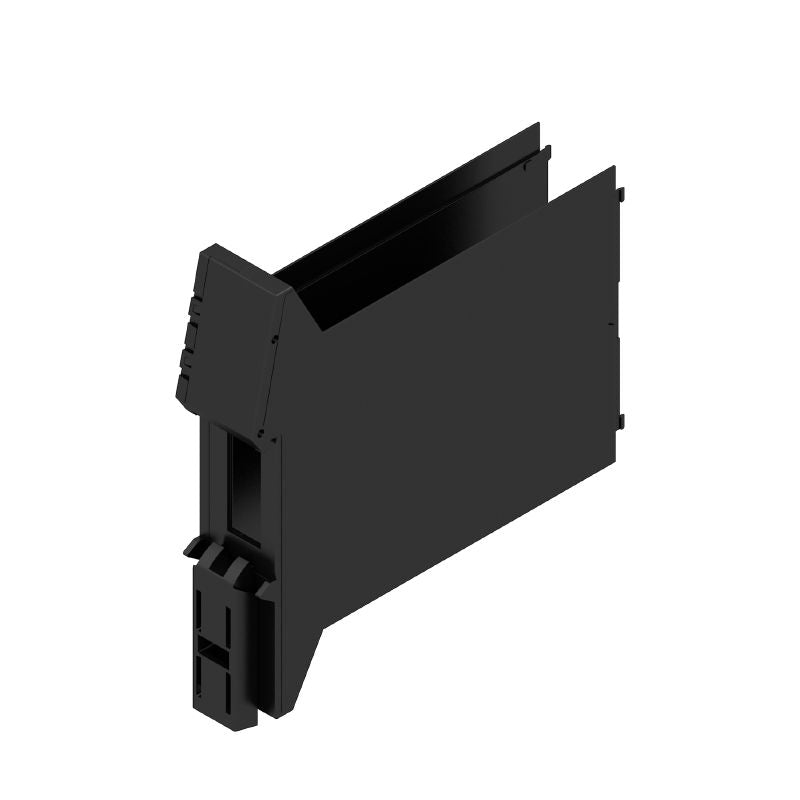

Introducing the OMNIMATE Housing series CH20M, a versatile modular housing solution in a sleek black finish This product features a base element with a specifically designed recess in the detent foot area, accommodating a bus contact for enhanced functionality With a compact width of 225 mm, this housing also meets essential product standards, including RoHS compliance, ensuring safety and environmental consideration.

Features and Benefits:

    •Suitable for various mounting options with a TS 35 rail.

    •IP20 protection degree when installed.

    •Equipped with a maximum of 24 poles.

    •Capable of supporting up to 6 female connector slots.

    •Constructed from plastic with a CTI of 600.

    •No encapsulation option available.

    •Double-sided PCB assembly support.

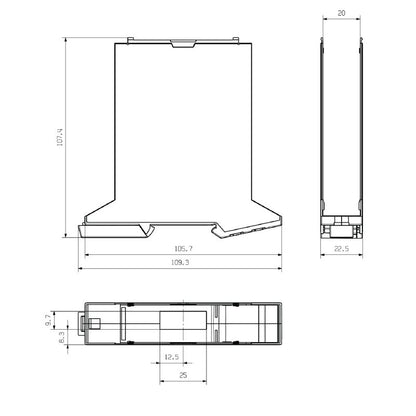

Specifications:

 Depth 108 mm
 Height 109.3 mm
 Width 22.5 mm
 Ambient temperature -25 °C to 85 °C
 Operating temperature range -40 to 120 °C
 Humidity 5 - 93% relative humidity
 Material Plastic
 Insulating material PA 66 GF 30
 Flammability rating UL 94 V-0
