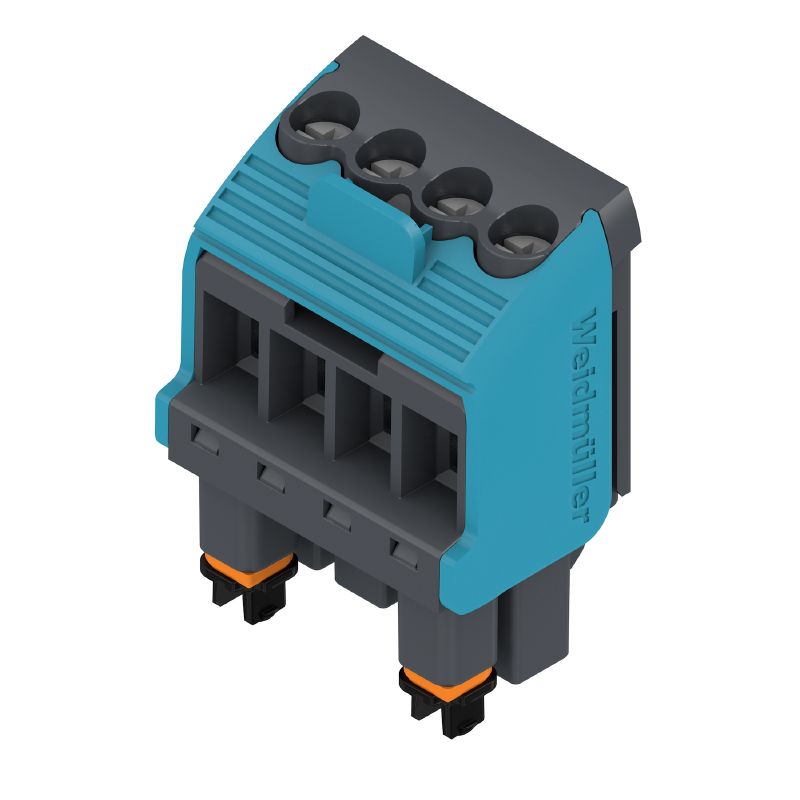

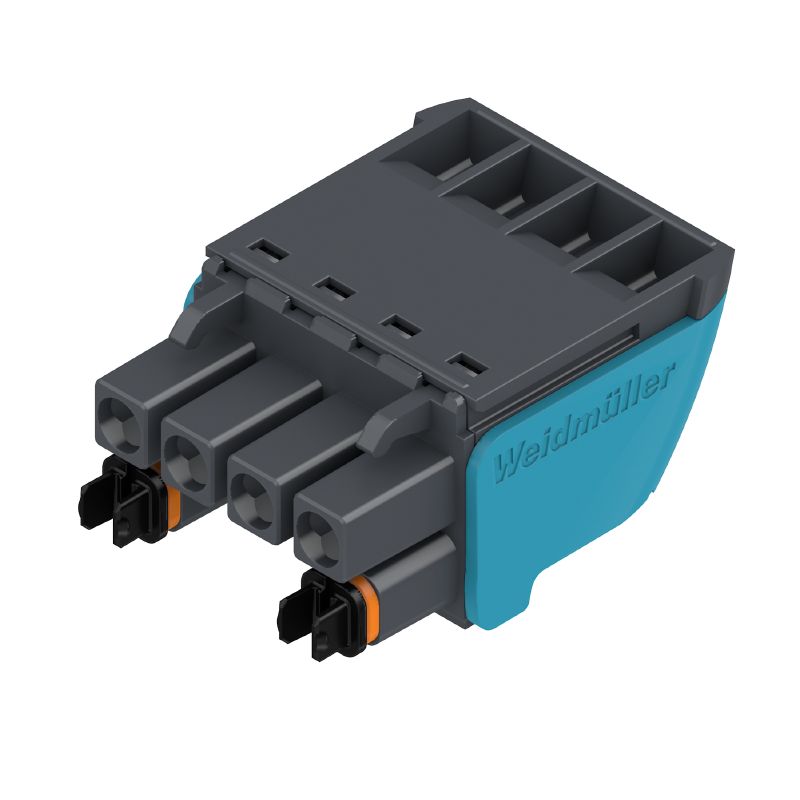

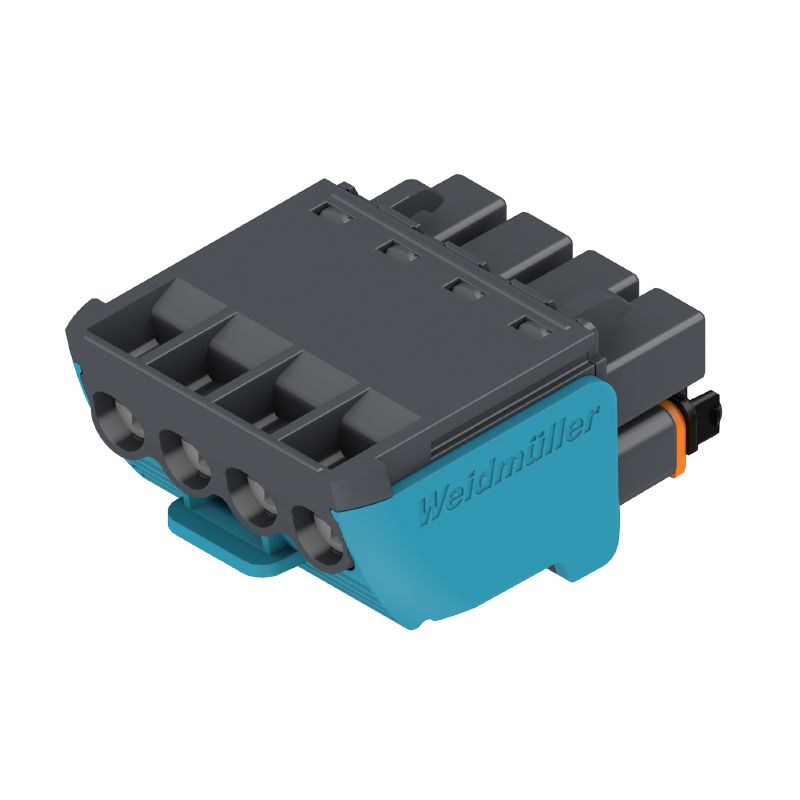

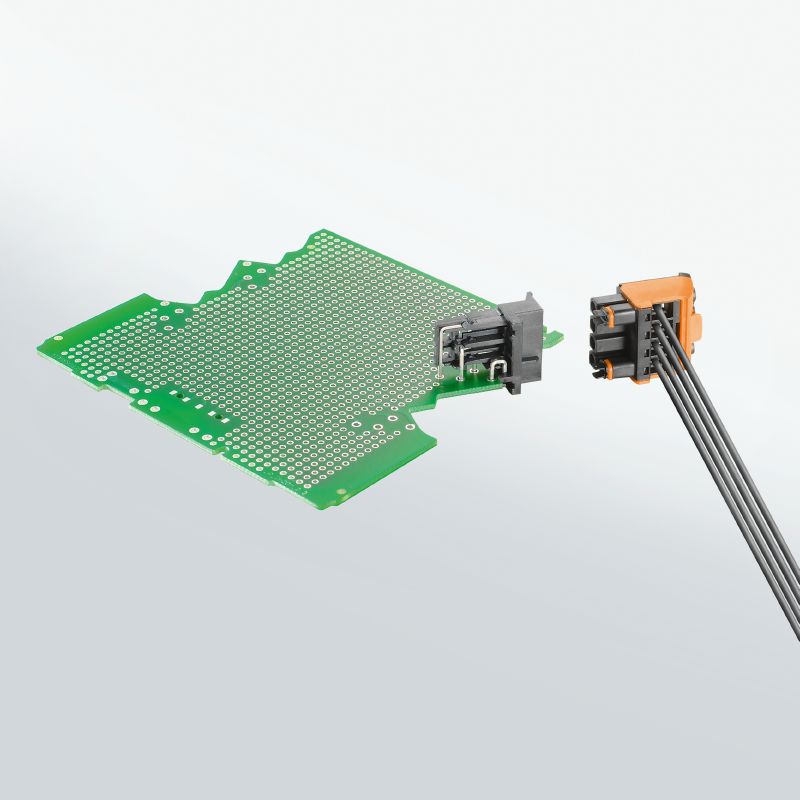

1372580000 - 5.00 mm PCB Female Connector, 90° Angle, 4 Poles (Pack of 78)

Description:

Introducing the BHZ 500/04/90LH GGY/BL PCB plug-in connector, a reliable component that features a female plug with a 500 mm pitch, positioned at a 90° angle This connector boasts four poles and employs a secure clamping yoke connection for stability Additionally, it meets RoHS standards and is certified with the UL number E60693 Capable of handling IEC ratings of up to 400 V and 10 A, it accommodates wire sizes from 0.

2 to 25 mm², as well as UL-rated wires from AWG 26 to AWG 12 with a maximum of 300 V Conveniently packaged in a box, this connector belongs to the OMNIMATE Housing series CH20M, making it an excellent choice for various applications.

Features and Benefits:

•Field connection with clamping yoke method.

•With touch-safe protection according to DIN VDE standards.

•Can be coded for secure connections.

•Single row with 4 poles and 90° conductor outlet direction.

•Compatible with wire sizes from AWG 26 to AWG 14.

Specifications:
