2064300000 - 13.7mm Clip-In Foot for DIN Rail, Orange PA 66

2064300000 - 13.7mm Clip-In Foot for DIN Rail, Orange PA 66

SKU: 2064300000   Download PDF

Select a Variant:
  • 2064300000 - 13.7mm Clip-In Foot for DIN Rail, Orange PA 66
Qty:
Now $3.46   Web pricing policy
BEFORE   $0.00 Now $3.46 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

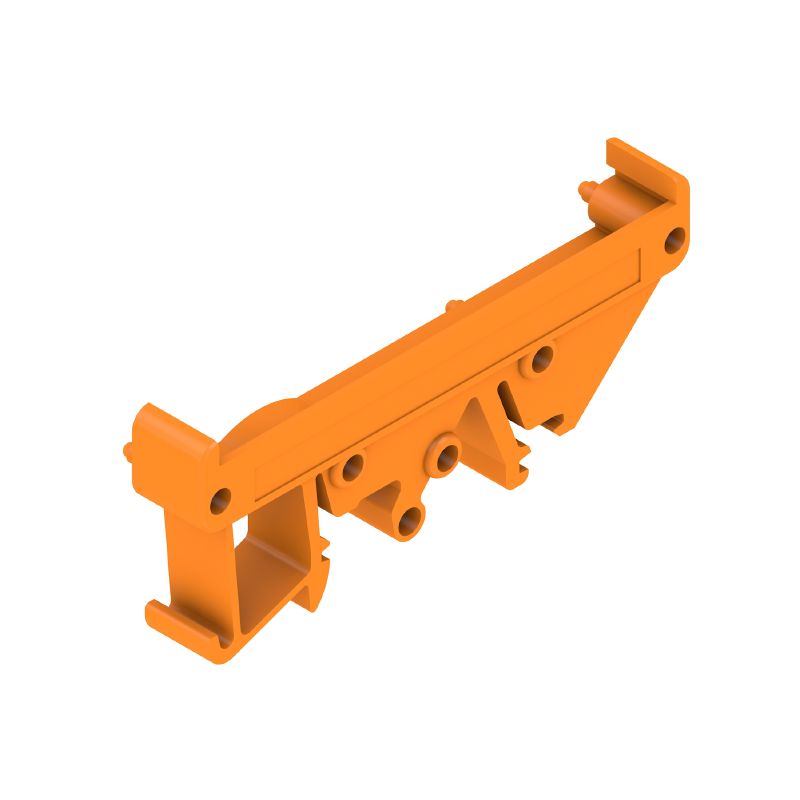

Introducing the RF RS 70 RE/A5/OSG 1665 clip-in foot, engineered specifically for DIN mounting rail installation on the right side This component boasts a compact width of 137 mm and adheres to RoHS guidelines with no exemptions, ensuring it is free of any SVHC at levels above 01 wt% Crafted from PA 66, it features a comparative tracking index (CTI) of 600 and is classified with a V-2 flammability rating.

Additionally, its protection degree is rated at IP00, and it comes in an eye-catching orange color that aligns with RAL 2000 standards Perfect for reliable performance in various applications.

Features and Benefits:

    •RoHS compliant without exemption.

    •CTI of 600.

    •Flammability rating of V-2.

    •IP00 protection degree.

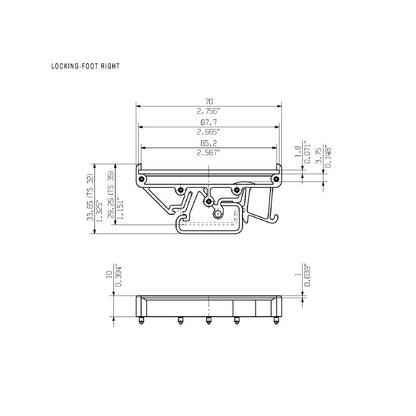

Specifications:

 Depth 28.55 mm
 Height 70 mm
 Width 13.7 mm
 Net weight 5.55 g
 Basic material PA 66
 Insulating material PA 66
 Surface finish untreated
 Encapsulation option No
 GTIN (EAN) 4008190210625
 ETIM 7.0 EC002779
 ETIM 8.0 EC002779
 ETIM 9.0 EC002779
 ETIM 10.0 EC002779
 ECLASS 11.0 27-18-27-92
 ECLASS 12.0 27-18-27-92
 ECLASS 13.0 27-19-06-02
 ECLASS 14.0 27-19-06-02
 ECLASS 15.0 27-19-06-02
