1989090000 - 5mm Pitch PCB Plug Connector, 4 Poles, 180° Angle (Pack of 78)

SKU: SKU: 1989090000 Download PDF

Variant:

1989090000 - 5mm Pitch PCB Plug Connector, 4 Poles, 180° Angle (Pack of 78)

Now $407.38

~~BEFORE $0.00~~ Now $407.38

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

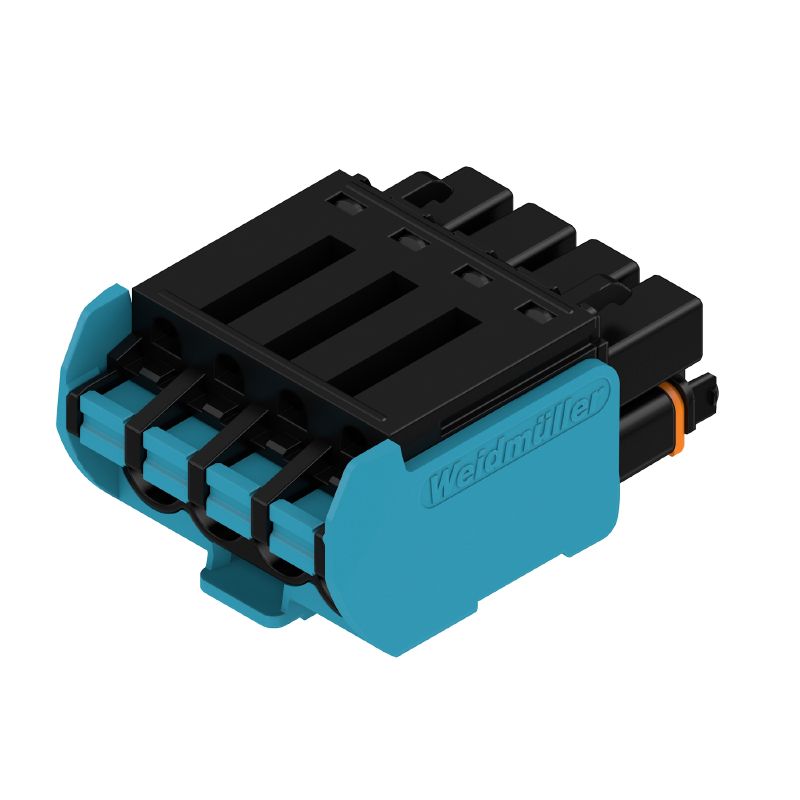

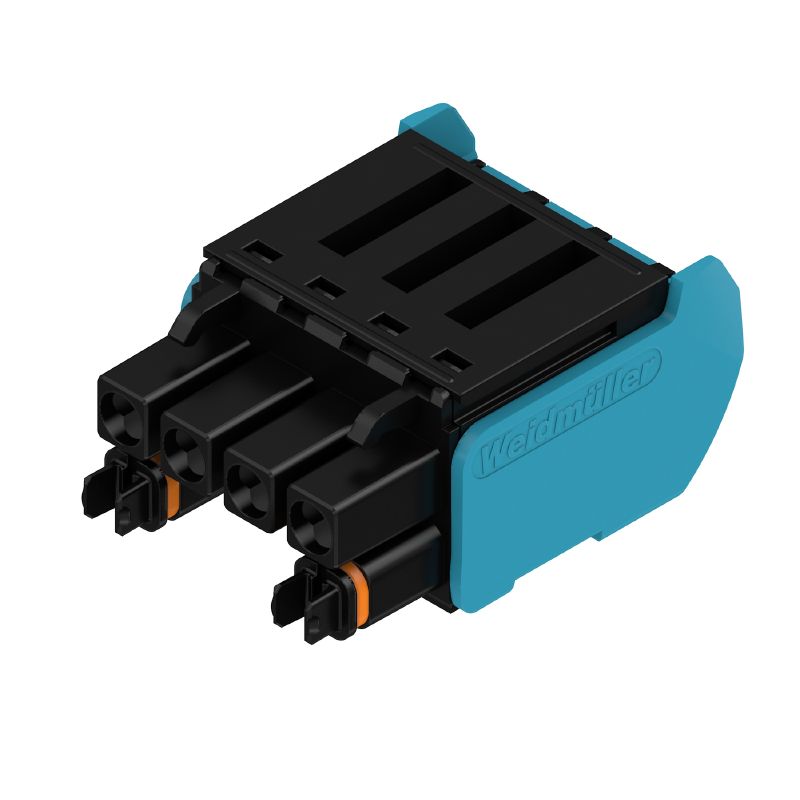

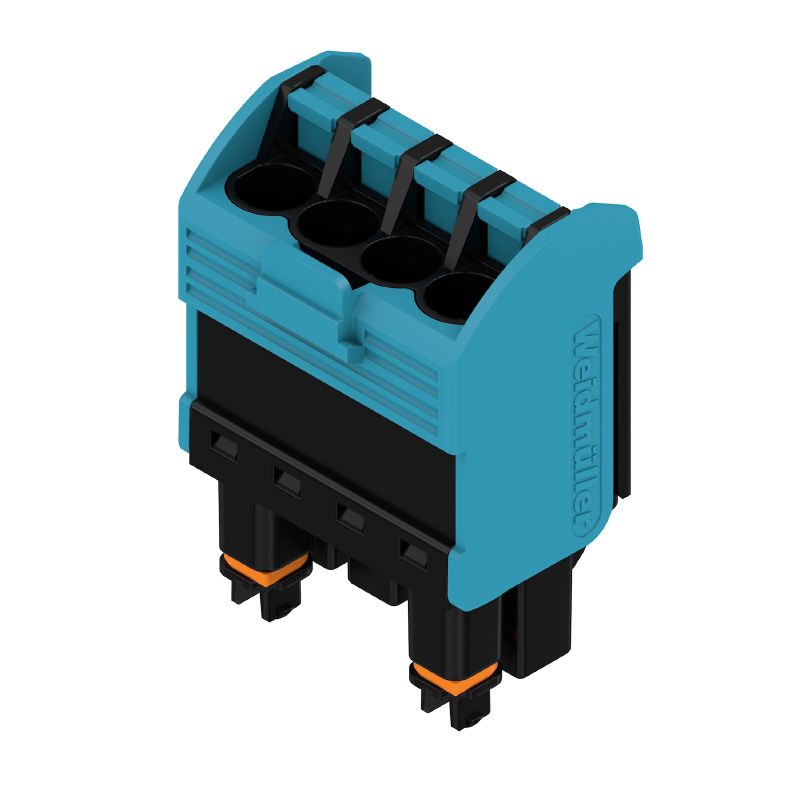

Introducing the BHF 500/04/180LH BK/BL, a reliable female PCB plug-in connector perfect for hassle-free installation With a 500 mm pitch, it boasts four poles set at a 180° angle and utilizes a PUSH IN connection design with an actuator for added ease of use This connector meets ROHS and UE requirements, ensuring quality and safety Packaged conveniently in a protective box, it seamlessly accommodates various wire gauges and cross-section dimensions, making it a versatile choice for your electronic projects.

Features and Benefits:

•Approvals: ROHS Compliant.

•Touch-safe protection acc. to DIN VDE 57 106.

•Plugging cycles: 25.

Specifications:

Product family	OMNIMATE Housing - series CH20M
Type of connection	Field connection

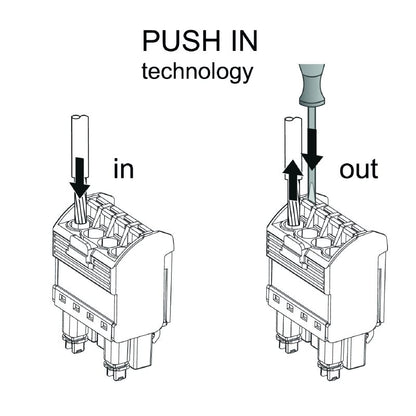

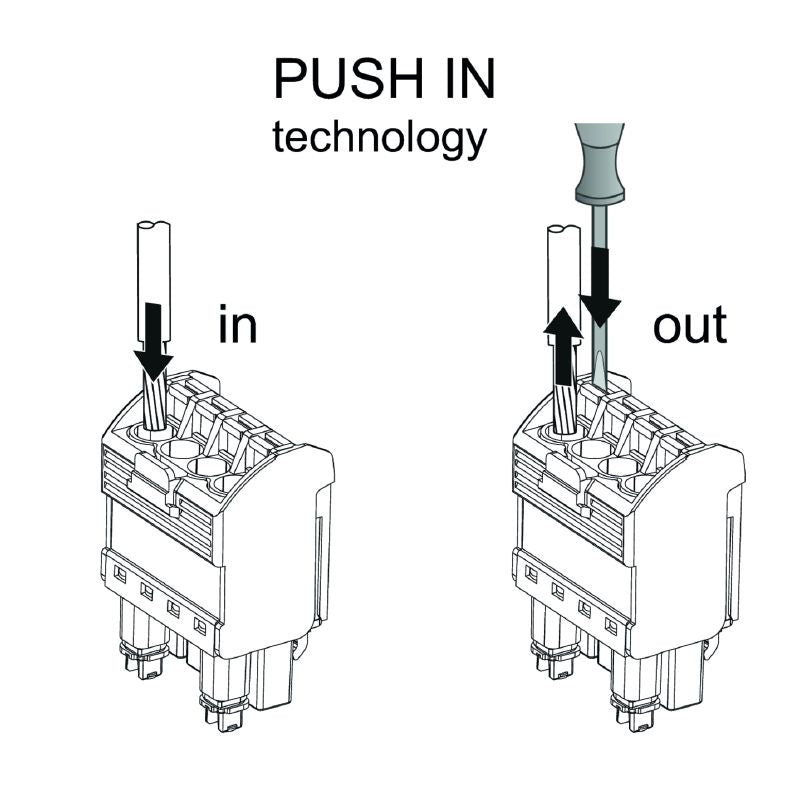

Wire connection method	PUSH IN with actuator
Pitch	5 mm
Conductor outlet direction	180°
Number of poles	4
Rated cross-section	2.5 mm²
Protection degree	IP20
Volume resistance	≤5 mΩ
Material data	{'Insulating material': 'PA 66 GF 30', 'Contact material': 'Copper alloy', 'UL 94 flammability rating': 'V-0'}
Dimensions	{'Depth': '32.4 mm', 'Height': '16.4 mm', 'Width': '22.5 mm'}
Temperature range	{'Storage temperature, min.': '-40 °C', 'Storage temperature, max.': '70 °C', 'Operating temperature, min.': '-40 °C', 'Operating temperature, max.': '120 °C'}
