1372520000 - 5mm 4-Pole Female PCB Connector at 90° Angle (Pack of 78)

1372520000 - 5mm 4-Pole Female PCB Connector at 90° Angle (Pack of 78)

SKU: 1372520000 Download PDF

Variant:
  • 1372520000 - 5mm 4-Pole Female PCB Connector at 90° Angle (Pack of 78)
Now $403.33
BEFORE   $0.00 Now $403.33
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

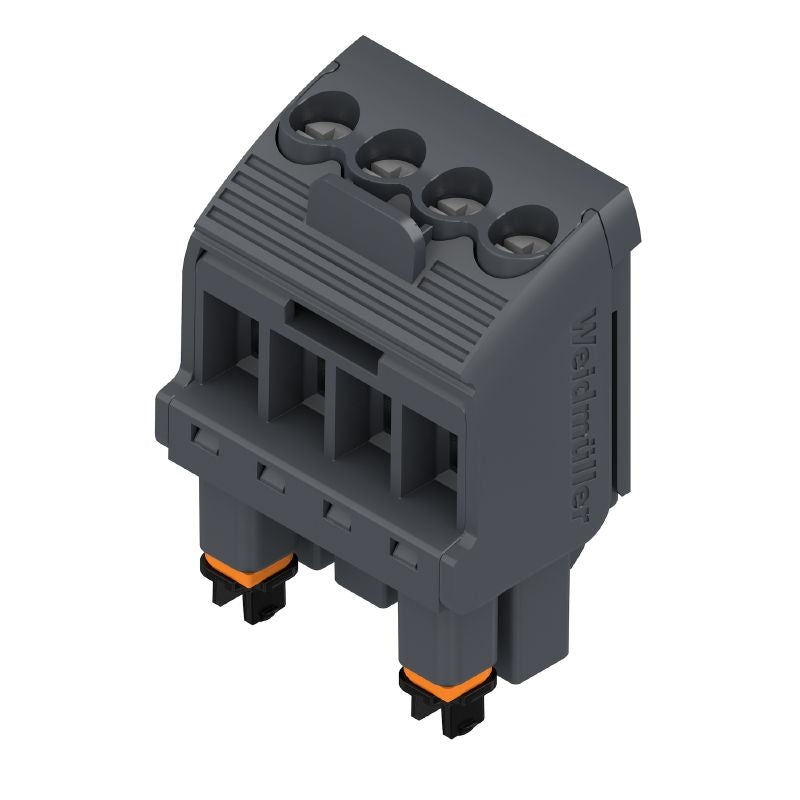

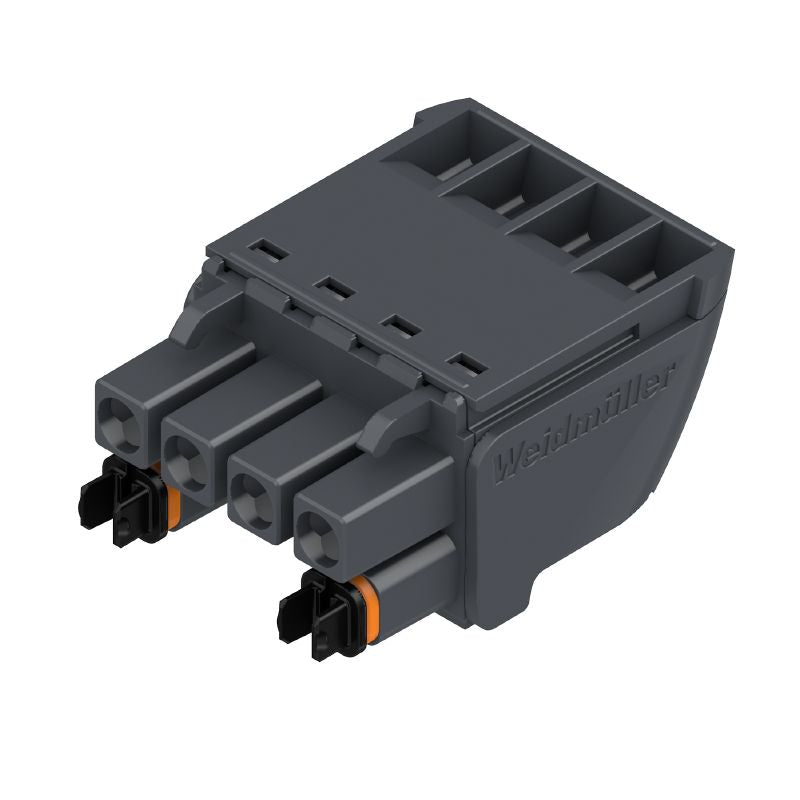

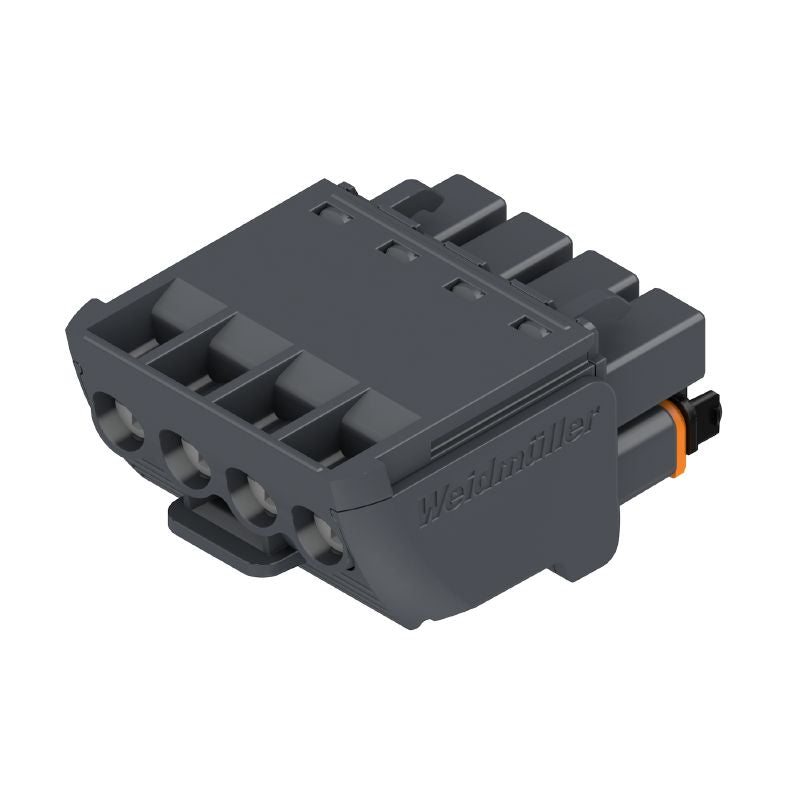

Discover the versatility of the BHZ 500/04/90LH GGY/GGY PCB plug-in connector This female connector features a 500 mm pitch and includes four poles arranged at a 90° angle, ensuring reliable connectivity With a clamping yoke design, this component seamlessly meets various application needs It is recognized under order number 1372520000 and boasts an approval certification number E60693 for compliance with UL standards.

Capable of handling IEC ratings of up to 400V and 10A, it accommodates wire sizes from 02 to 25 mm² Additionally, it complies with UL ratings of 300V and 10A for wire gauges from AWG 26 to AWG 12, making it a dependable choice for your electronic connections.

Features and Benefits:

    •Color: Graphite grey.

    •IP20 protection degree.

    •Touch-safe protection compliant with DIN VDE standards.

    •Clamping yoke connection method.

    •Capable of handling various wire connection cross sections.

Specifications:

 Depth 30.6 mm
 Height 14.5 mm
 Width 22.1 mm
 Number of poles 4
 Pitch 5 mm
 Rated voltage (IEC) 400 V
 Rated current (IEC) 10 A
 Rated current (UL) 10 A
 Operating temperature, min -40 °C
 Operating temperature, max 120 °C
 Storage temperature, min -40 °C
 Storage temperature, max 70 °C
 Tightening torque (max) 0.6 Nm
 Wire connection cross section (min) AWG 26
 Wire connection cross section (max) AWG 12
 Insulating material PA 66 GF 30
 UL 94 flammability rating V-0
 Comparative Tracking Index (CTI) 600 ≤ CTI
 Plugging cycles 25
