8817790000 - Pebble Grey End Plate 22mm for Direct Mounting (Pack of 20)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

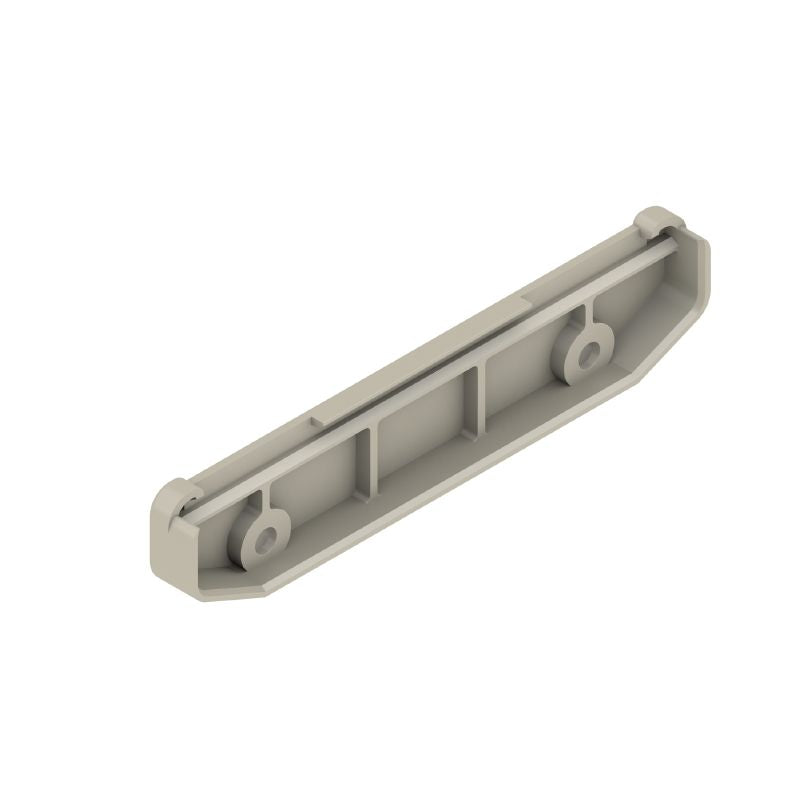

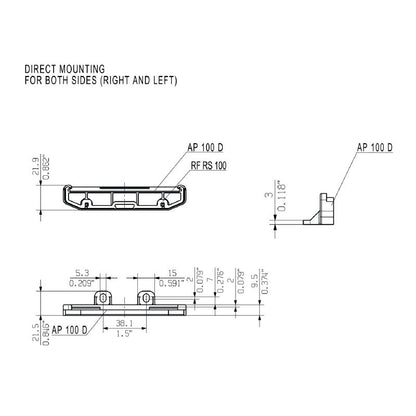

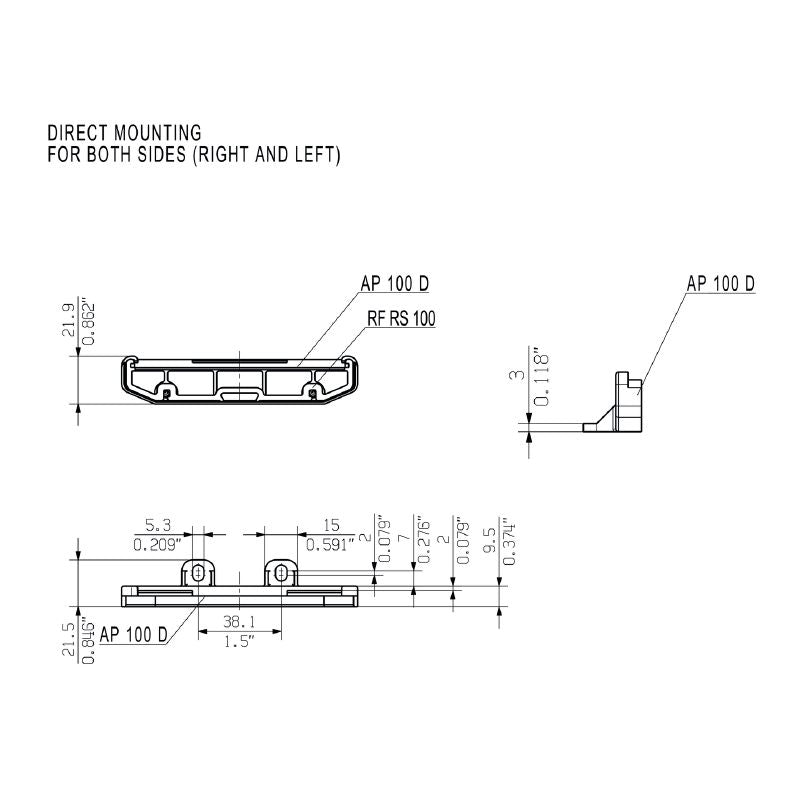

Introducing the AP 100 D GR, a versatile end plate crafted for direct installation on either side This component is showcased in a sleek pebble grey hue and boasts precise measurements of 22mm in width, 219mm in depth, and 1082mm in height With a lightweight design at just 75g, it is constructed from durable PA 66 material, which ensures high electrical safety with a Comparative Tracking Index of 600 or greater.

The insulating properties are also attributed to PA 66, classified within group I for insulating materials Unfinished with a raw surface, this product is rated V-2 for flammability and provides an IP20 protection level when properly installed Additionally, it meets RoHS standards without any exemptions and is categorized under various classifications, including ETIM and ECLASS, emphasizing its high-quality and compliant nature.

Features and Benefits:

•Made from PA 66 material.

•Protection degree of IP20.

•V-2 flammability rating.

•Compliant with RoHS without exemptions.

Specifications:
