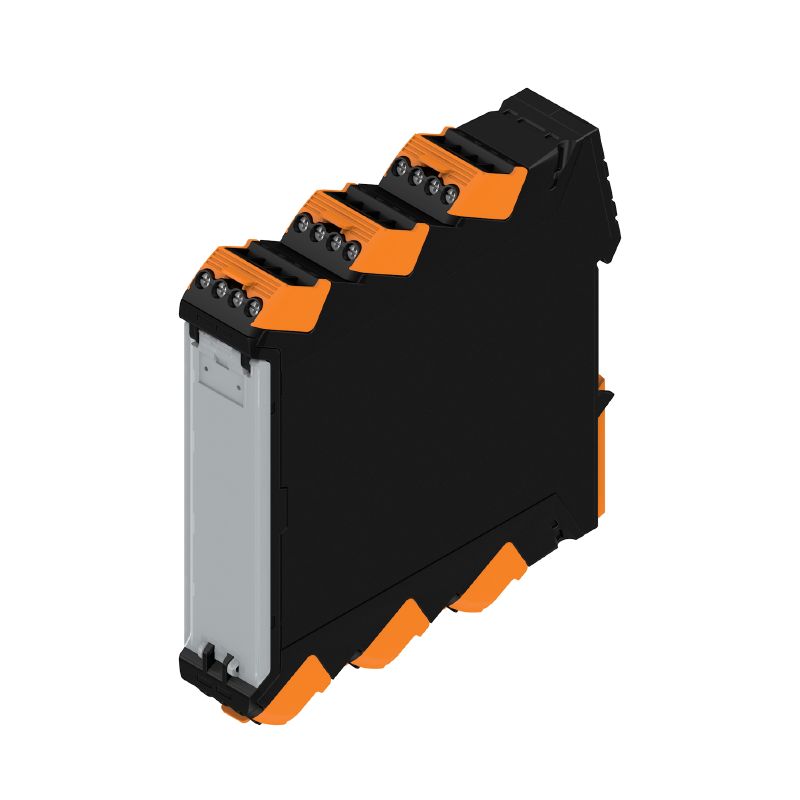

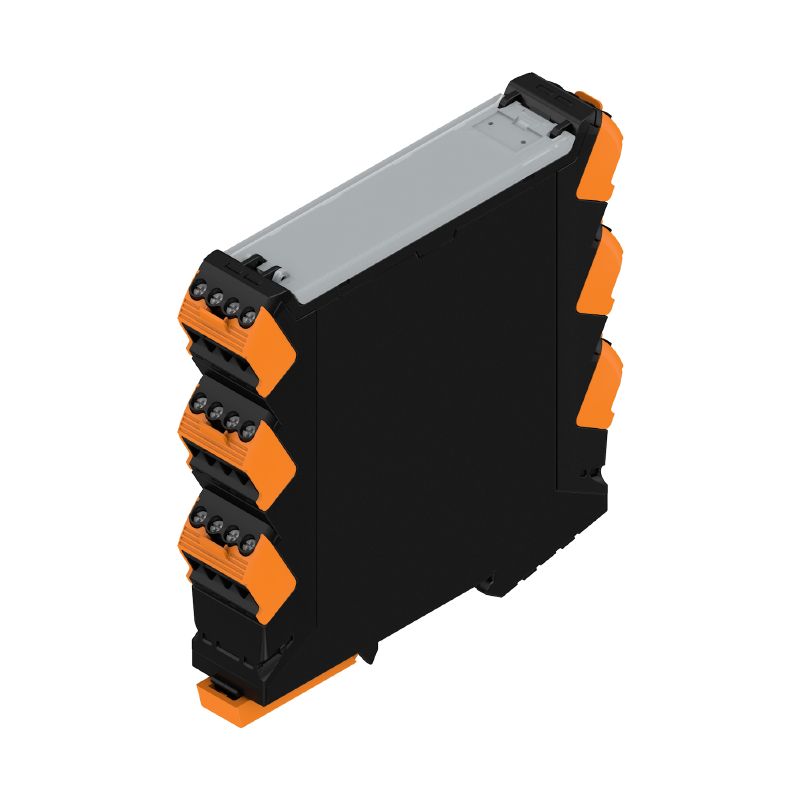

1519370000 - Black OMNIMATE CH20M Kit, 22.5mm Width for Developers

1519370000 - Black OMNIMATE CH20M Kit, 22.5mm Width for Developers

SKU: 1519370000   Download PDF

Select a Variant:
  • 1519370000 - Black OMNIMATE CH20M Kit, 22.5mm Width for Developers
Qty:
Now $57.51   Web pricing policy
BEFORE   $0.00 Now $57.51 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Explore the versatility of the OMNIMATE Housing series CH20M sample kit, featuring a sophisticated black finish This kit includes essential components such as a female plug and a comprehensive enclosure tailored for connection technology With dimensions of 225 mm in width, this product is created specifically for developers to facilitate their projects Perfect for those seeking reliable electronic housing solutions.

Features and Benefits:

    •Includes a complete enclosure and individual parts.

    •Designed for developers.

    •RoHS compliant without exemption.

    •Encapsulation option is not available.

    •Flip cover is mountable.

    •Marker is integrable.

Specifications:

 Depth (mm) 113.6
 Height (mm) 117.2
 Width (mm) 22.5
 Rated current max (at 20°C) 10 A
 Rated current max (at 40°C) 9 A
 Rated voltage for surge voltage class II/2 400 V
 Rated impulse voltage class II/2 250 kV
 Material Plastic
 Insulating material PA 66 GF 30
 Protection degree IP20 in installed state
 Number of connection levels 3
 Number of poles 4
 Wire connection method Clamping yoke connection
 Clamping range (min) 0.13 mm²
 Clamping range (max) 2.5 mm²
 Stripping length 8 mm
 UL 94 flammability rating V-0
