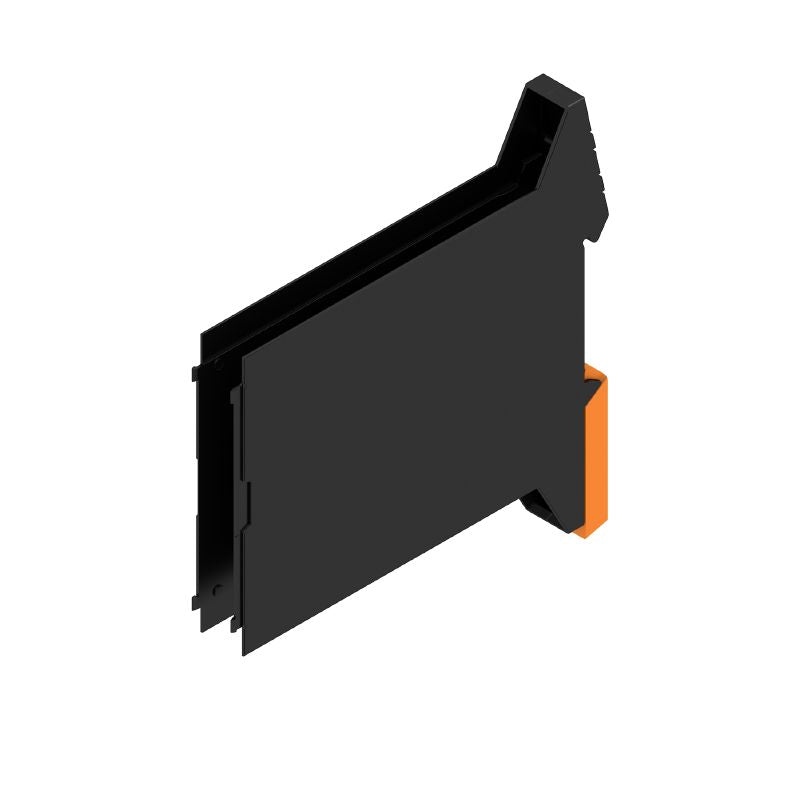

1176980000 - 12.5mm Black Modular Housing with BUS Contact Recess (Pack of 14)

1176980000 - 12.5mm Black Modular Housing with BUS Contact Recess (Pack of 14)

SKU: 1176980000 Download PDF

Variant:
  • 1176980000 - 12.5mm Black Modular Housing with BUS Contact Recess (Pack of 14)
Now $75.91
BEFORE   $0.00 Now $75.91
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

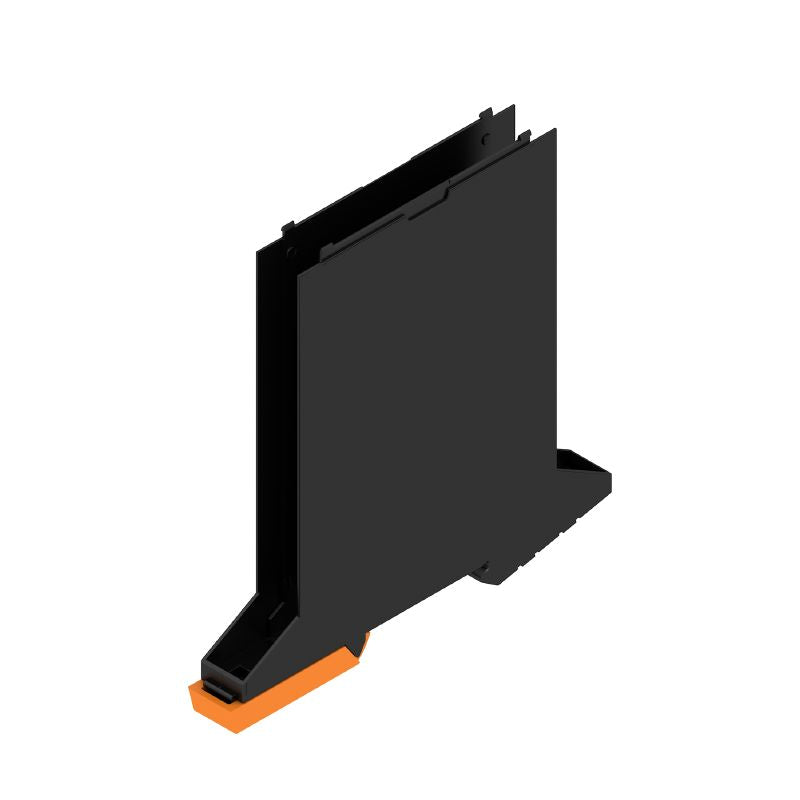

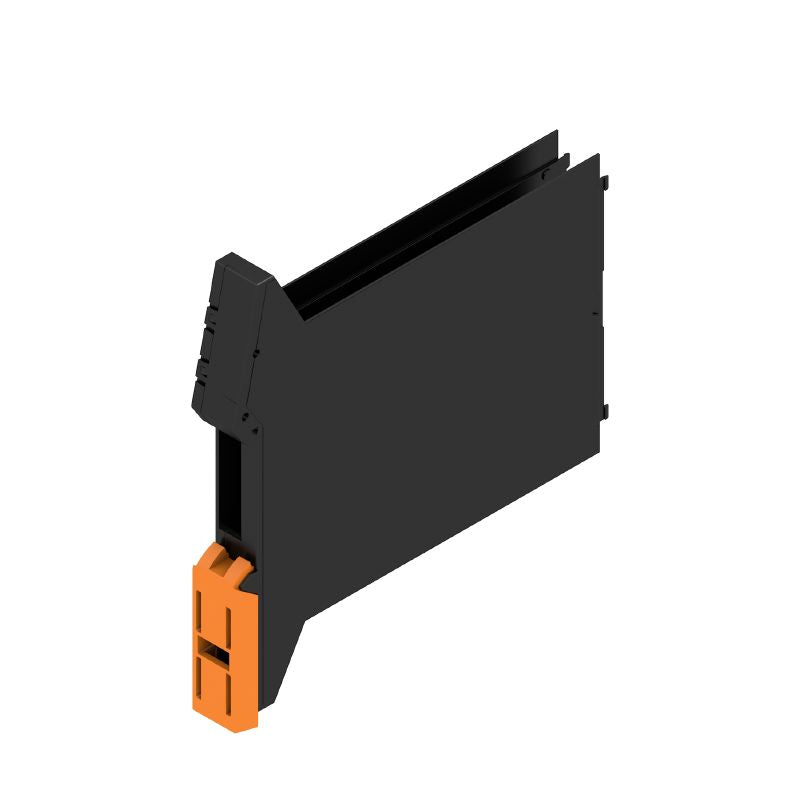

Introducing the CH20M12 B BUS BK/OR 2010, a versatile modular unit designed for optimal functionality It boasts a sleek black OMNIMATE housing that features a base element and a specialized recessed area in the detent foot for easy integration of BUS contacts With a compact width of 125 mm, this component is perfect for a variety of applications.

Features and Benefits:

    •Modular housing design.

    •Protection degree IP20 when installed.

    •Compatible with 6 female connectors in max assembly configuration.

    •Double-sided PCB assembly.

    •Can accommodate up to 12 poles.

    •No encapsulation option.

Specifications:

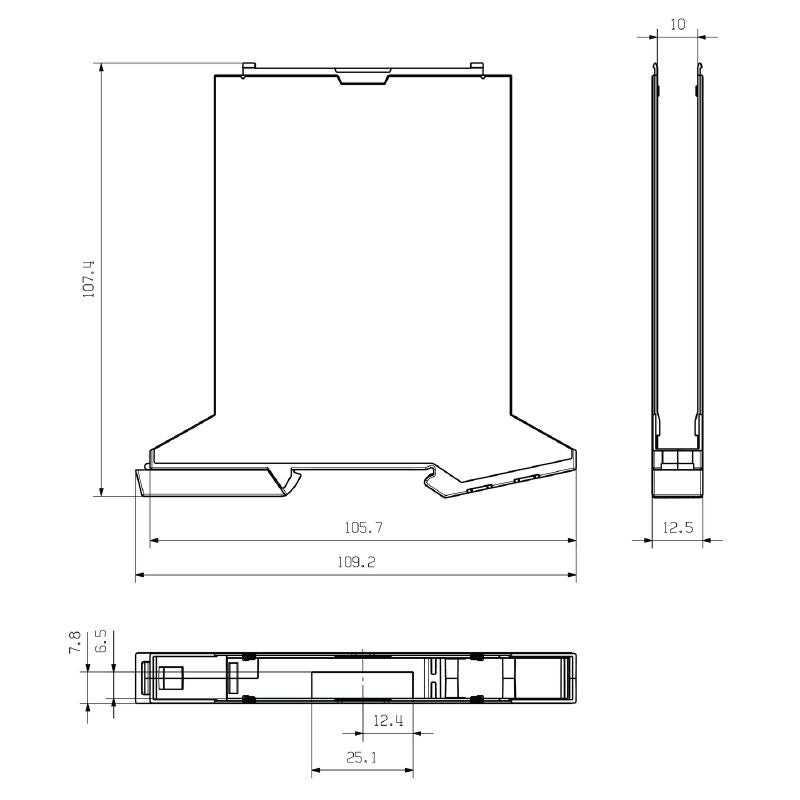

 Depth 108 mm
 Height 109.3 mm
 Operating temperature range -40...120 ℃
 Ambient temperature -25 °C…85 °C
 Humidity 5 - 93% relative humidity, Tu = 40°C, no condensation
 Basic material Plastic
 Comparative Tracking Index (CTI) 600 ≤ CTI
 Insulating material PA 66 GF 30
 Surface finish untreated
 UL 94 flammability rating V-0
 Mounting rail TS 35
 Number of slots for female connectors 6
 Number of PCBs in max assembly 1
 Max connection levels 3
 Max height of components on PCB 6.1 mm
 Number of shocks per axle 3 in positive and negative direction
 Shock duration 30 ms
 Acceleration horizontal 30 m/s²
 Test category 1
 Test duration 5 hours per axle
 Effective acceleration 7.9 m/s²
