2418660000 - 22.5mm Light Blue OMNIMATE Side Element Housing (Pack of 10)

SKU: SKU: 2418660000 Download PDF

Variant:

2418660000 - 22.5mm Light Blue OMNIMATE Side Element Housing (Pack of 10)

Now $24.58

~~BEFORE $0.00~~ Now $24.58

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CH20M22 S PPSC BL 2013, a versatile side element housing available in a refreshing light blue color Measuring 225 mm in width, this housing is designed with durability in mind, making it suitable for a wide range of applications Compliant with RoHS standards, it also adheres to environmental regulations, ensuring a safe and sustainable choice for your needs.

Features and Benefits:

•Light blue color.

•2 connection levels.

•Supports up to 8 poles.

•Includes 1 ventilation opening.

•IP20 protection degree.

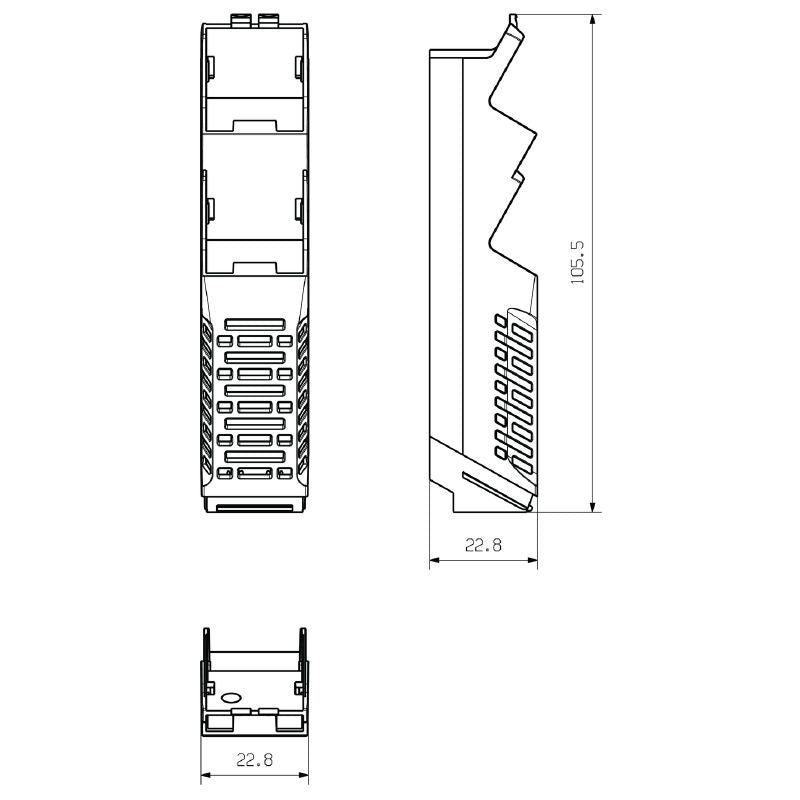

•Depth of 105.5 mm.

•Height of 22.8 mm.

•Constructed from plastic.

•UL 94 flammability rating of V-0.

Specifications:

Order No.	2418660000
Dimensions	{'Depth': '105.5 mm', 'Height': '22.8 mm', 'Width': '22.5 mm'}
Ambient temperature	-25 °C to 85 °C
Operating temperature range	-40...120 °C
Humidity	5 - 93% relative humidity at 40 °C, no condensation
RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%
Basic material	Plastic
Comparative Tracking Index (CTI)	600 ≤ CTI
Insulating material	PA 66 GF 30
Insulating material group	I
Surface finish	untreated
