1519470000 - Black CH20M Series OMNIMATE Kit with 45mm Width

SKU: SKU: 1519470000 Download PDF

Variant:

1519470000 - Black CH20M Series OMNIMATE Kit with 45mm Width

Now $84.52

~~BEFORE $0.00~~ Now $84.52

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

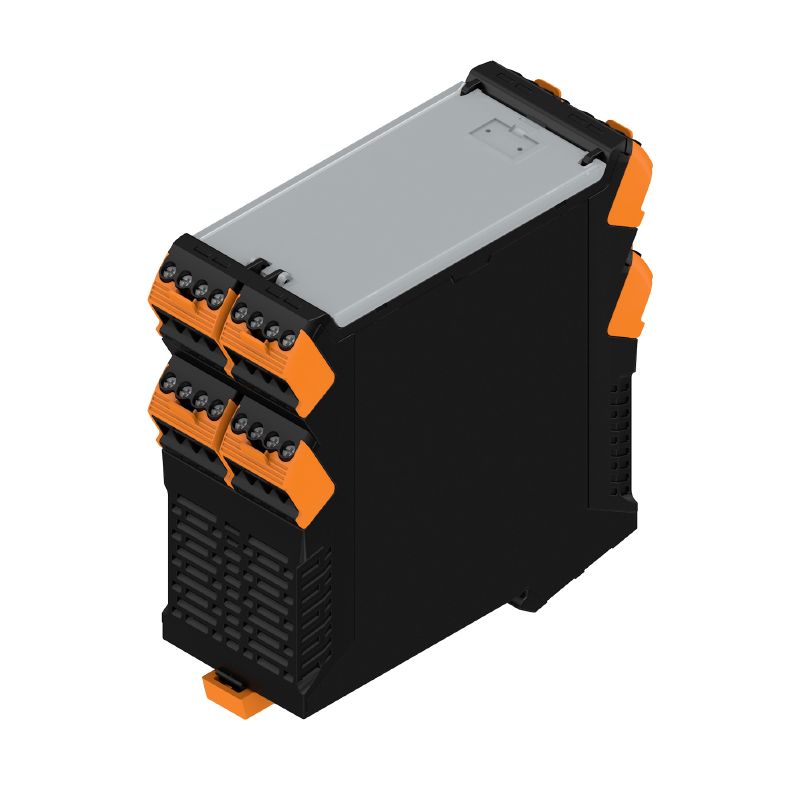

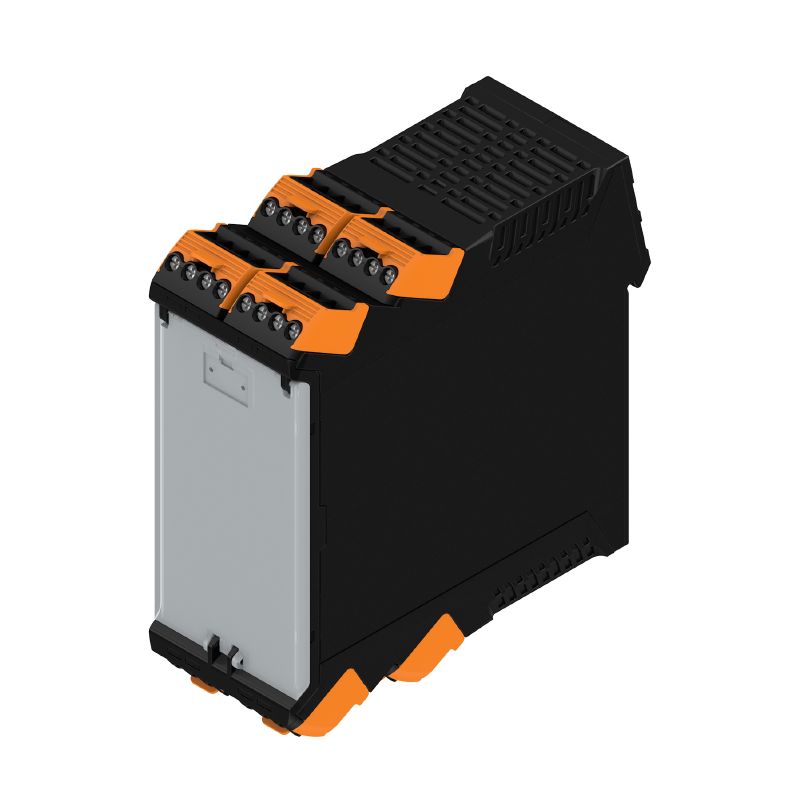

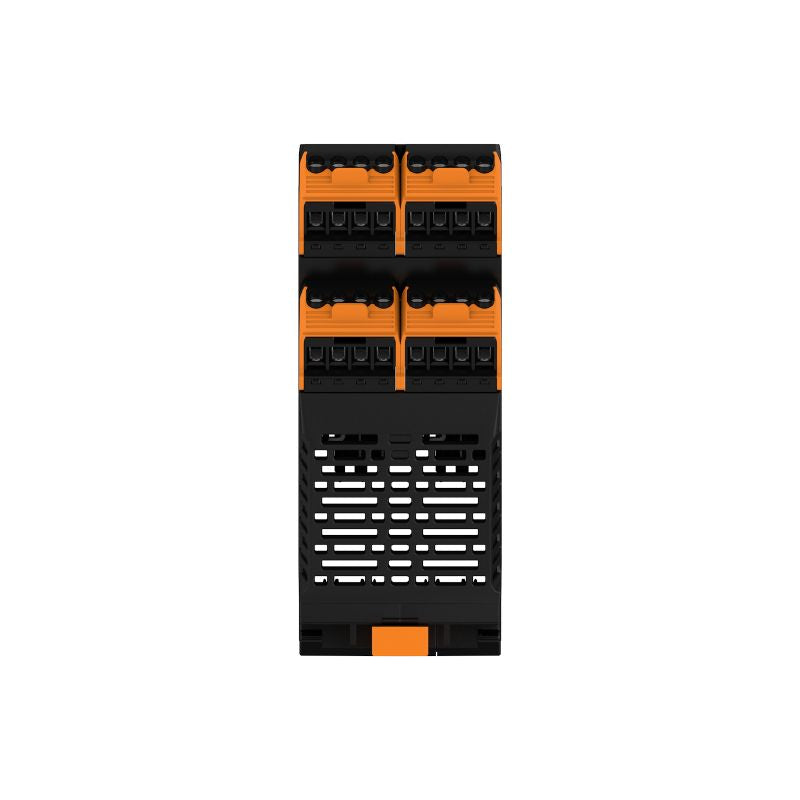

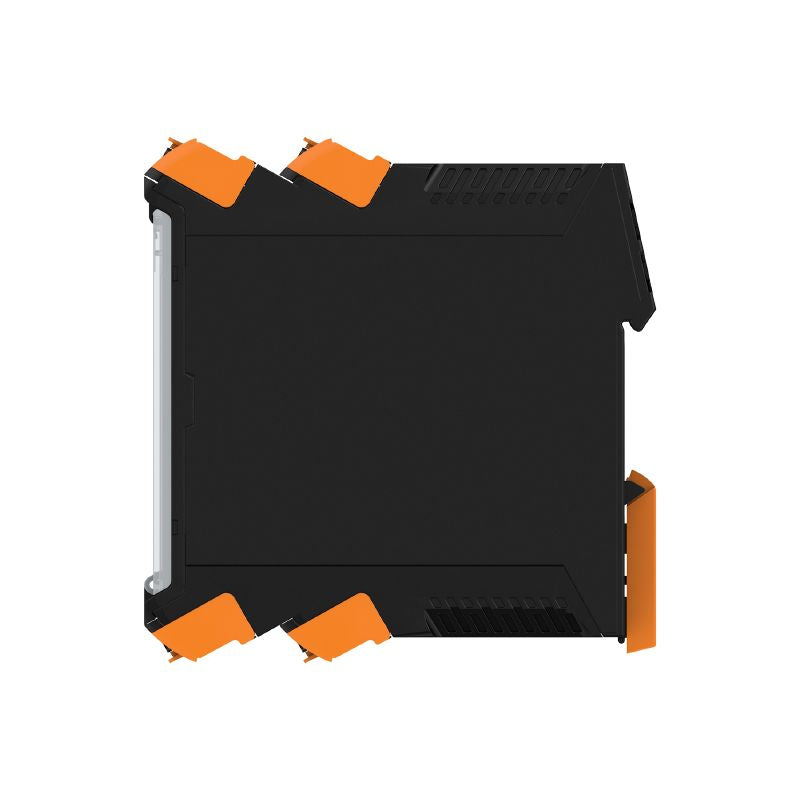

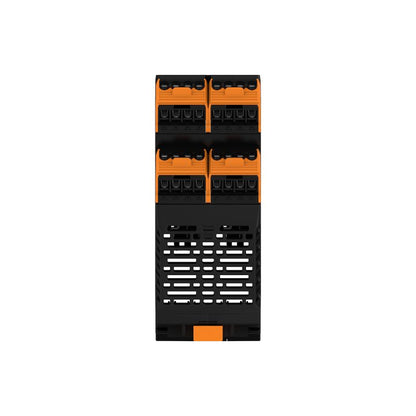

Introducing our development sample kit, featuring a sleek black housing from the CH20M OMNIMATE series This kit includes a variety of essential components, including a female plug and a full enclosure, showcasing versatile connection technology With a compact width of 45 mm, it's perfect for all your development needs.

Features and Benefits:

•Compliant with RoHS without exemption.

•Approval status for environmental product compliance.

•Plastic housing material with a black color.

•Comes mounted with a flip cover.

•Includes integrated marker for identification.

Specifications:

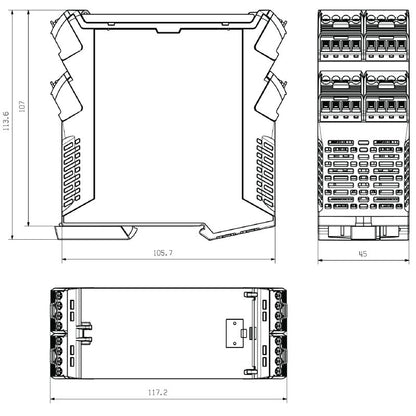

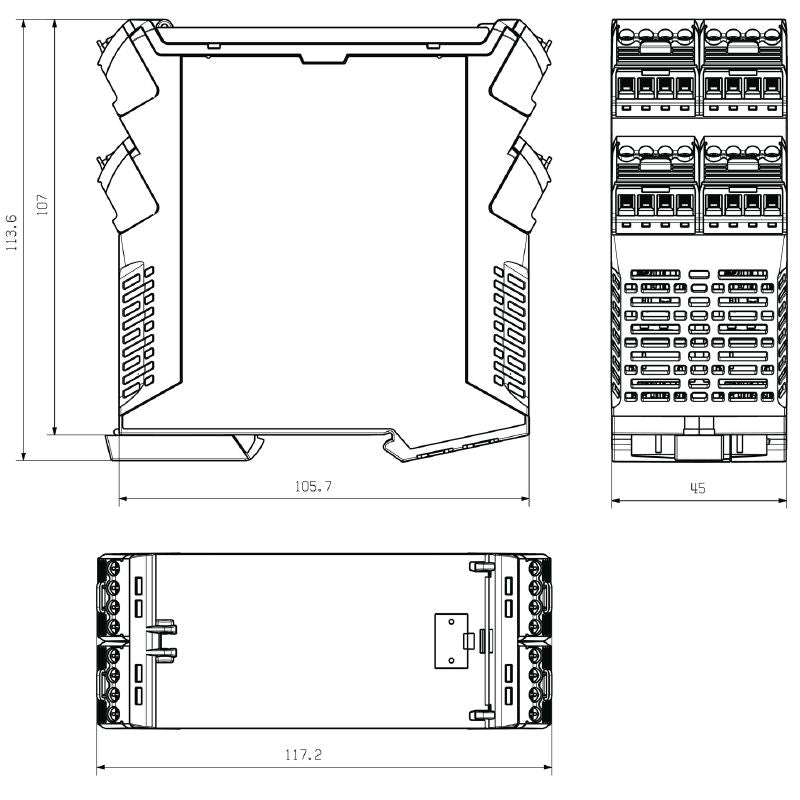

Depth	113.6 mm
Height	117.2 mm
Width	45 mm
Installation temperature	-25 °C...85 °C
Rated current (Tu=20°C)	10 A
Rated current (Tu=40°C)	9 A
Rated voltage (pollution degree II/2)	400 V
Rated voltage (pollution degree III/2)	320 V
Rated voltage (pollution degree III/3)	250 V
IP protection degree	IP20 in installed state
Number of poles	4
Wire connection method	Clamping yoke connection
Stripping length	8 mm
Tightening torque (min.)	0.4 Nm
Tightening torque (max.)	0.5 Nm
Max. clamping range	2.5 mm²
Basic material	Plastic
UL 94 flammability rating	V-0
