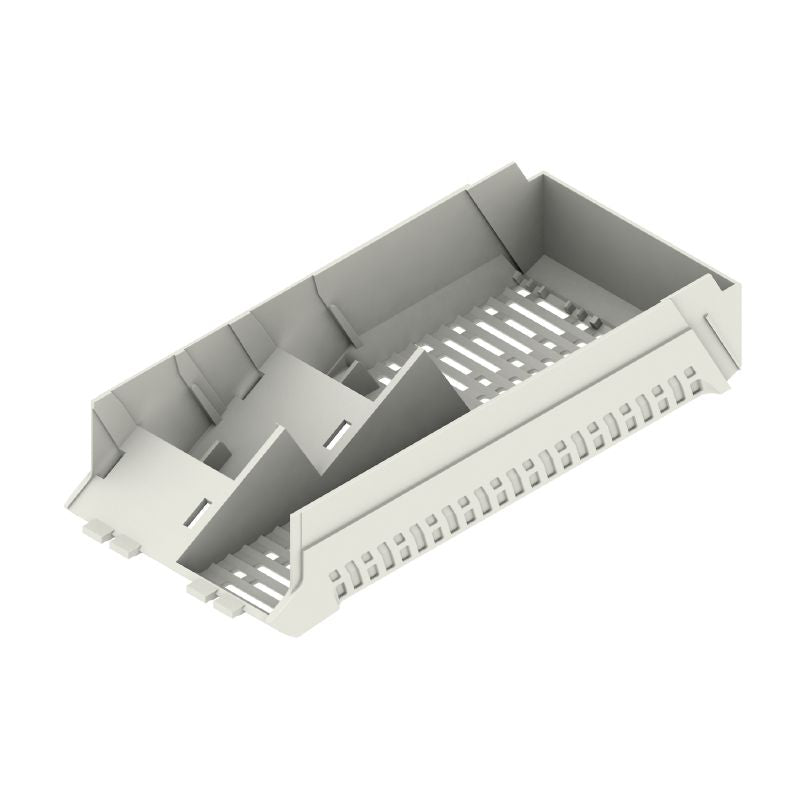

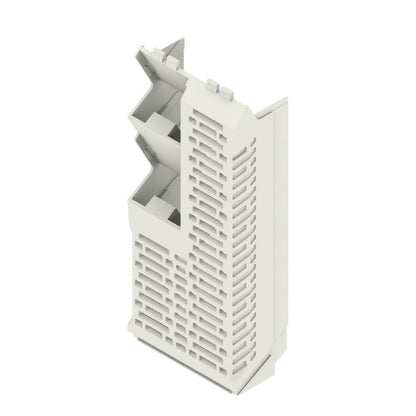

2585480000 - Light Grey OMNIMATE Housing, 45mm Width, RoHS Compliant (Pack of 6)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Light Grey OMNIMATE Housing Model CH20M45 S 2PSC/3SC, expertly designed with a 45 mm side element This product adheres to key environmental standards, including RoHS, ensuring its eco-friendliness Weighing in at just 147 grams, it operates efficiently within a temperature range of -40 to 120 °C and is suited for ambient conditions from -25 °C to 85 °C Crafted from plastic, it boasts a UL 94 flammability rating of V-0, providing reassurance in safety.

Additionally, the housing features an IP20 protection degree in its installed position, making it a reliable choice for various applications.

Features and Benefits:

•Compliant with RoHS and without any exemptions.

•Environmental compliance without SVHC above 0.1 wt%.

•Constructed from PA 66 GF 30 insulating material.

•Has a Comparative Tracking Index (CTI) of 600 or less.

•Features four ventilation openings.

Specifications:
