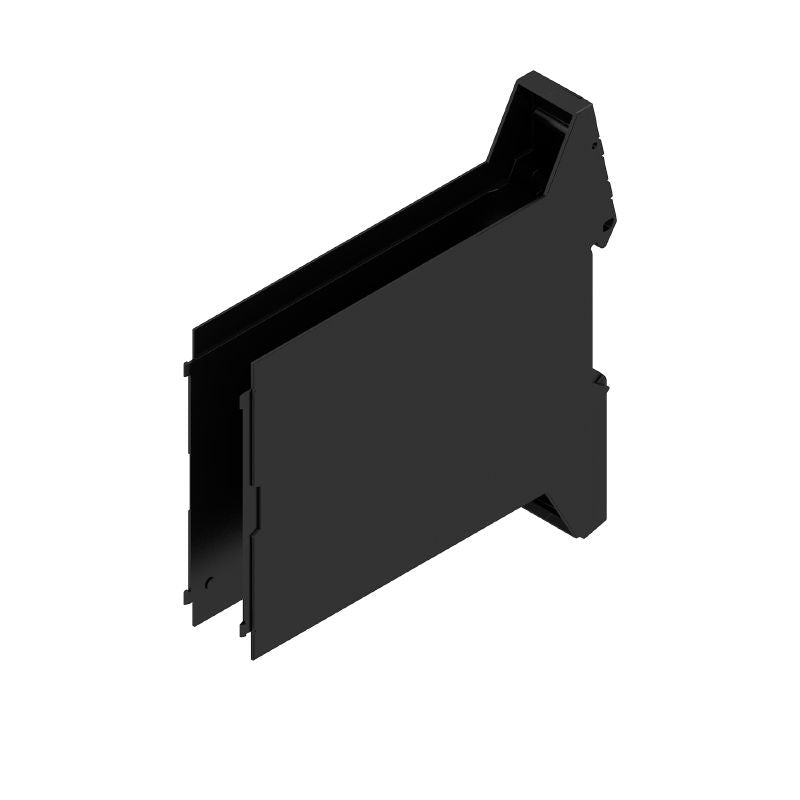

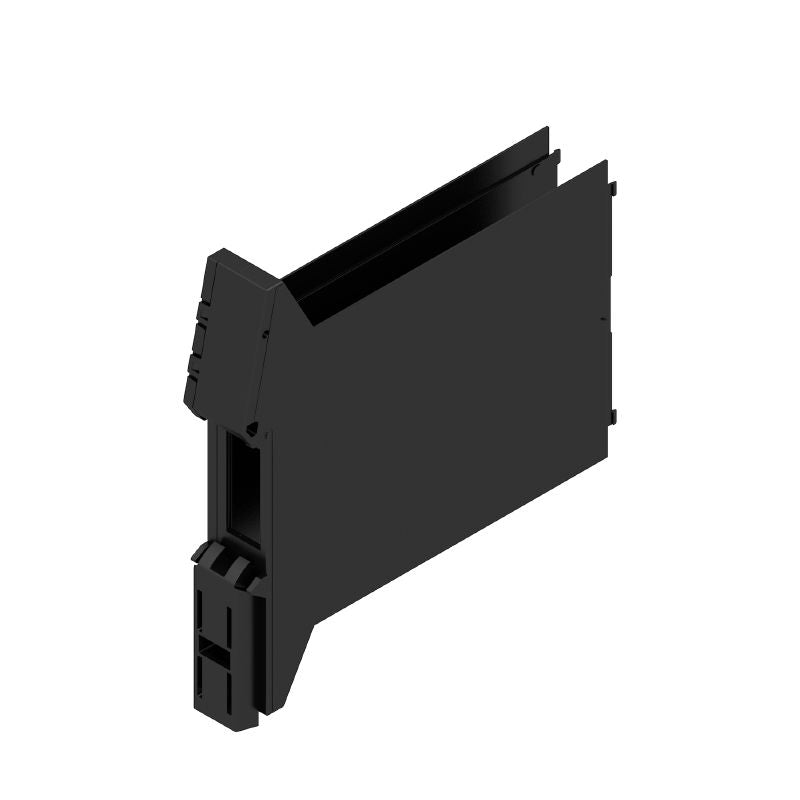

1366280000 - OMNIMATE 17.5mm Modular Housing for BUS Contacts (Pack of 12)

1366280000 - OMNIMATE 17.5mm Modular Housing for BUS Contacts (Pack of 12)

SKU: 1366280000   Download PDF

Select a Variant:
  • 1366280000 - OMNIMATE 17.5mm Modular Housing for BUS Contacts (Pack of 12)
Qty:
Now $53.24   Web pricing policy
BEFORE   $0.00 Now $53.24 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the CH20M17 B BUS BK/BK 2010, a modular housing solution from the OMNIMATE series Specifically crafted for black base elements, this housing includes a unique recess in the detent foot area intended for BUS contacts Measuring 175 mm in width, this product is also RoHS compliant, ensuring it meets environmental safety standards Perfect for your modular needs!.

Features and Benefits:

    •Modular design allows for versatile assembly options.

    •Protection degree of IP20 in the installed state.

    •Optimum temperature range suitable for various environments.

    •Compatible with standard mounting rails like TS 35.

Specifications:

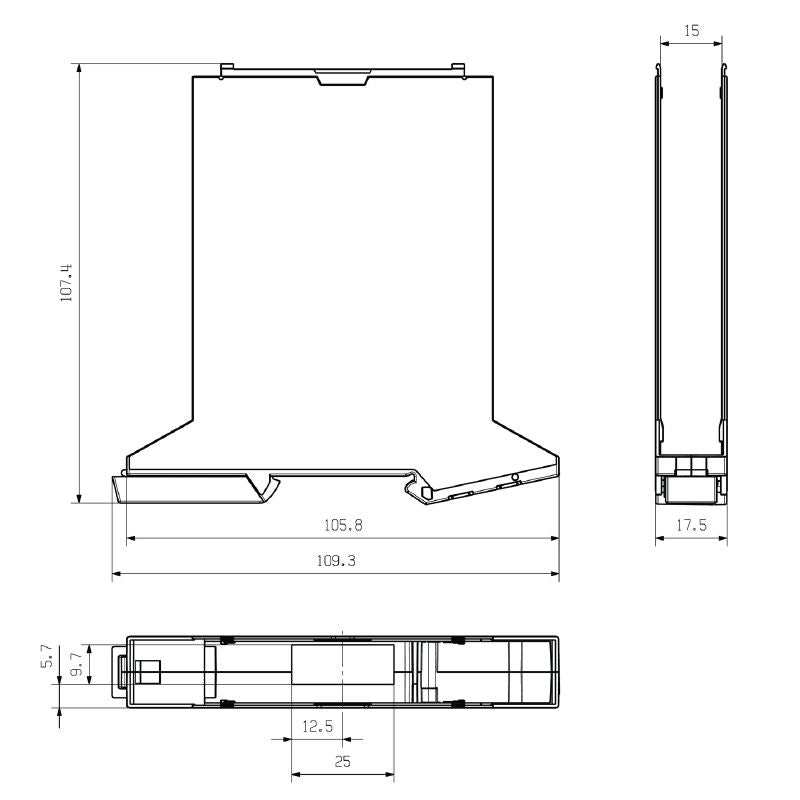

 Depth 108 mm
 Height 109.3 mm
 Width 17.5 mm
 Ambient temperature -25 °C to 85 °C
 Operating temperature range -40 to 120 °C
 Humidity 5 - 93% relative humidity
 Basic material Plastic
 Comparative Tracking Index (CTI) 600 ≤ CTI
 Insulating material PA 66 GF 30
 Flammability rating UL 94 V-0
 Number of slots for female connectors 6
 Number of connection levels 3
 Max Number of poles 18
 PCB thickness 1.6 mm
 Tolerance for PCB shape ±0.1 mm
 Tolerance of circuit board thickness ±0.15 mm
