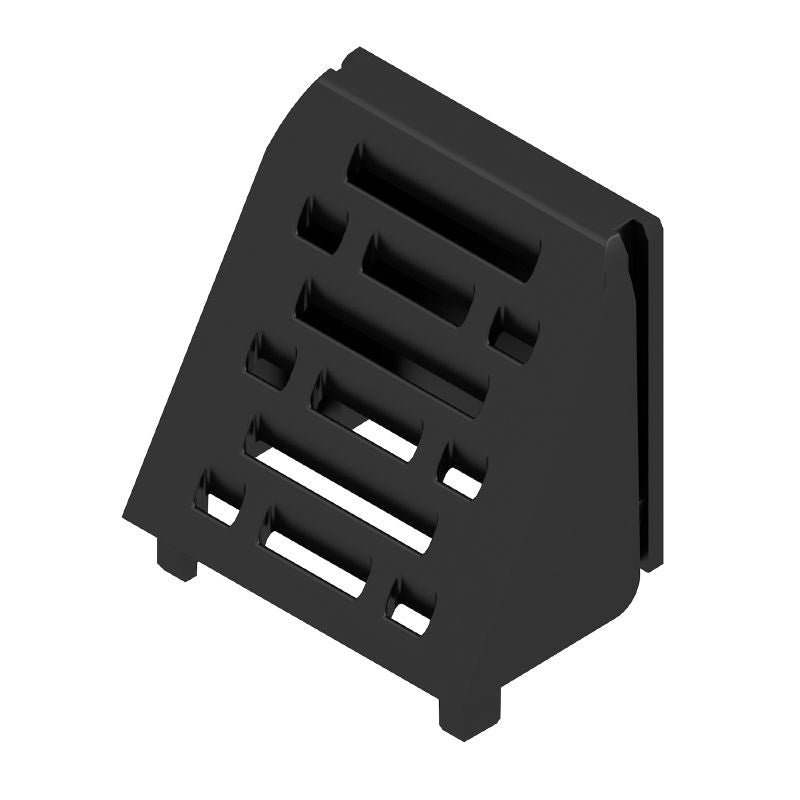

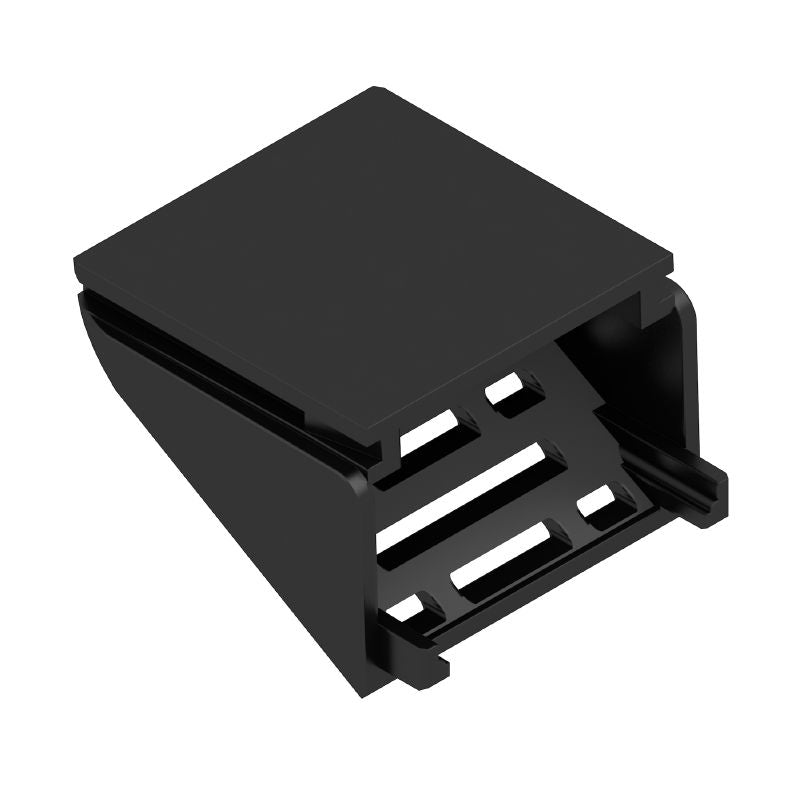

1221310000 - OMNIMATE Hood, 22.5mm Width, Plastic, IP20 Protection (Pack of 50)

Description:

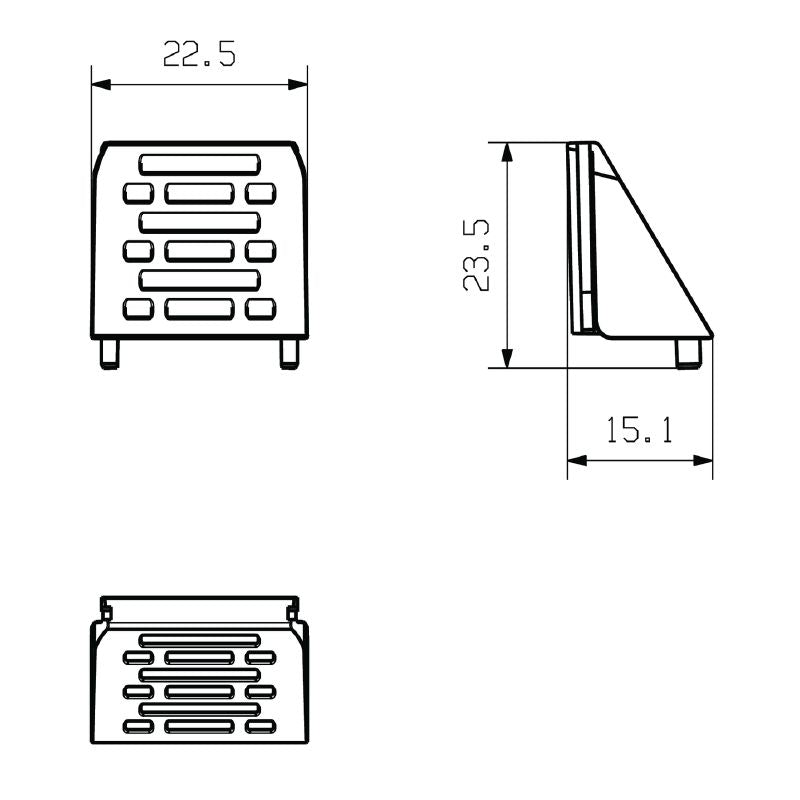

Introducing the CH20M AD SHL 500/04 BK 2010 hood, specifically crafted for OMNIMATE Housing Measuring 225 mm in width, 152 mm in depth, and standing at 234 mm tall, this component is made from high-quality plastic, weighing only 161 g It operates effectively in ambient temperatures that range from -25 °C to 85 °C, while it can withstand extreme environments from -40 °C to 120 °C With a relative humidity tolerance from 5% to 93% at 40 °C, this product ensures optimal performance without condensation.

The hood adheres to RoHS regulations and is free from any substances of very high concern (SVHC) exceeding 01 wt% Additionally, it offers an IP20 protection rating when installed, guaranteeing reliable usage.

Features and Benefits:

•Compliant with RoHS regulations.

•No SVHC above 0.1 wt%.

•Untreated surface finish.

•Basic material is plastic.

•Protection degree of IP20 in installed state.

Specifications:
