1176990000 - OMNIMATE Modular Housing 12.5mm, 108mm Depth, RoHS Compliant (Pack of 14)

SKU: SKU: 1176990000 Download PDF

Select a Variant:

1176990000 - OMNIMATE Modular Housing 12.5mm, 108mm Depth, RoHS Compliant (Pack of 14)

SET THE QTY:

Now $64.33 Web pricing policy

~~BEFORE $0.00~~ Now $64.33 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

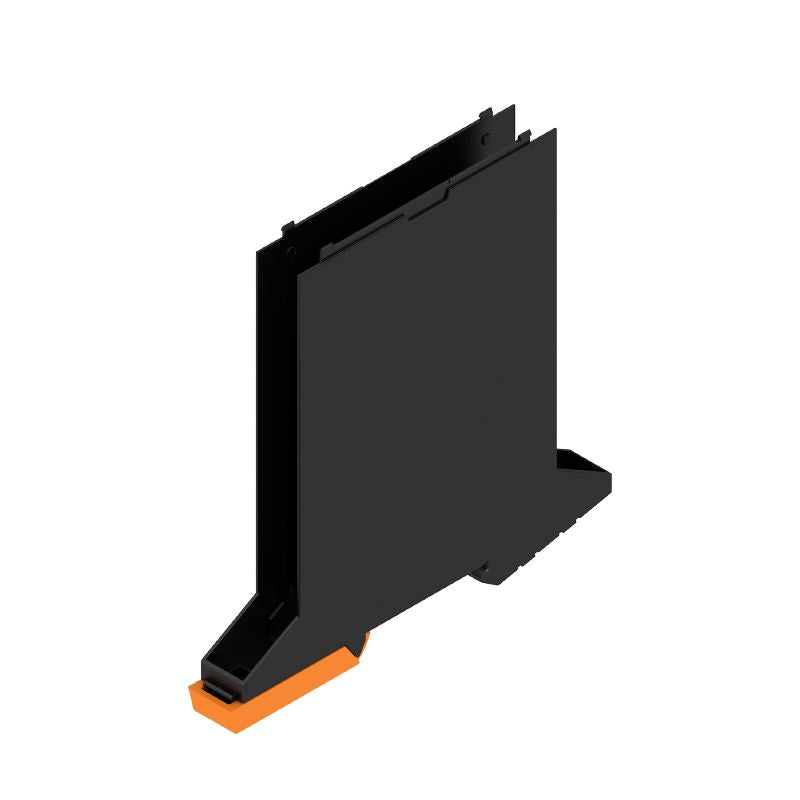

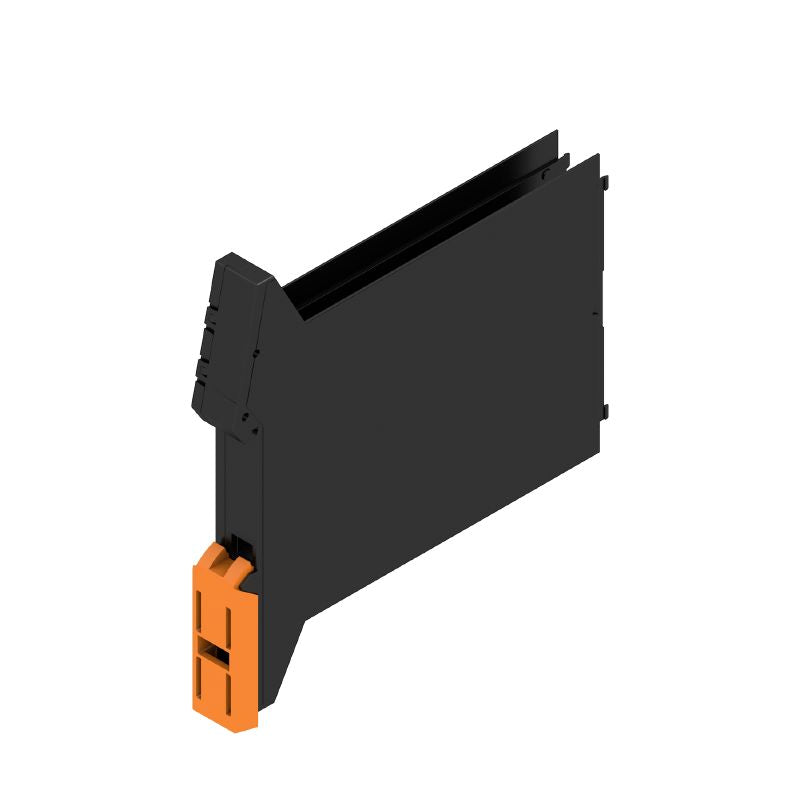

Introducing the versatile modular housing from the OMNIMATE Housing series, perfectly crafted with a compact width of 125 mm and a specially designed recess in the foot area for the FE contact This housing meets RoHS standards, guaranteeing safe and environmentally responsible usage With dimensions measuring 108 mm in depth, 1093 mm in height, and weighing just 7786 g, it's an ideal choice for a variety of applications.

Features and Benefits:

•Offers protection degree of IP20 when installed.

•Designed for ambient temperatures ranging from -25 °C to 85 °C and operating temperatures from -40 °C to 120 °C.

•Compliant with DIN EN 61373:1999 standards for shock and vibration.

•Constructed using PA 66 GF 30 for insulating material.

•Can accommodate up to 12 poles in a single assembly.

Specifications:

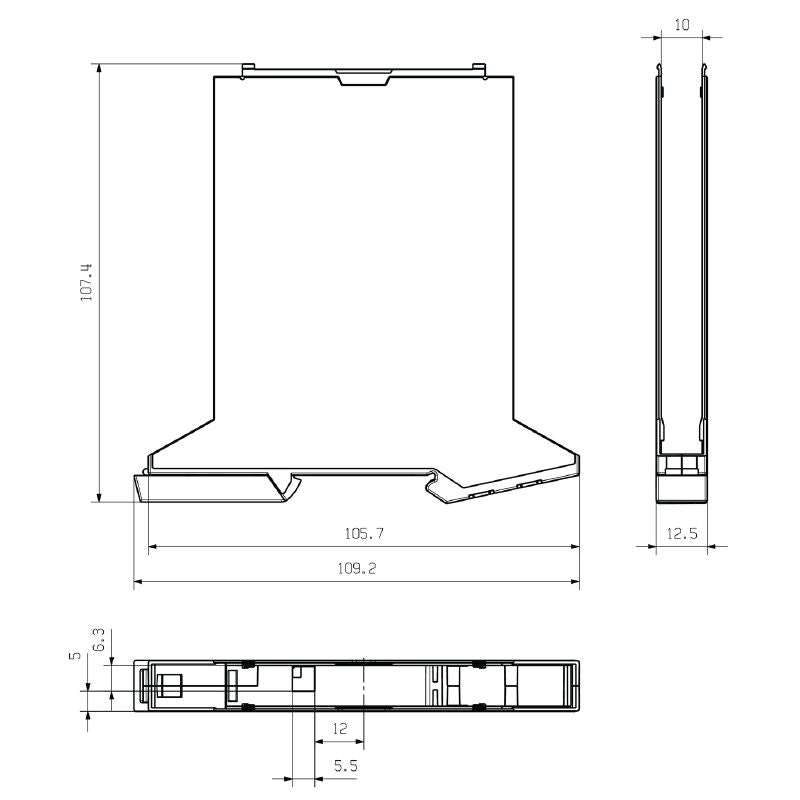

Depth	108 mm
Height	109.3 mm
Width	12.5 mm
Net weight	7.786 g
Ambient temperature	-25 °C…85 °C
Operating temperature range	-40...120 °C
Humidity	5 - 93% rel. humidity, Tu = 40°C, no condensation
Basic material	Plastic
CTI	600 ≤ CTI
Surface finish	untreated
UL 94 flammability rating	V-0
Number of slots for female connectors	6
Maximum number of PCBs	1
Maximum number of connection levels	3
Maximum height of components on PCB	6.1 mm
Type of assembly of the PCB	double-sided
