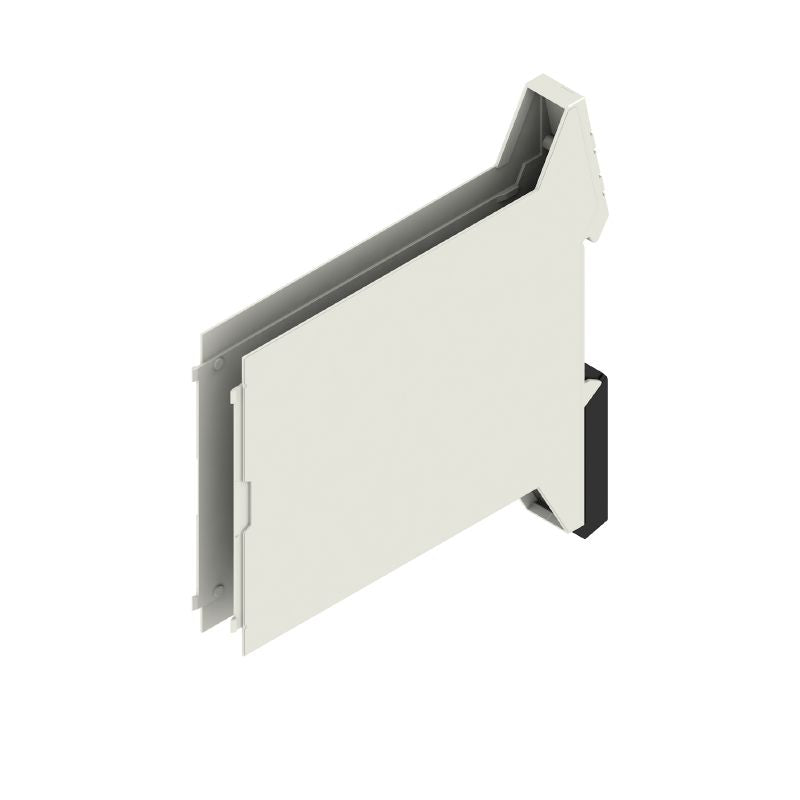

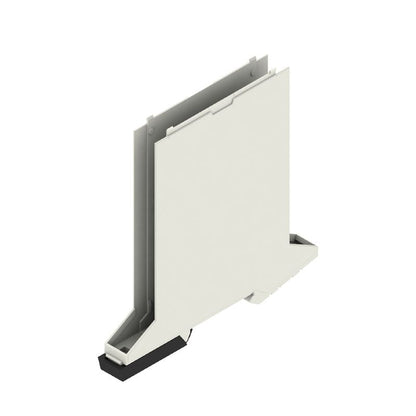

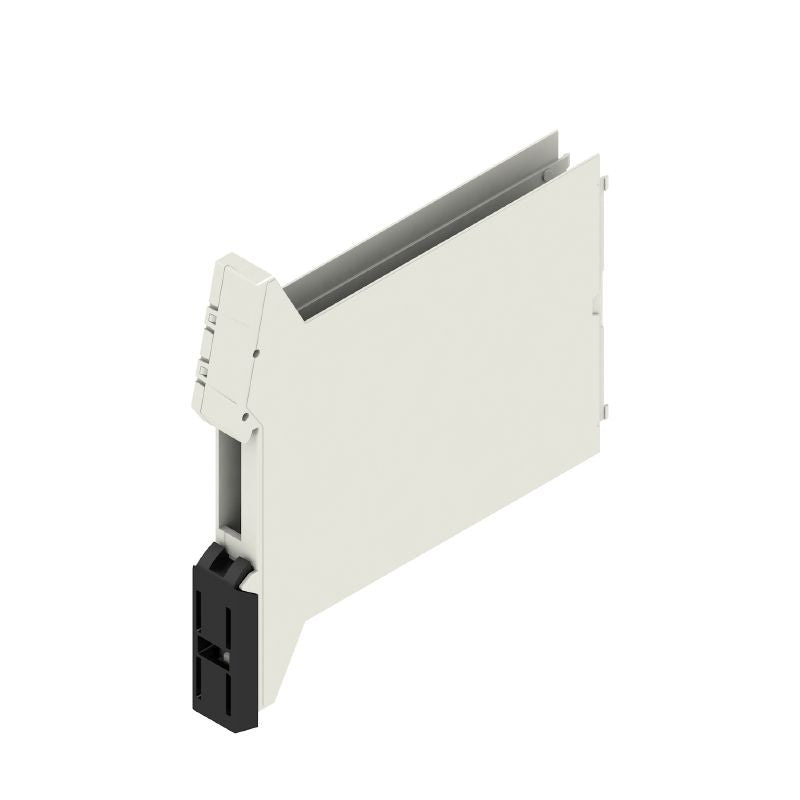

1310520000 - Modular Light Grey Housing, 12.5mm with 6 Slots and IP20 (Pack of 14)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CH20M12 B BUS LGY/BK 2018, a versatile modular housing from the OMNIMATE Housing range, offered in a sophisticated light grey finish This unit features a base element with a specially designed recess in the detent foot area for the BUS contact Measuring 125 mm in width, it adheres to RoHS compliance, ensuring it meets environmental standards Tailored for diverse assembly needs, this modular housing can accommodate up to 6 female connector slots and support a maximum of three connection levels.

Its robust design allows it to function effectively in a wide range of ambient temperatures, from -25 °C to 85 °C It also boasts mechanical resilience as per DIN EN 61373:1999 standards for both shock and vibration, ensuring reliability in various conditions While it does not come encapsulated, once installed, it offers a protection degree of IP20, providing a solid option for your connectivity requirements.

Features and Benefits:

•Light grey color matches RAL 7035.

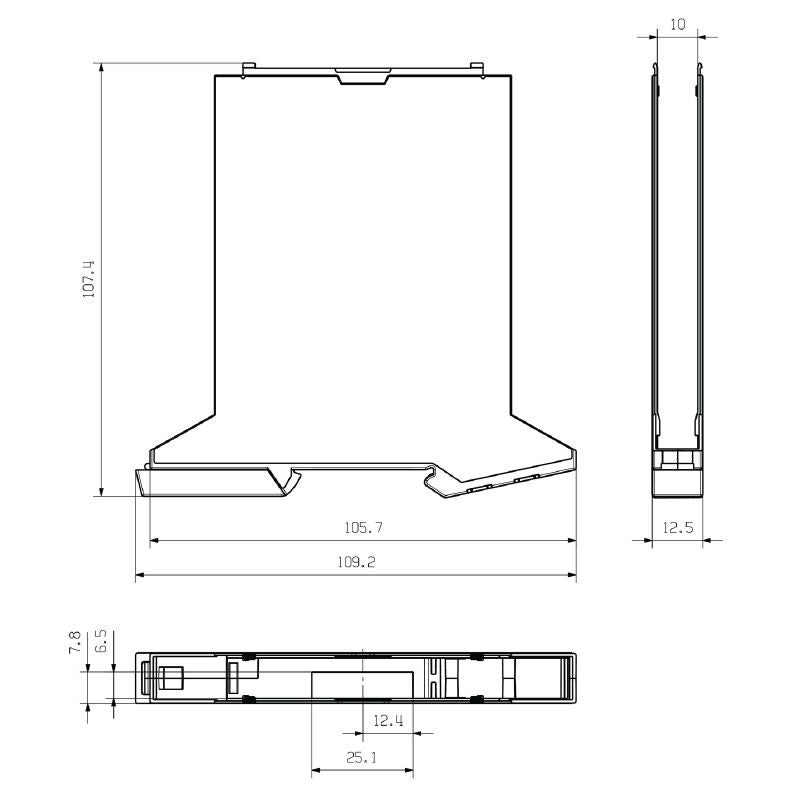

•Capable of withstanding a maximum depth of 108 mm and height of 109.3 mm.

•Constructed from durable plastic with untreated surface finish.

•UL 94 flammability rating is V-0.

•Supports a maximum of 12 poles.

Specifications:
