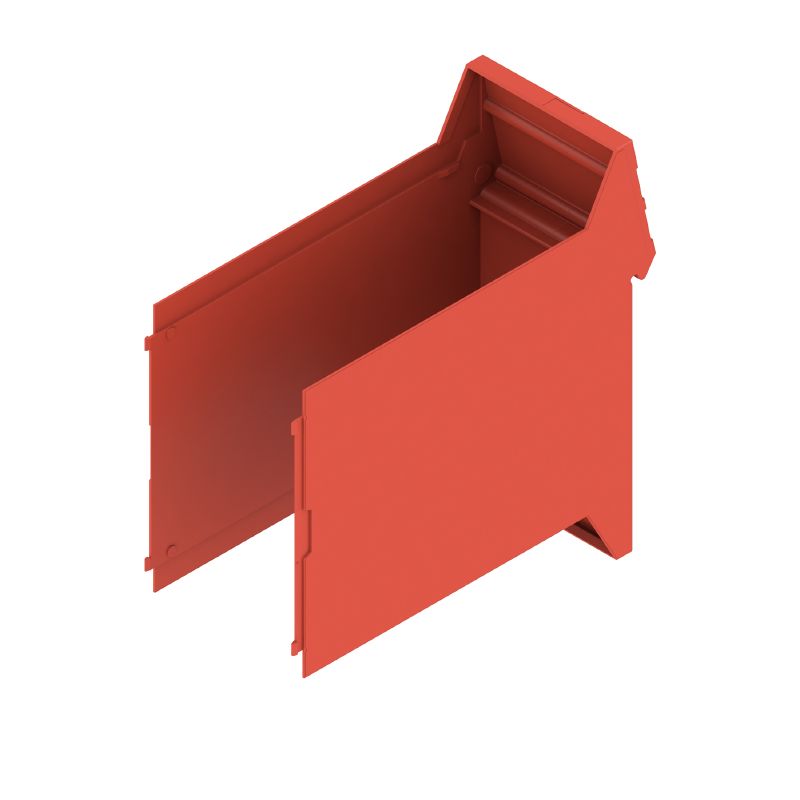

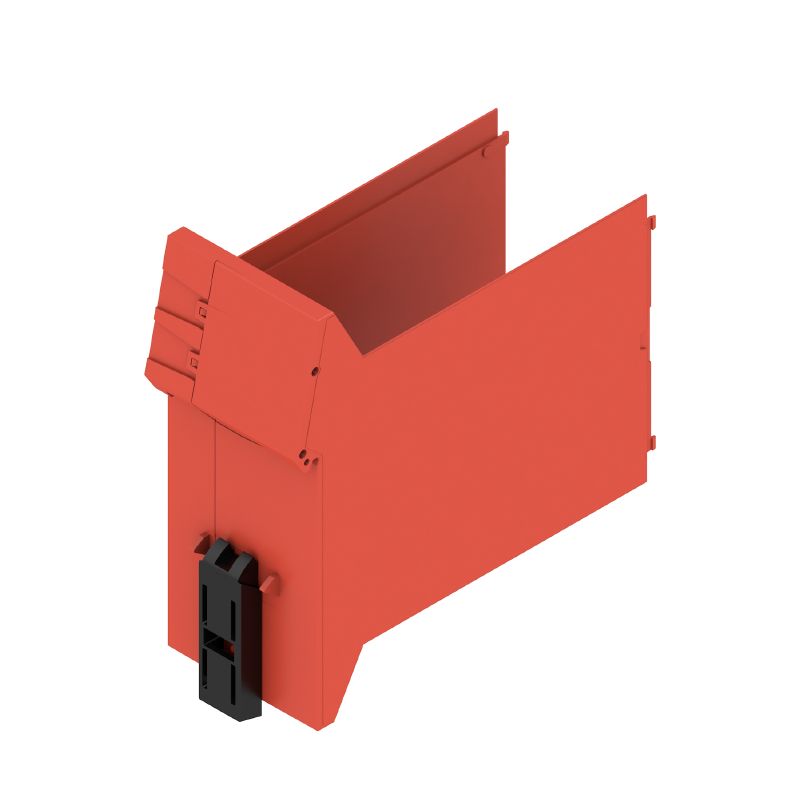

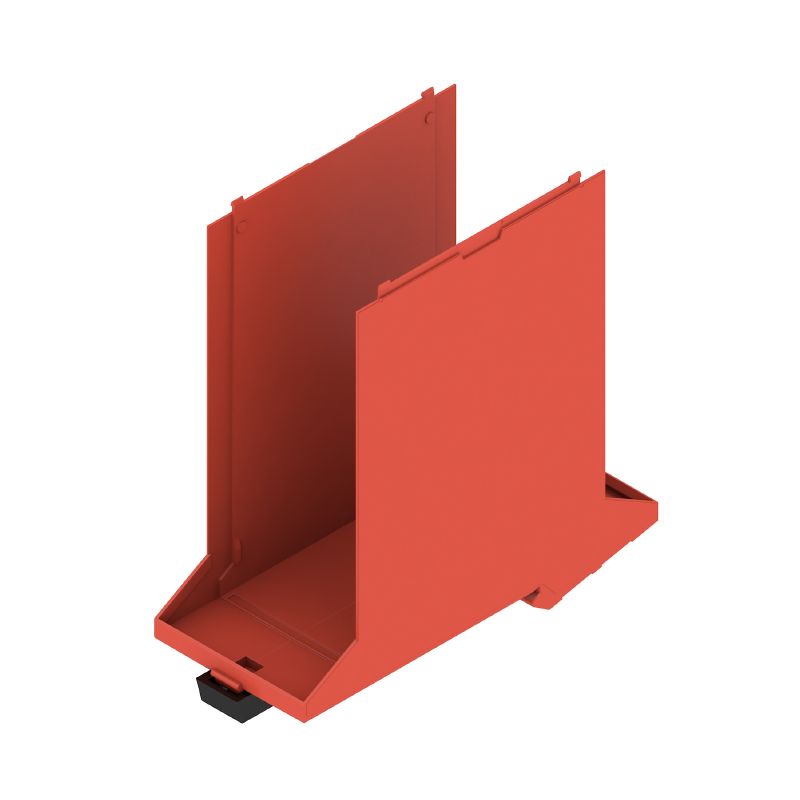

1206910000 - OMNIMATE Modular Housing 45mm Wide, Red Finish, IP20 Rated (Pack of 6)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

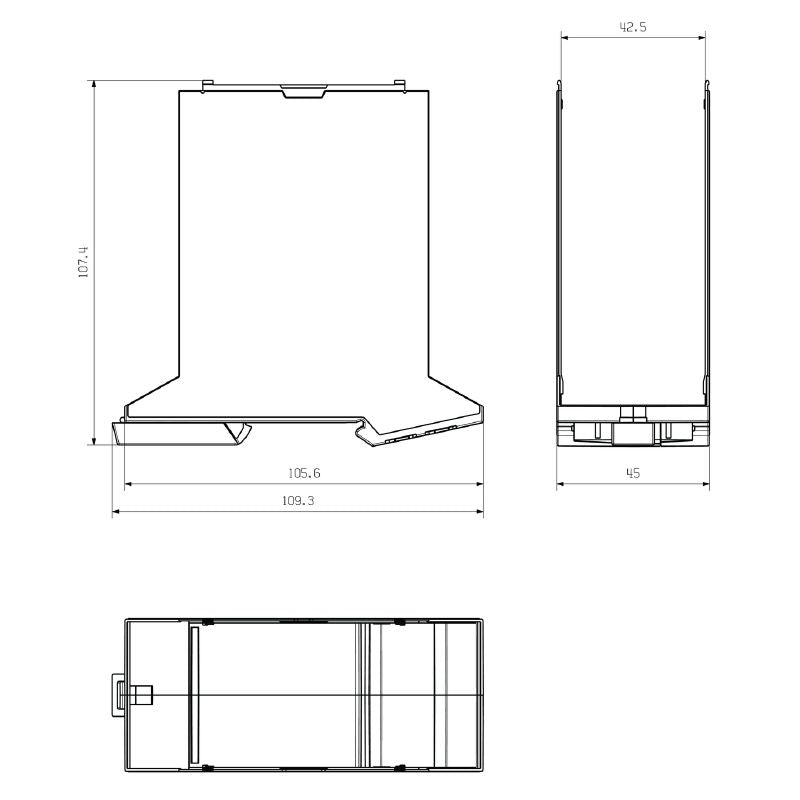

Introducing the OMNIMATE modular housing solution, featuring a striking red finish and designed with a compact width of 45 mm This unit adheres to RoHS standards and is identifiable by its GTIN 4032248988655 With dimensions of 108 mm in depth and a height of 1093 mm, it weighs in at a lightweight 3933 g Engineered for versatility, this housing operates within a temperature range of -25 °C to 85 °C, while enduring extreme operational temperatures up to 120 °C.

It boasts impressive humidity resilience, effectively functioning in conditions of 5% to 93% humidity at 40°C without condensation Constructed from durable plastic, this product features a Comparative Tracking Index of 600 or lower The outstanding insulating material, PA 66 GF 30, is untreated and carries a UL 94 flammability rating of V-0 With an IP20 protection rating, it is designed to accommodate 12 female connector slots, 2 printed circuit boards (PCBs), and supports up to 3 connection levels with a maximum of 48 poles, making it an ideal choice for various applications.

Features and Benefits:

•RoHS compliant.

•Red color, RAL 3020.

•No encapsulation option.

•Assembly on TS 35 mounting rail.

Specifications:
