2435460000 - Modular 6.1mm Black Connector Housing for PCB Assembly (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CH20M6 BP 4P-4P FE BK 1 1261494, part of the renowned OMNIMATE series This modular housing features a sleek black base, specifically designed with a recess in the detent foot area to accommodate FE contacts Measuring 61 mm in width, it fully complies with RoHS regulations without any exemptions, ensuring environmental safety This connector supports an impressive 8 connection levels and is engineered for single-sided assembly, suitable for PCBs with a maximum height of 3.

5 mm Ideal for various electronic applications, this robust housing combines functionality with reliability.

Features and Benefits:

•Compliant with RoHS regulations.

•Plastic basic material.

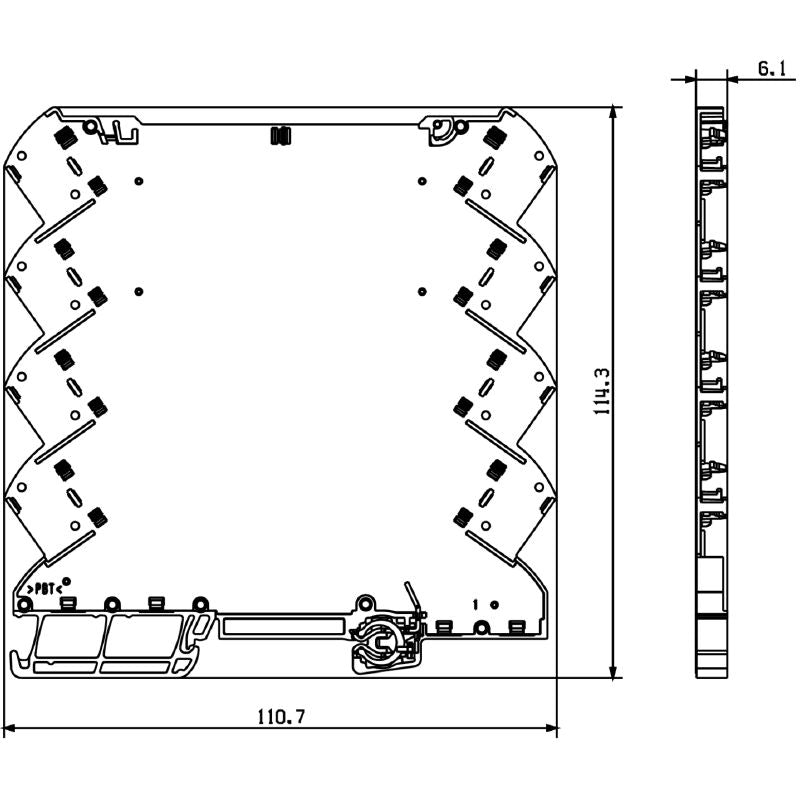

•Dimensions: Depth 114.3 mm, Height 110.7 mm, Width 6.1 mm.

•Net weight: 22.34 g.

•IP20 protection degree in installed state.

•Customized labeling and cutouts possible.

•Options for alternative colors available on request.

Specifications:
