Home / PCB ELECTRONIC HOUSING / 1189890000 - AP 110 BK Black End Plate, 27.2mm Width, RS 100 Compatible (Pack of 10)
1 4

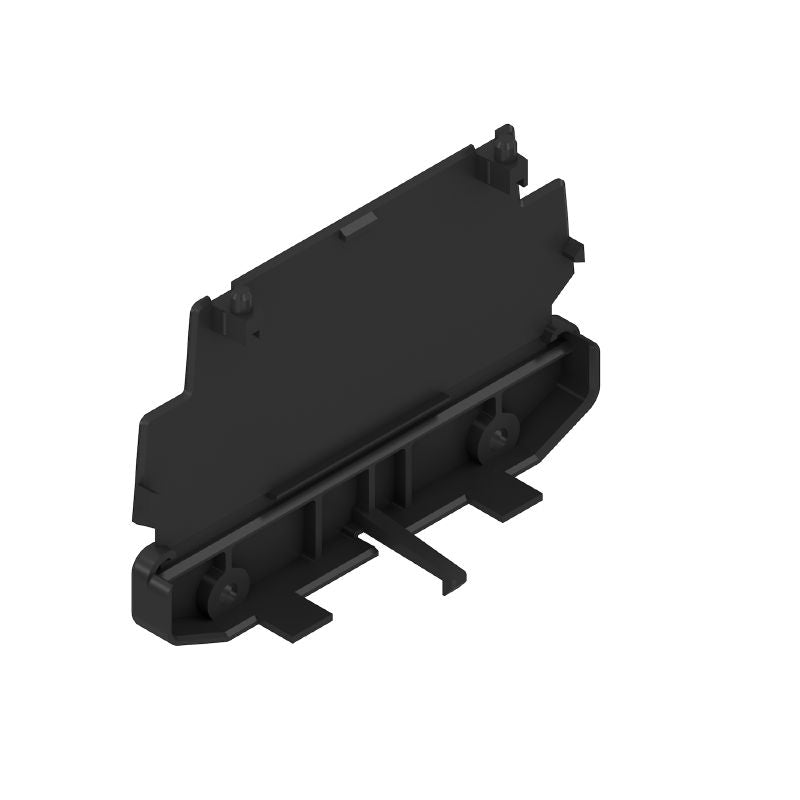

1189890000 - AP 110 BK Black End Plate, 27.2mm Width, RS 100 Compatible (Pack of 10)

1189890000 - AP 110 BK Black End Plate, 27.2mm Width, RS 100 Compatible (Pack of 10)

SKU: 1189890000   Download PDF

Select a Variant:
  • 1189890000 - AP 110 BK Black End Plate, 27.2mm Width, RS 100 Compatible (Pack of 10)
Qty:
Now $21.82   Web pricing policy
BEFORE   $0.00 Now $21.82 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the AP 110 BK end plate, expertly crafted for RS 100 applications This component showcases a sophisticated black finish and measures 272 mm in width Built to last, it is constructed from PA 66 material, ensuring exceptional durability with a comparative tracking index (CTI) of 600 When installed, it provides a protection level of IP20 The surface of this end plate remains untreated, and it adheres to multiple ETIM and ECLASS classification standards while complying with ROHS directives.

Upgrade your project with this reliable and compliant end plate.

Features and Benefits:

    •Made from untreated PA 66 material.

    •Compliant with ROHS without exemptions.

    •Protection degree of IP20 in the installed state.

Specifications:

 Depth 73.6 mm
 Height 109.5 mm
 Width 27.2 mm
 Colour black
 UL 94 flammability rating V-2
 Basic material PA 66
 Insulating material PA 66
 Insulating material group I
 Encapsulation option No
 Comparative Tracking Index (CTI) 600 ≤ CTI
 RoHS Compliance Status Compliant without exemption
 REACH SVHC No SVHC above 0.1 wt%
