1327990000 - Traffic Yellow Housing Component, 45mm Wide, IP20 Rating (Pack of 6)

SKU: SKU: 1327990000 Download PDF

Select a Variant:

1327990000 - Traffic Yellow Housing Component, 45mm Wide, IP20 Rating (Pack of 6)

SET THE QTY:

Now $29.52 Web pricing policy

~~BEFORE $0.00~~ Now $29.52 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

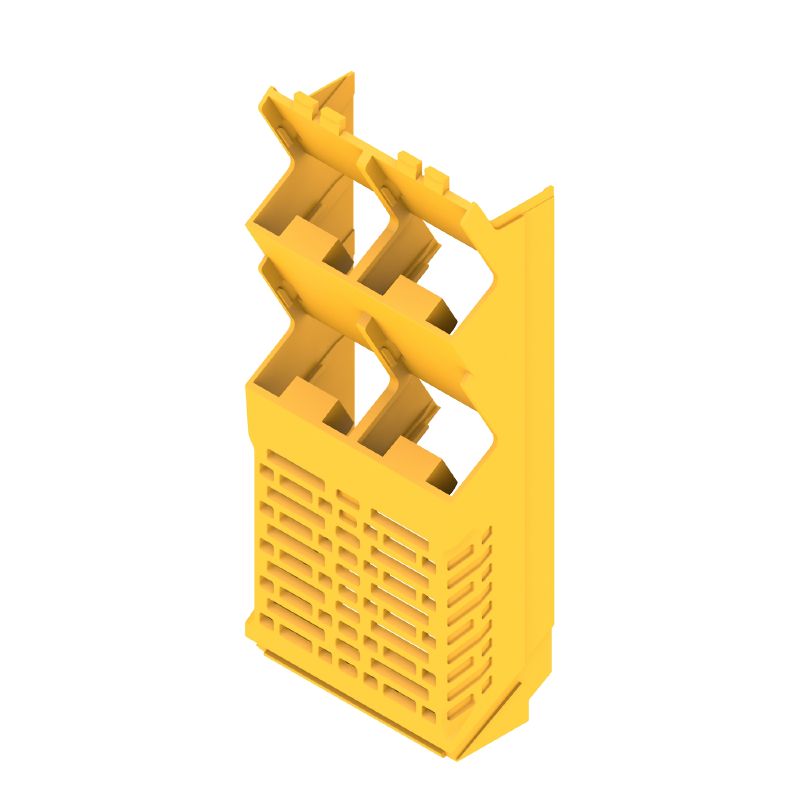

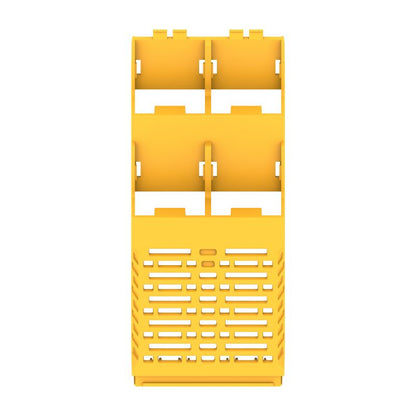

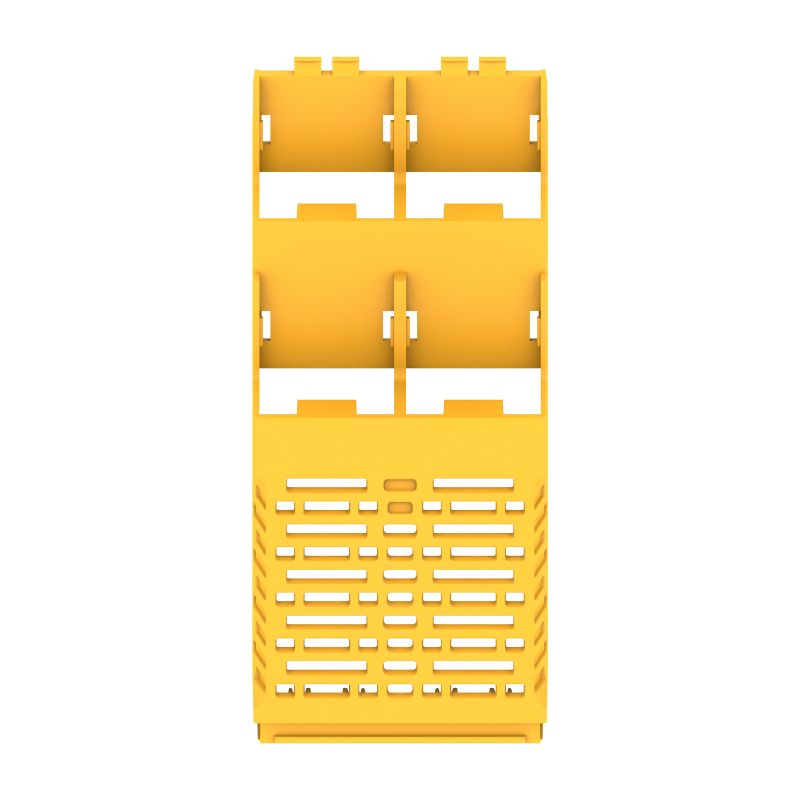

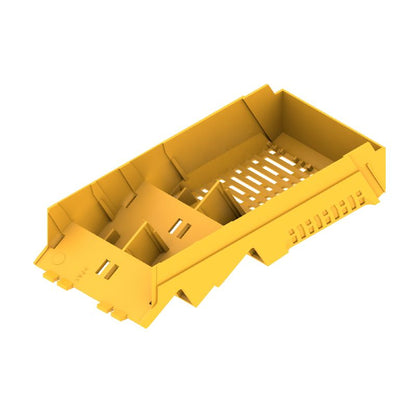

Discover the CH20M45 S 2PSC/2PSC TYL 2083, an OMNIMATE housing unit featuring a striking traffic yellow side component Measuring 45 mm in width, this robust housing ensures compliance with RoHS standards, making it a reliable choice for various applications Built from durable plastic, it thrives in extreme conditions, functioning effectively within a temperature spectrum of -40 to 120 degrees Celsius.

This unit includes two connection levels with capacity for up to 16 poles and incorporates four female plug slots along with two ventilation openings for enhanced performance With a protection rating of IP20, this housing component delivers both reliability and functionality in demanding environments.

Features and Benefits:

•Traffic yellow color.

•IP20 protection degree.

•Compliant with RoHS.

•Encapsulation option: No.

Specifications:

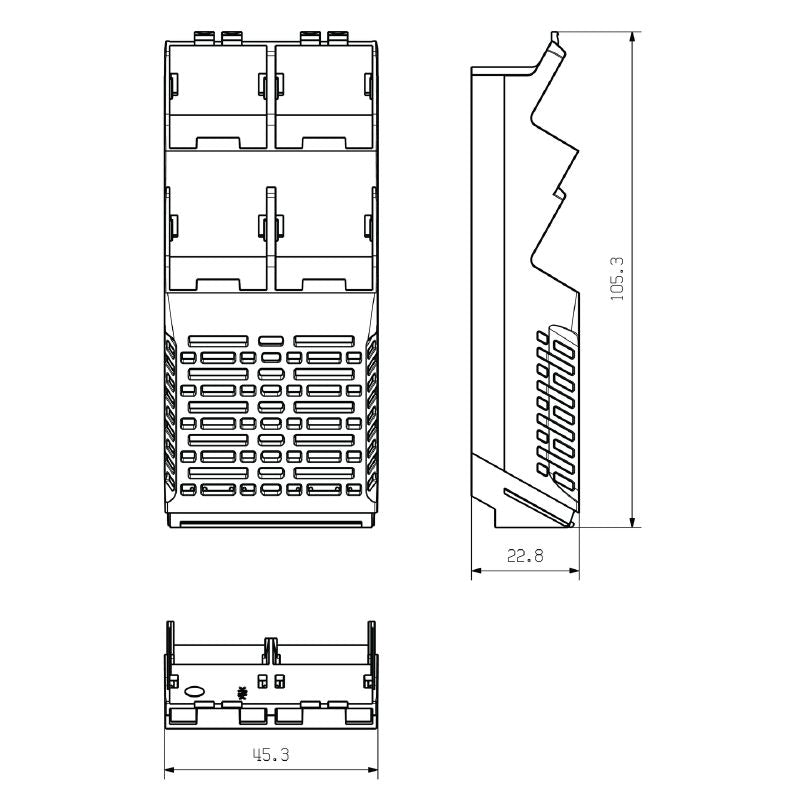

Depth	105.3 mm
Height	22.8 mm
Width	45 mm
Ambient temperature	-25 °C to 85 °C
Operating temperature range	-40 to 120 °C
Humidity	5 - 93% relative humidity, at 40°C, no condensation
Basic material	Plastic
Comparative Tracking Index (CTI)	600
Insulating material	PA 66 GF 30
Insulating material group	I
Surface finish	Untreated
UL 94 flammability rating	V-0
Number of connection levels	2
Number of poles, max.	16
Number of slots for female plugs	4
Number of ventilation openings	2
GTIN (EAN)	4050118132250
Order No.	1327990000
