2579660000 - Light Blue 45mm CH20M Front Element with Flip Cover (Pack of 30)

SKU: SKU: 2579660000 Download PDF

Variant:

2579660000 - Light Blue 45mm CH20M Front Element with Flip Cover (Pack of 30)

Now $90.42

~~BEFORE $0.00~~ Now $90.42

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

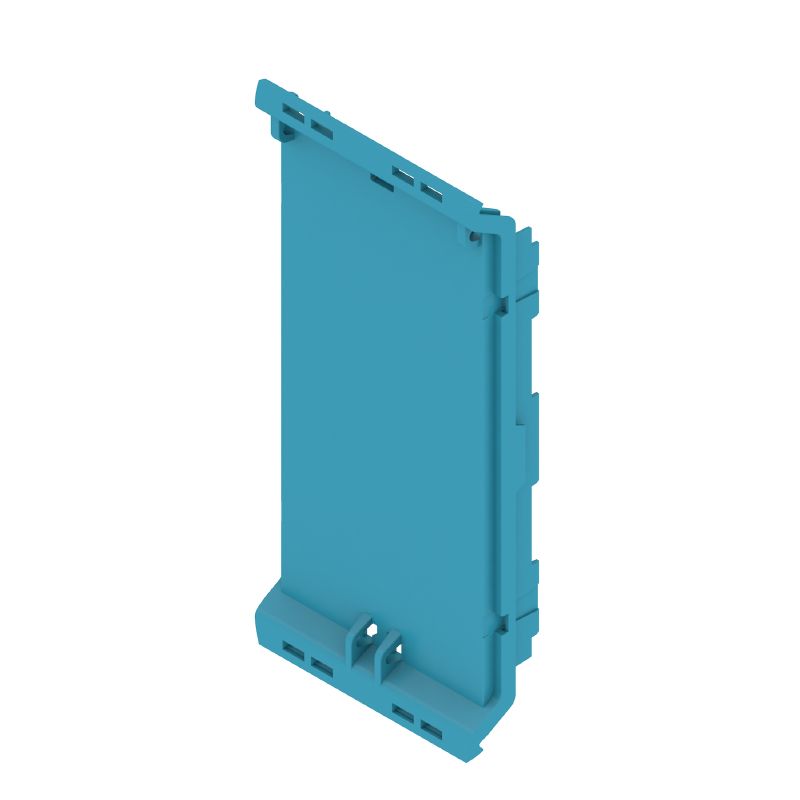

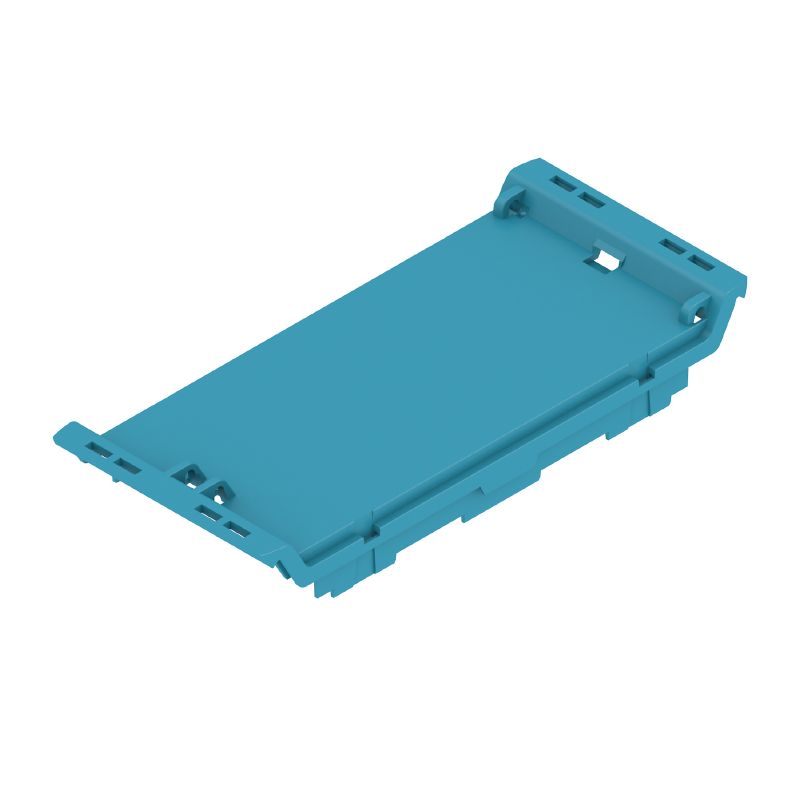

Introducing the light blue front element from the OMNIMATE Housing series, model CH20M This essential component features an innovative design with provisions for a flip cover With a compact width of 45 mm, it is perfect for various applications, bringing both functionality and aesthetic appeal to your projects.

Features and Benefits:

•Flip cover mountable.

•Customer specific cutouts possible.

•Customer specific labelling possible.

•Individualization options available.

Specifications:

Order No.	2579660000
GTIN (EAN)	4050118588613

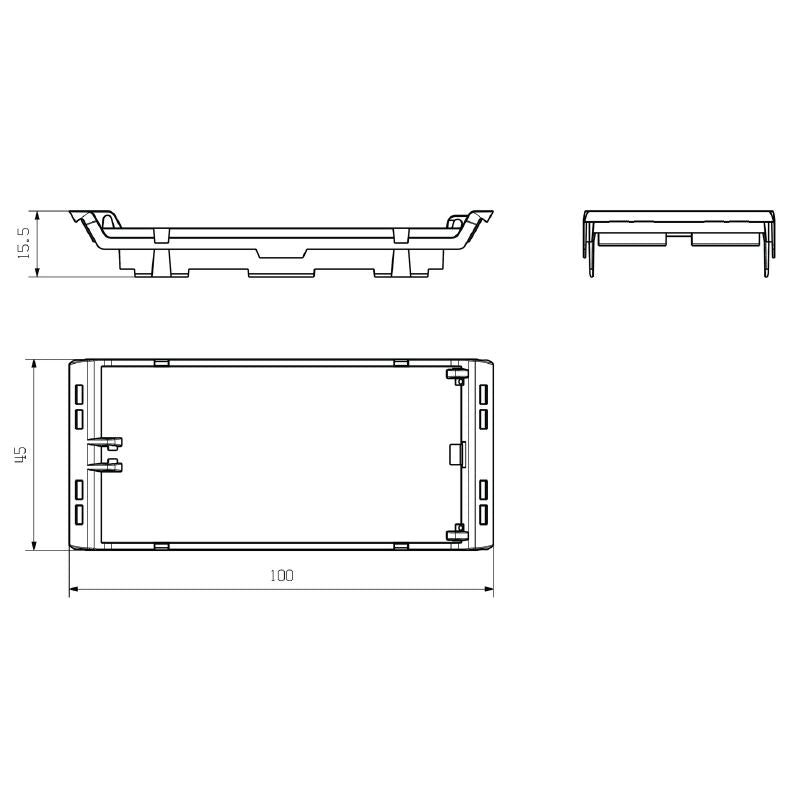

Dimensions	{'Depth': '15.5 mm', 'Height': '100 mm', 'Width': '45 mm'}
Ambient temperature	-25 °C…85 °C
Operating temperature range	-40...120 ℃
Humidity	5 - 93% rel. humidity, Tu = 40°C, no condensation
Material	{'Basic material': 'Plastic', 'Insulating material': 'PA 66 GF 30', 'Surface finish': 'untreated', 'UL 94 flammability rating': 'V-0'}
Protection degree	IP20 in installed state
Comparative Tracking Index (CTI)	600 ≤ CTI
RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%
