Home / PCB ELECTRONIC HOUSING / 1235320000 - 67.5mm Black OMNIMATE Housing, RoHS Compliant (Pack of 8)
1 4

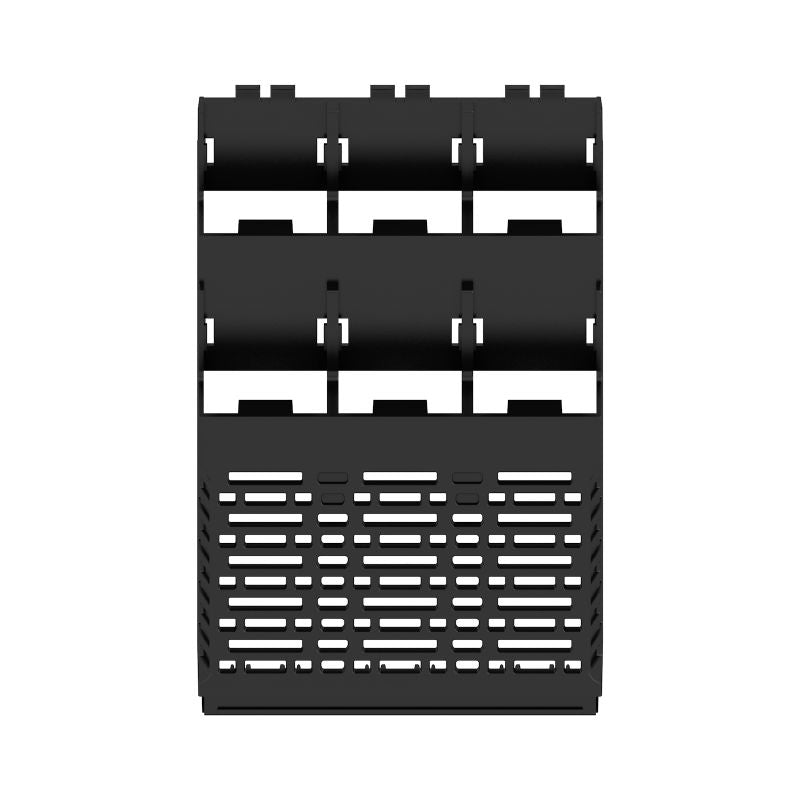

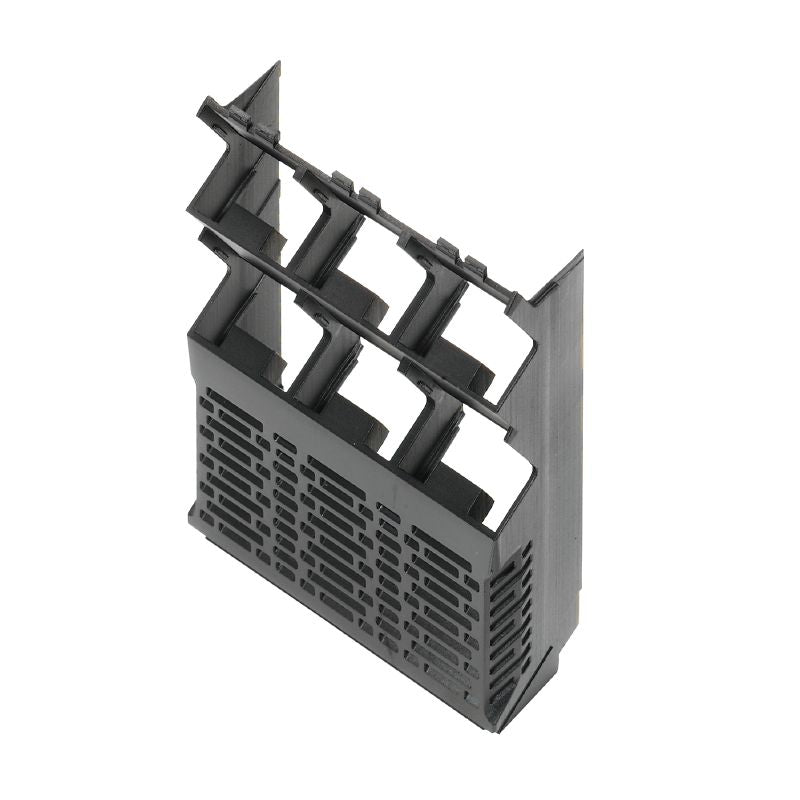

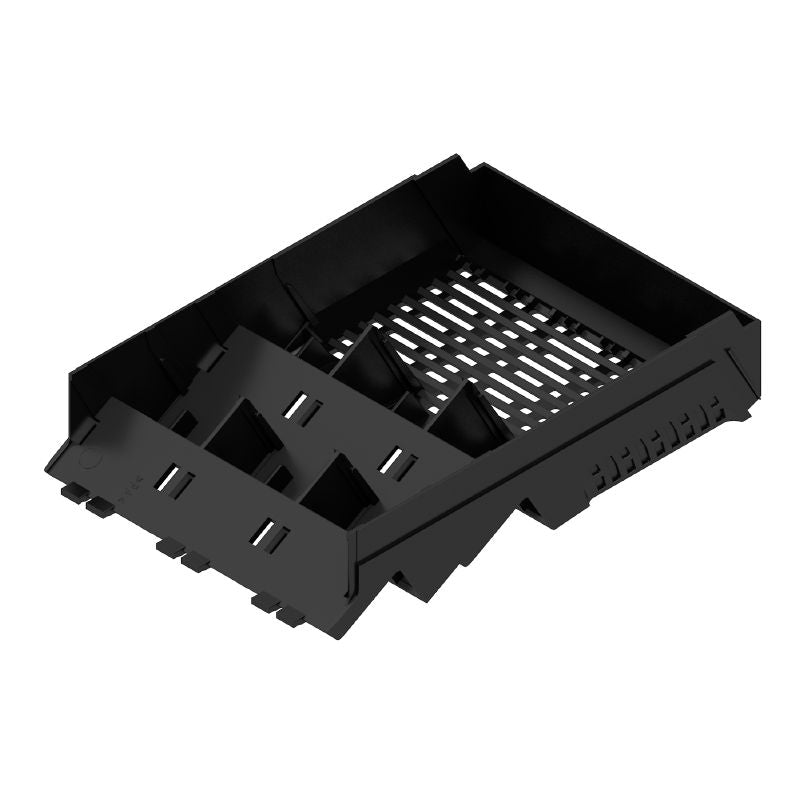

1235320000 - 67.5mm Black OMNIMATE Housing, RoHS Compliant (Pack of 8)

1235320000 - 67.5mm Black OMNIMATE Housing, RoHS Compliant (Pack of 8)

SKU: 1235320000   Download PDF

Select a Variant:
  • 1235320000 - 67.5mm Black OMNIMATE Housing, RoHS Compliant (Pack of 8)
Qty:
Now $45.95   Web pricing policy
BEFORE   $0.00 Now $45.95 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the CH20M67 S 2PSC/2PSC/2PSC BK 2010, a sleek addition to the OMNIMATE Housing series This model features a striking black side element and measures 675 mm in width It is fully RoHS compliant, ensuring it meets environmental safety standards without any exemptions Perfect for your connectivity needs, this housing solution combines functionality with a modern aesthetic.

Features and Benefits:

    •Material: Plastic.

    •Protection degree: IP20 in installed state.

    •Number of connection levels: 2.

    •Max number of poles: 24.

    •Number of slots for female plugs: 6.

    •Number of ventilation openings: 3.

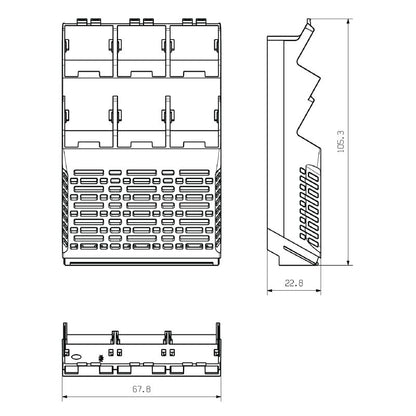

Specifications:

 Depth: 105.3 mm
 Height: 22.8 mm
 Width: 67.5 mm
 Ambient temperature: -25 °C…85 °C
 Operating temperature range: -40...120 ℃
 Humidity: 5 - 93% relative humidity, Tu = 40°C, no condensation
 Comparative Tracking Index (CTI): 600 ≤ CTI
 Insulating material: PA 66 GF 30
 Insulating material group: I
 Surface finish: untreated
 UL 94 flammability rating: V-0
 RoHS Compliance Status: Compliant without exemption
 REACH SVHC: No SVHC above 0.1 wt%
