1925740000 - MHS 6 Mounting Rail, 6.1mm Wide, RoHS Compliant (Pack of 10)

SKU: SKU: 1925740000 Download PDF

Variant:

1925740000 - MHS 6 Mounting Rail, 6.1mm Wide, RoHS Compliant (Pack of 10)

Now $162.93

~~BEFORE $0.00~~ Now $162.93

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

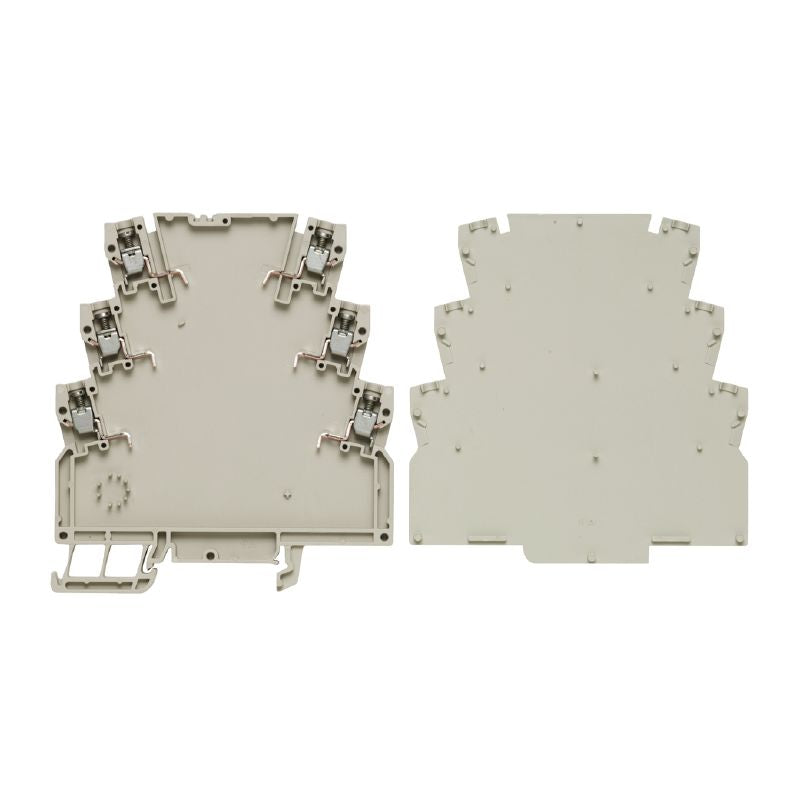

Introducing the MHS 6 mounting rail housing, specifically crafted for OMNIMATE applications Constructed from durable PA 66/6 material, this housing showcases a sophisticated pebble grey finish With an outer width of 61 mm, it meets RoHS compliance and has an IP20 protection rating, making it a reliable choice for various installations.

Features and Benefits:

•Compliant with RoHS standards.

•Encapsulated option available.

•Designed for use with 3 connection levels.

•Compatible with clamping yoke connection.

Specifications:

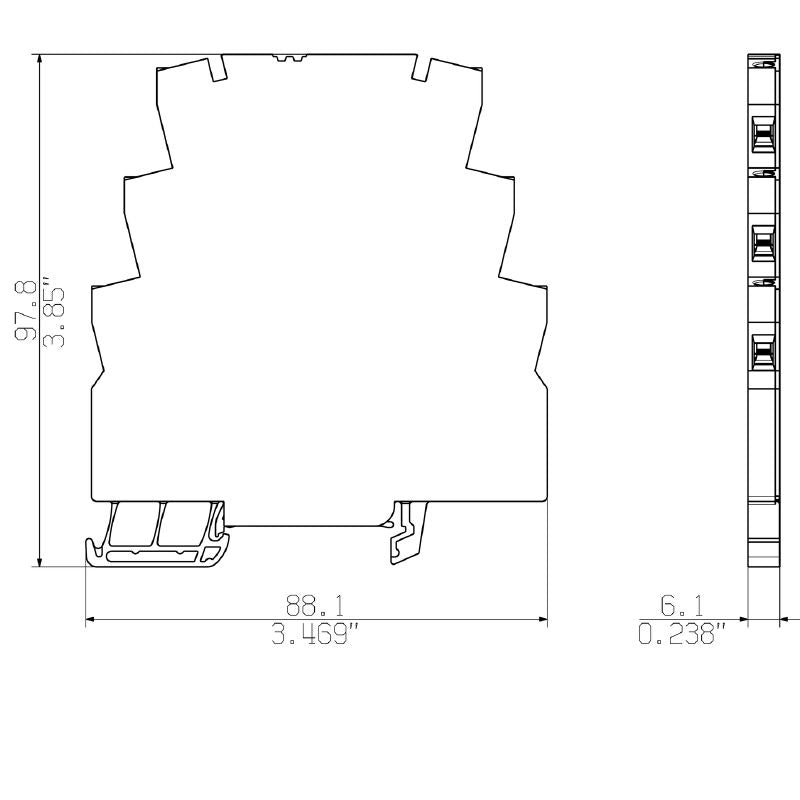

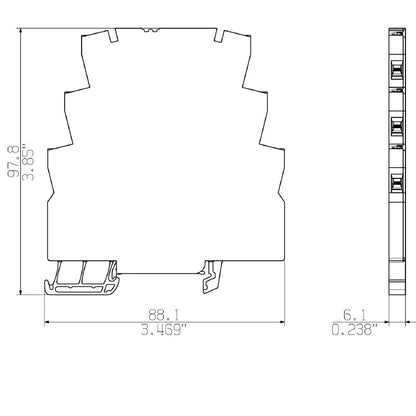

Depth	88.1 mm
Height	97.8 mm
Rated current (max., 20°C)	10 A
Rated current (max., 40°C)	10 A
Rated voltage (surge class II/2)	400 V
Rated voltage (surge class III/2)	320 V
Rated voltage (surge class III/3)	250 V
Rated impulse voltage (class II/2)	4 kV
Rated impulse voltage (class III/2)	4 kV
Rated impulse voltage (class III/3)	4 kV
Insulating material	Wemid (PA)
Surface finish	untreated
UL 94 flammability rating	V-0
Clamping range (min.)	0.13 mm²
Clamping range (max.)	4 mm²
Wire connection cross section AWG (min.)	AWG 26
Wire connection cross section AWG (max.)	AWG 12
