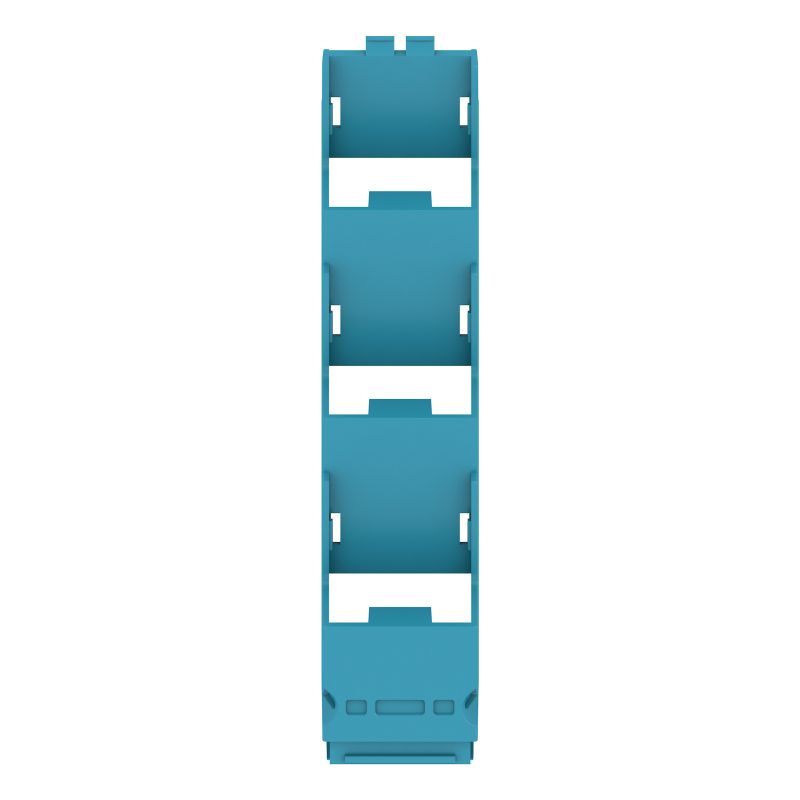

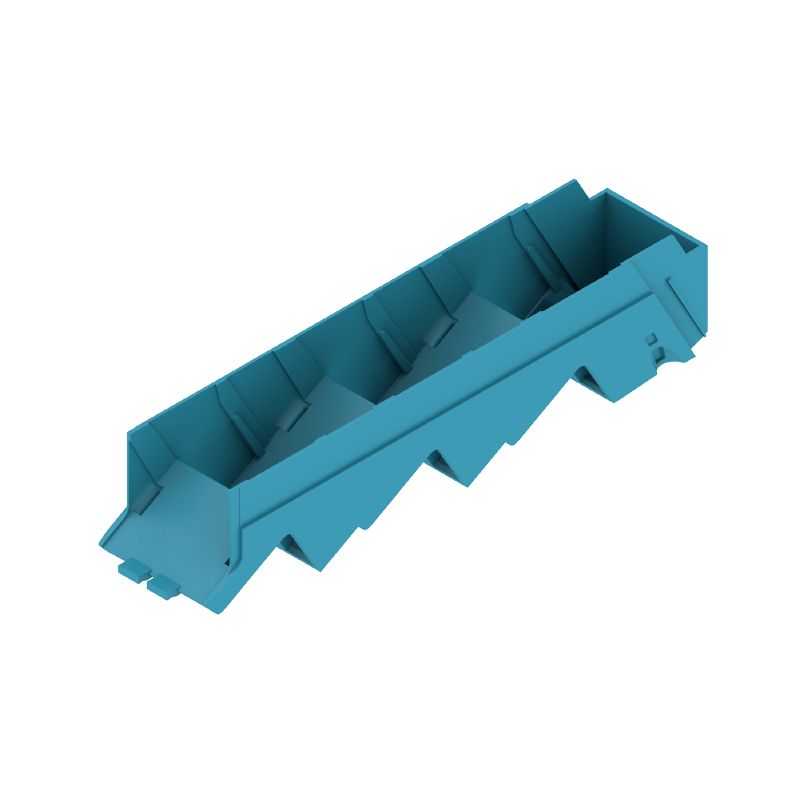

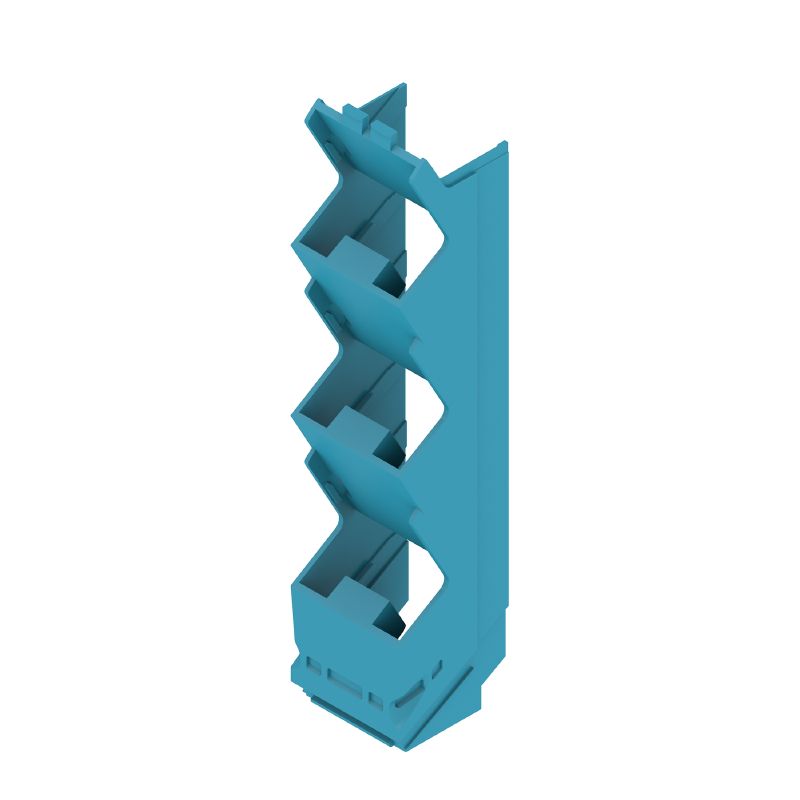

1296430000 - Compact Light Blue OMNIMATE Side Element, 22.5mm Wide (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

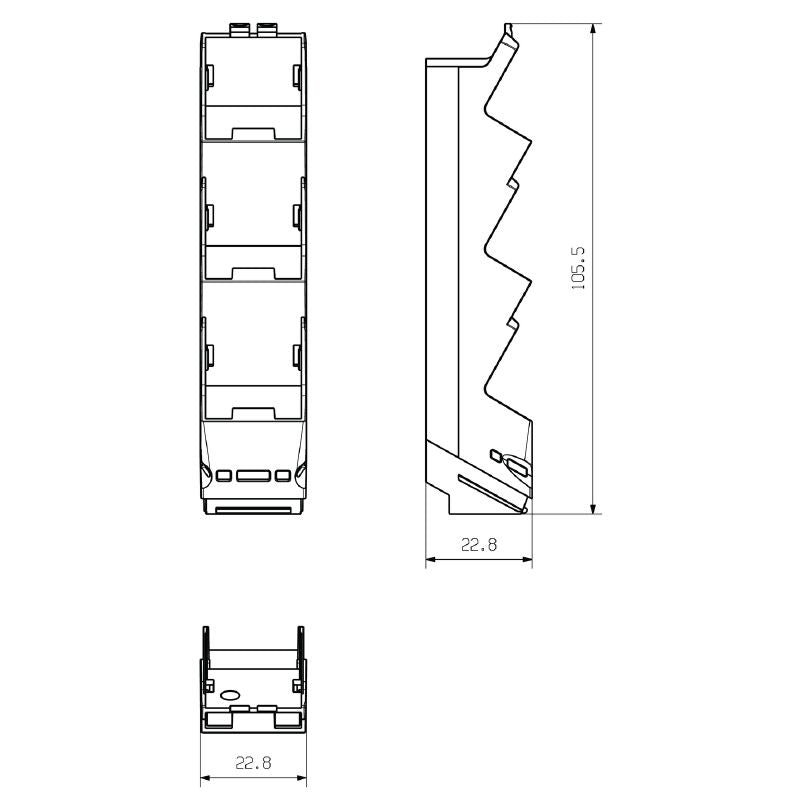

Introducing the CH20M22 S PPP BL 2013 side element for OMNIMATE housing, designed in a calming light blue tone With a compact width of 225 mm, a depth of 1055 mm, and a height of 228 mm, this component is engineered to fit seamlessly into various settings It adheres to RoHS standards, ensuring environmental safety This element can withstand ambient temperatures between -25 °C and 85 °C, while operating effectively in an environment ranging from -40 °C to 120 °C.

Additionally, it maintains functionality in humidity levels from 5% to 93% relative humidity, without the risk of condensation Ideal for diverse applications, it combines efficiency with reliable performance.

Features and Benefits:

•Compliant with RoHS without exemption.

•Basic material is plastic.

•Has a UL 94 flammability rating of V-0.

•Protection degree IP20 in installed state.

•Number of connection levels: 3.

•Max number of poles: 12.

•Number of slots for female plugs: 3.

•No encapsulation option.

Specifications:
