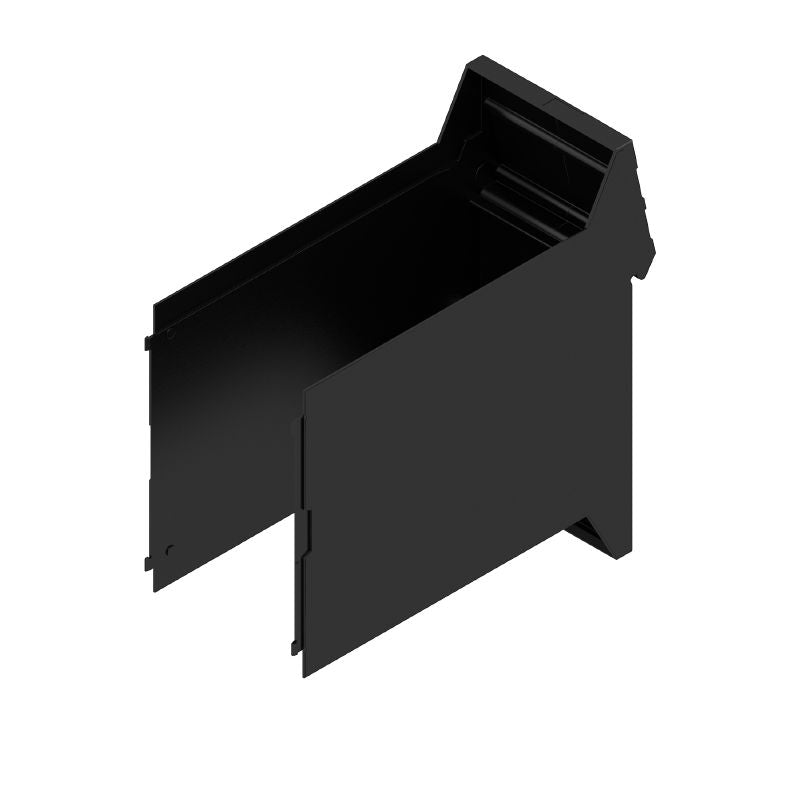

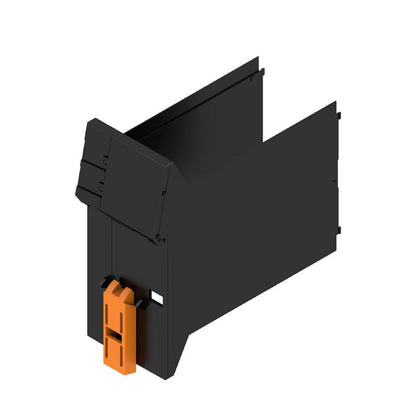

1177030000 - OMNIMATE Modular Housing 45mm Black Design, ROHS Compliant (Pack of 6)

1177030000 - OMNIMATE Modular Housing 45mm Black Design, ROHS Compliant (Pack of 6)

SKU: 1177030000   Download PDF

Select a Variant:
  • 1177030000 - OMNIMATE Modular Housing 45mm Black Design, ROHS Compliant (Pack of 6)
Qty:
Now $44.66   Web pricing policy
BEFORE   $0.00 Now $44.66 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

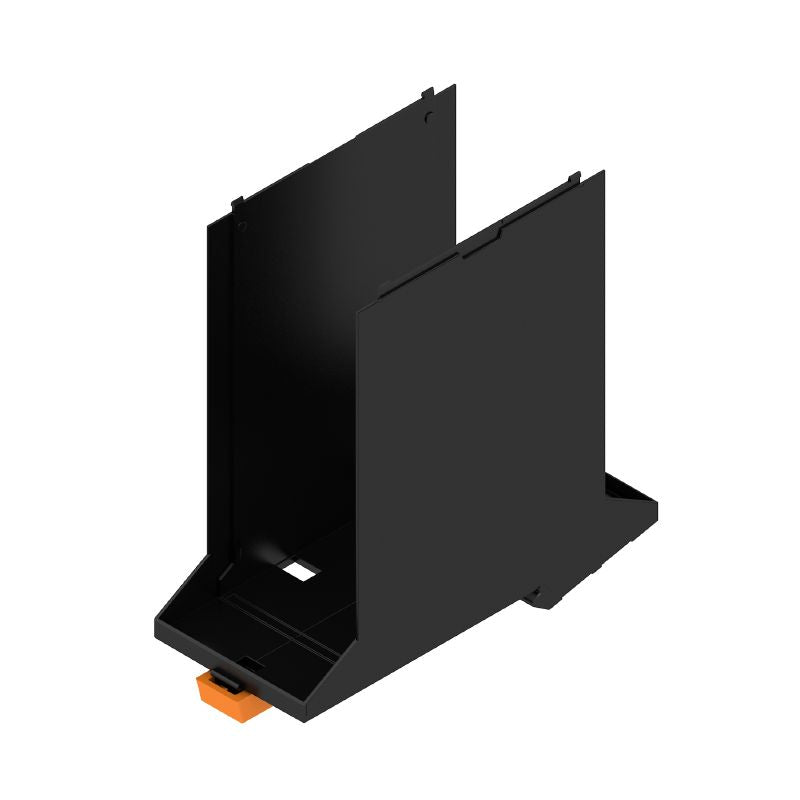

Introducing the CH20M45 B FE BK/OR 2010, a versatile modular housing from the OMNIMATE series This sleek black unit features a design that includes a unique recess in the detent foot area specifically for the female connector contact Built to comply with ROHS standards without any exemptions, this housing ensures both safety and reliability in its application With a compact width of 45 mm, it seamlessly fits into your project requirements.

Features and Benefits:

    •Compliant with ROHS regulations.

    •Modular housing design with a recess for the FE contact.

    •Mechanical testing follows DIN EN 61373:1999 for shock and vibration.

    •Includes an option for customer-specific labeling.

    •Available with alternative colors upon request.

Specifications:

 Depth 108 mm
 Height 109.3 mm
 Width 45 mm
 Ambient temperature -25 °C…85 °C
 Operating temperature range -40...120 °C
 Material Plastic
 Basic material Plastic
 Insulating material PA 66 GF 30
 Protection degree IP20 in installed state
 Max number of connection levels 3
 Max number of poles 48
 Max height of components on PCB (1 PCB) 38.6 mm
 Max height of components on PCB (2 PCBs) 34.7 mm
 UL 94 flammability rating V-0
