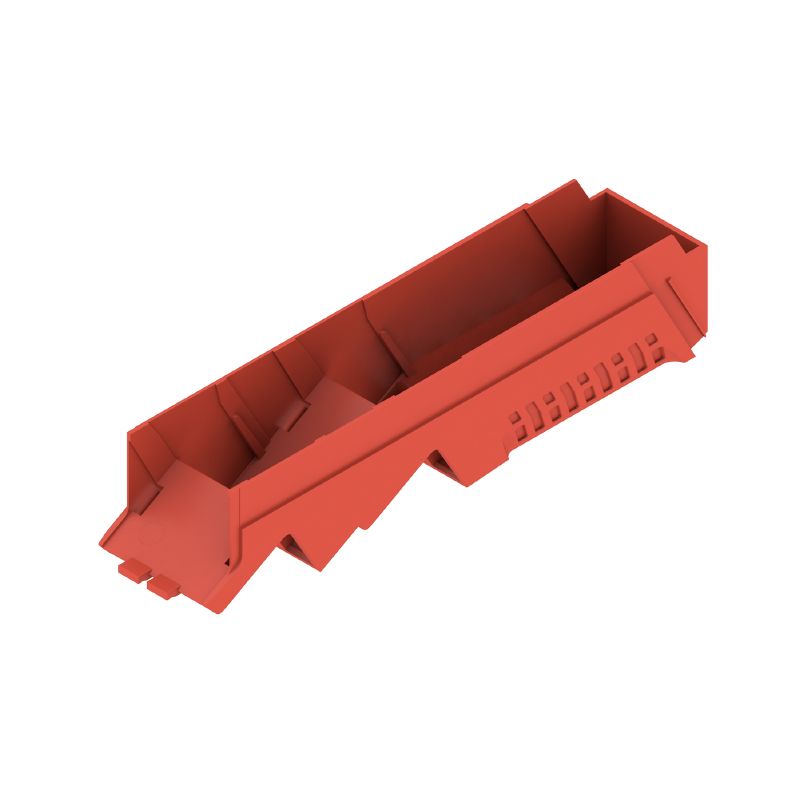

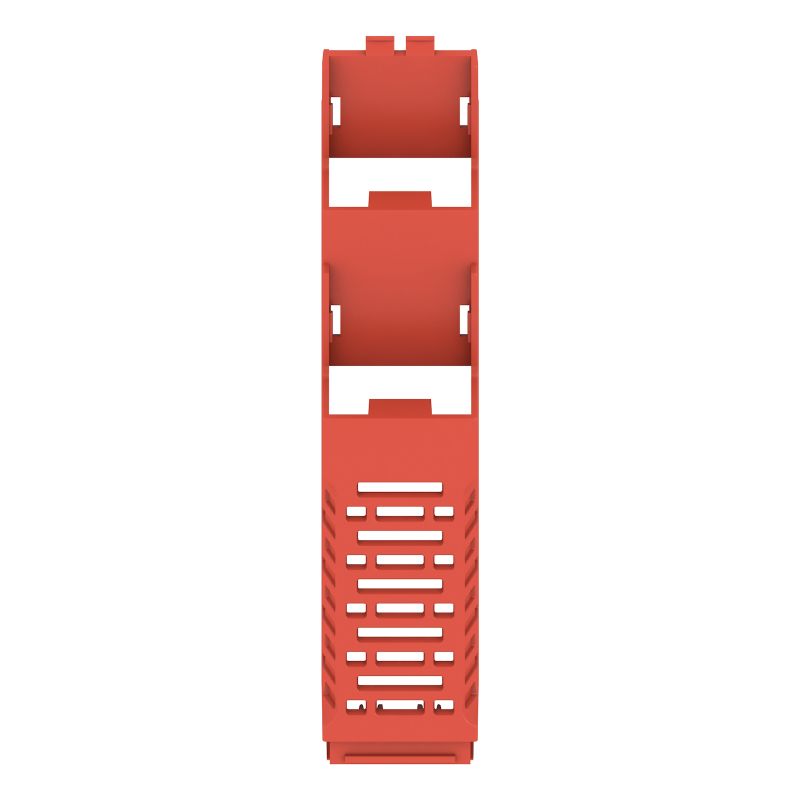

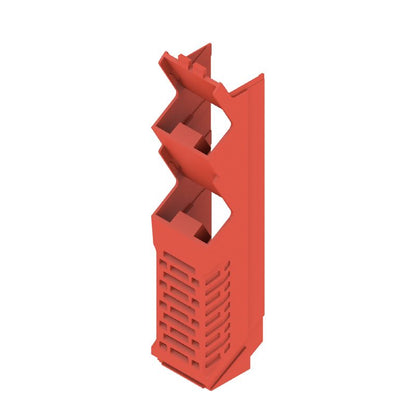

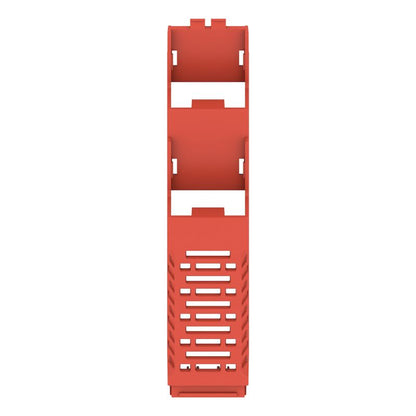

1206890000 - RoHS Approved OMNIMATE Housing Element, 22.5mm Wide, Red (Pack of 10)

1206890000 - RoHS Approved OMNIMATE Housing Element, 22.5mm Wide, Red (Pack of 10)

SKU: 1206890000   Download PDF

Select a Variant:
  • 1206890000 - RoHS Approved OMNIMATE Housing Element, 22.5mm Wide, Red (Pack of 10)
Qty:
Now $28.16   Web pricing policy
BEFORE   $0.00 Now $28.16 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the CH20M22 S PPSC RD 2014, a robust housing component from the OMNIMATE series This piece comes in an eye-catching red hue and boasts a compact width of 225 mm Additionally, it meets RoHS compliance standards, making it a reliable choice for your needs.

Features and Benefits:

    •Protection degree of IP20 in the installed state.

    •Cut out preparation for functional port is not integrated.

    •Two connection levels.

    •Maximum of 8 poles.

    •Two slots for female plugs.

    •One ventilation opening.

Specifications:

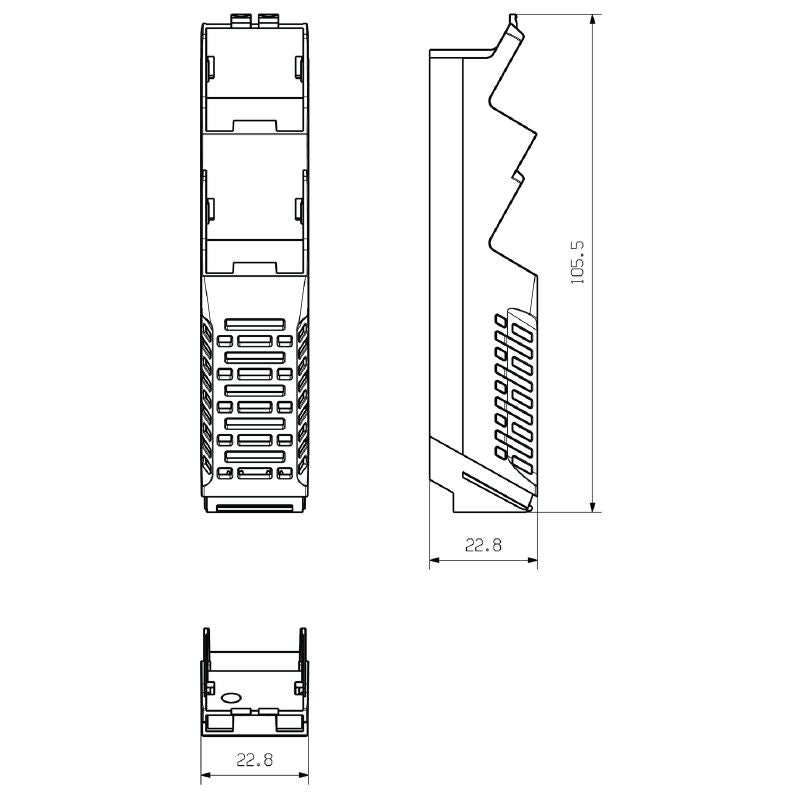

 Depth 105.5 mm
 Height 22.8 mm
 Width 22.5 mm
 Ambient temperature -25 °C to 85 °C
 Operating temperature range -40 to 120 °C
 Humidity 5 - 93% relative humidity at 40°C, no condensation
 Basic material Plastic
 Comparative Tracking Index (CTI) 600 ≤ CTI
 Insulating material PA 66 GF 30
 Insulating material group I
 Surface finish untreated
 UL 94 flammability rating V-0
 Encapsulation option No
 RoHS Compliance Status Compliant without exemption
 REACH SVHC No SVHC above 0.1 wt%
