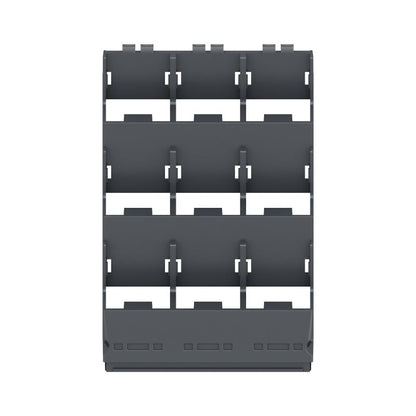

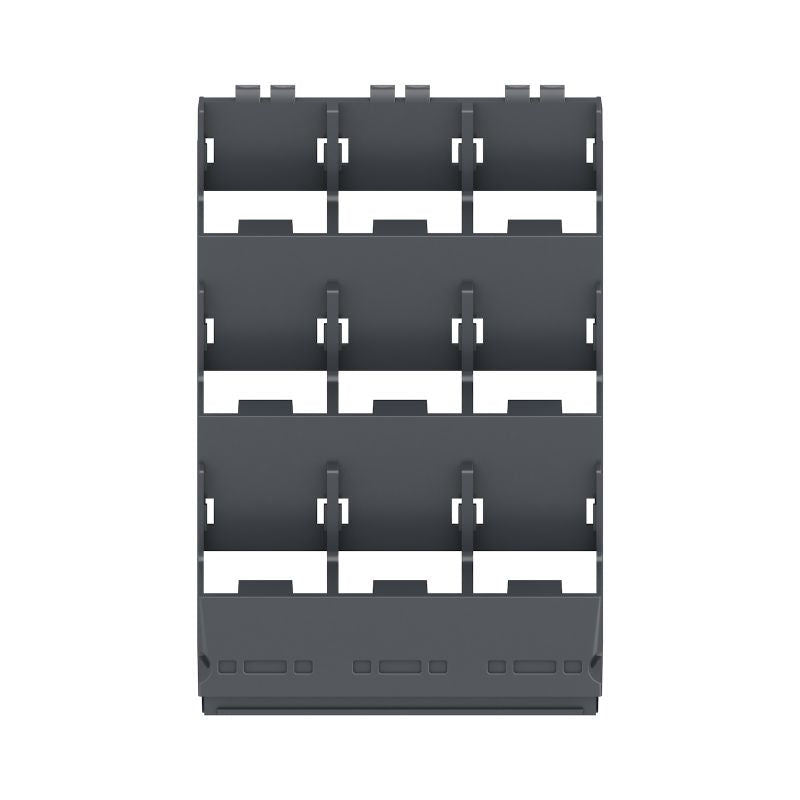

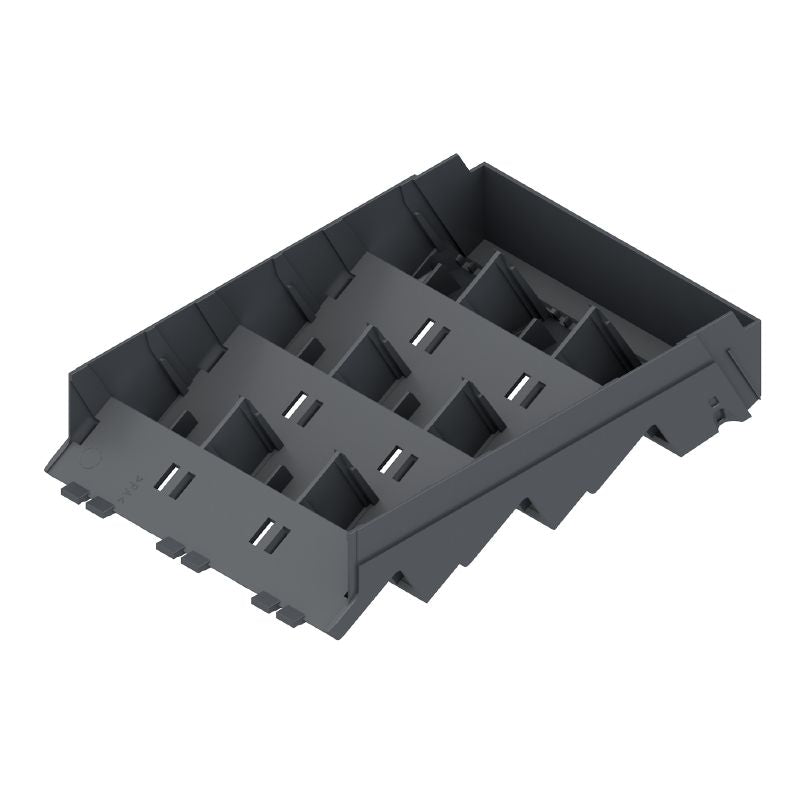

1455770000 - Graphite Grey OMNIMATE Side Element 67mm Wide, 3 Connection Levels (Pack of 8)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

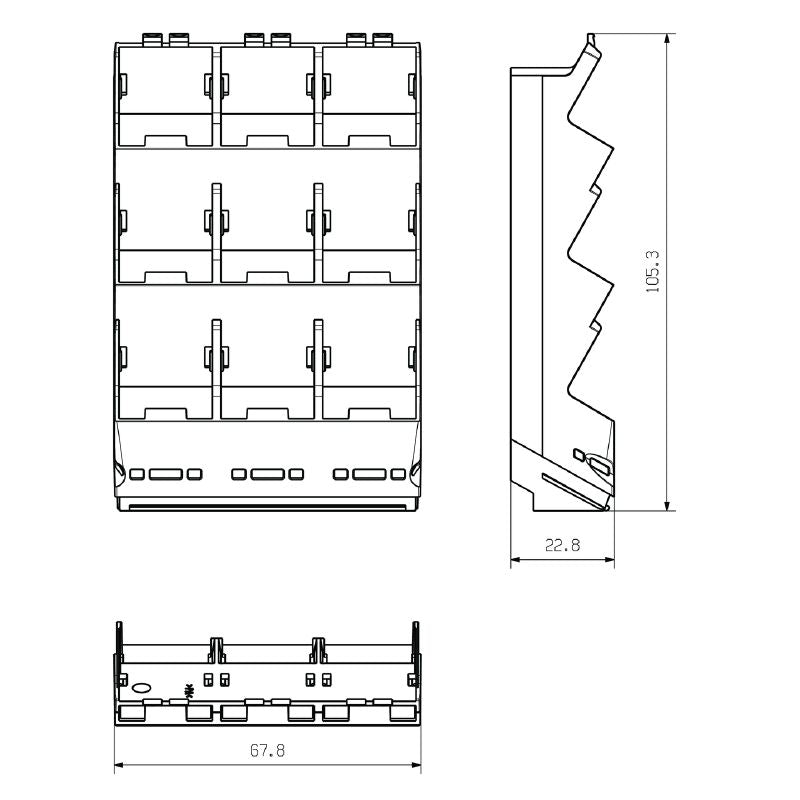

Elevate your connection solutions with the CH20M67 S 3P/3P/3P GGY 2019 side element Crafted from durable plastic in a sophisticated graphite grey, this component measures 67 mm in width, 1053 mm in depth, and stands 228 mm tall It performs exceptionally well in a temperature range from -25 °C to 85 °C, withstanding extreme conditions up to -40 °C to 120 °C This product adheres to RoHS standards without any exemptions, containing no substances of very high concern beyond 0.

1 wt% With three connection levels, it supports configurations of up to 36 poles and features 9 slots for female plugs Offering an IP20 protection rating and a UL 94 flammability classification of V-0, it assures reliability and safety in various applications.

Features and Benefits:

•RoHS compliant without exemptions.

•Does not contain SVHC above 0.1 wt%.

•Constructed from plastic material.

•IP20 protection degree.

•UL 94 V-0 flammability rating.

•No encapsulation option.

•Cut out as preperation for functional port integrated: No.

•Number of ventilation openings: 0.

Specifications:
