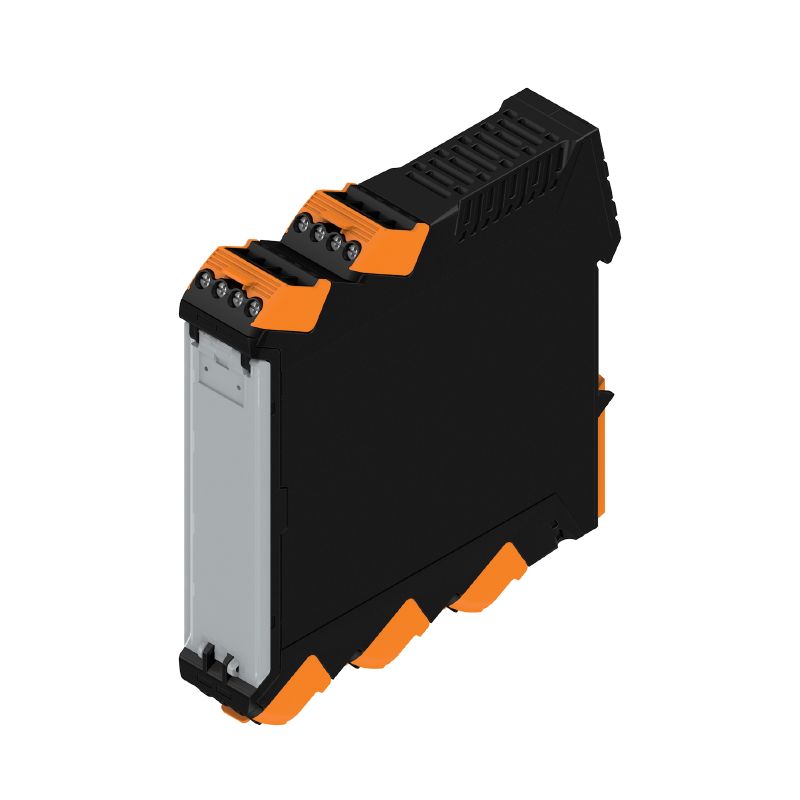

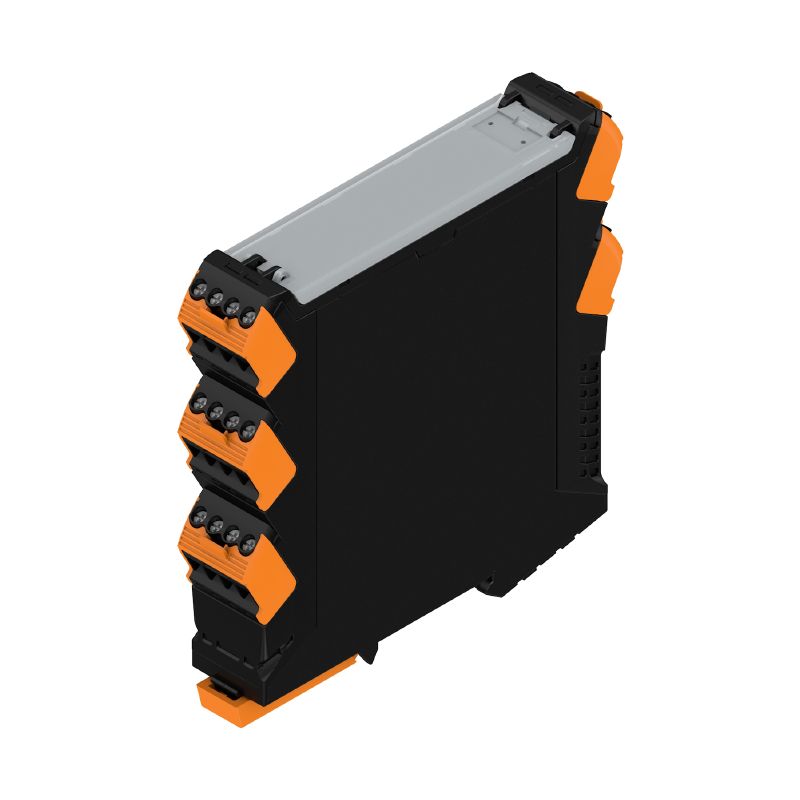

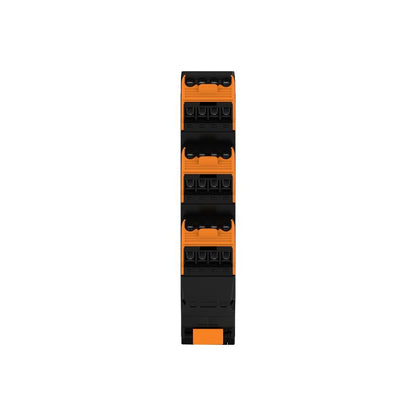

1519340000 - OMNIMATE 22.5mm Black Electronic Housing Sample Kit

1519340000 - OMNIMATE 22.5mm Black Electronic Housing Sample Kit

SKU: 1519340000   Download PDF

Select a Variant:
  • 1519340000 - OMNIMATE 22.5mm Black Electronic Housing Sample Kit
Qty:
Now $50.75   Web pricing policy
BEFORE   $0.00 Now $50.75 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the SAMPLE CH20M22 2/3, a cutting-edge electronic housing from the OMNIMATE Housing series, showcased in an elegant black finish This sample kit is tailored for developers and includes essential components such as a female plug and a fully assembled enclosure for easy integration With a compact width of 225 mm, this housing is perfect for various applications while delivering functionality and style.

Features and Benefits:

    •RoHS compliant without any exemptions.

    •Contains 3 connection levels and 4 poles.

    •Flip cover is mountable.

    •Marker can be integrated.

    •Clamping yoke connection for wire connections.

    •Protection degree IP20 when installed.

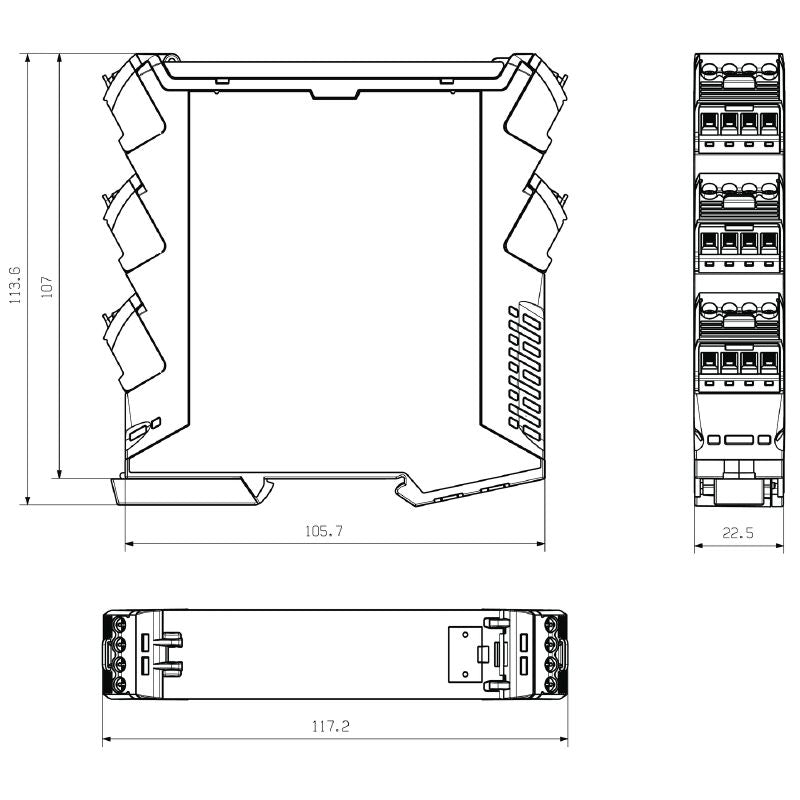

Specifications:

 Depth 113.6 mm
 Height 117.2 mm
 Width 22.5 mm
 Installation temperature -25 °C...85 °C
 Number of ventilation openings 1
 Rated current (Tu=20°C) 10 A
 Rated voltage (pollution degree II/2) 400 V
 Material Plastic
 Stripping length 8 mm
 Tightening torque, min. 0.4 Nm
 Tightening torque, max. 0.5 Nm
 Max. clamping range 2.5 mm²
