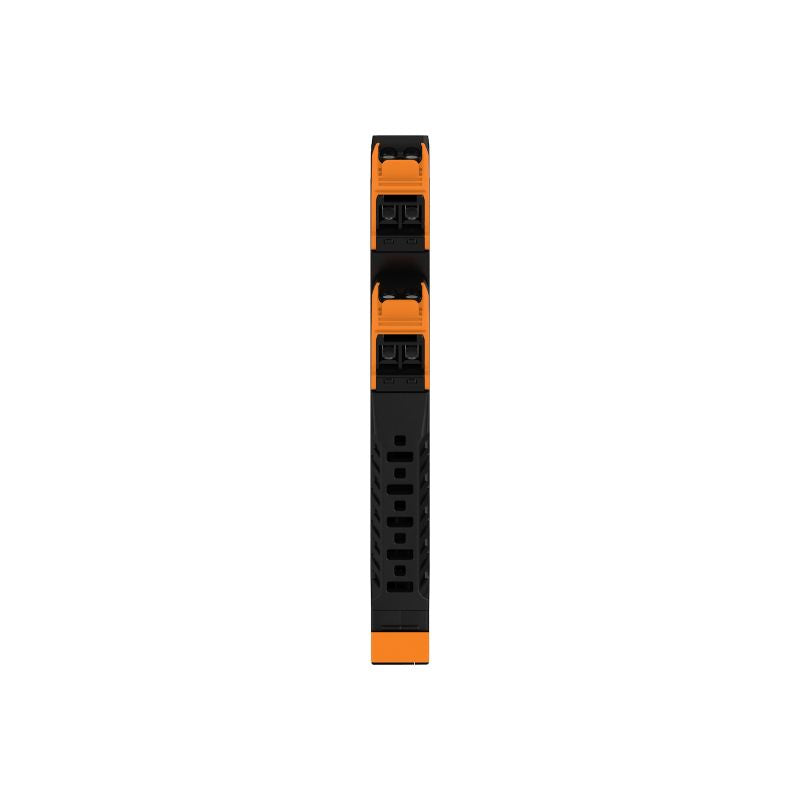

1519270000 - OMNIMATE CH20M 12.5mm Black Electronic Housing Kit

SKU: SKU: 1519270000 Download PDF

Variant:

1519270000 - OMNIMATE CH20M 12.5mm Black Electronic Housing Kit

Now $36.29

~~BEFORE $0.00~~ Now $36.29

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

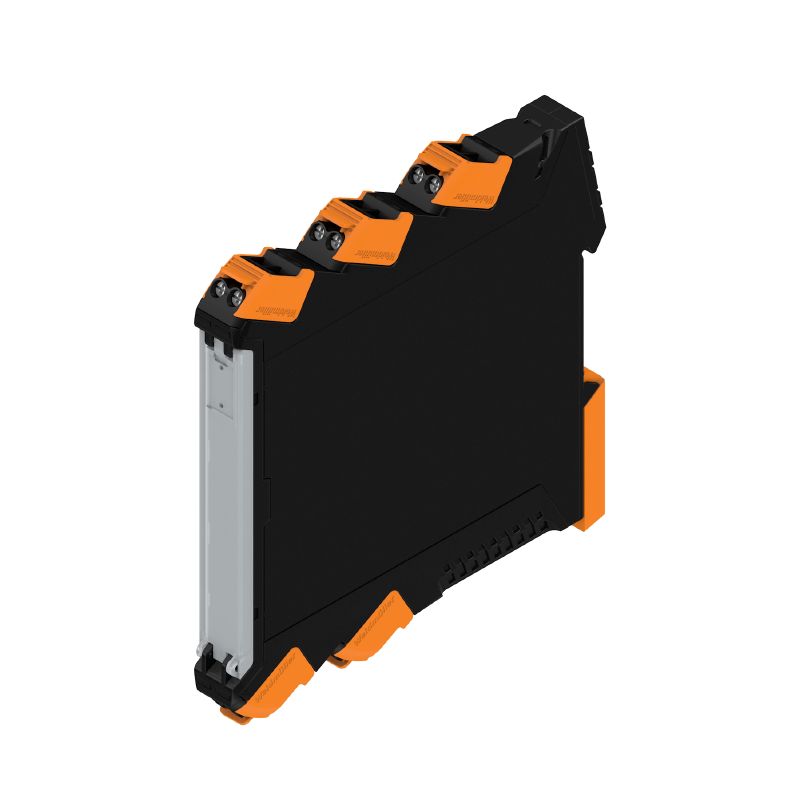

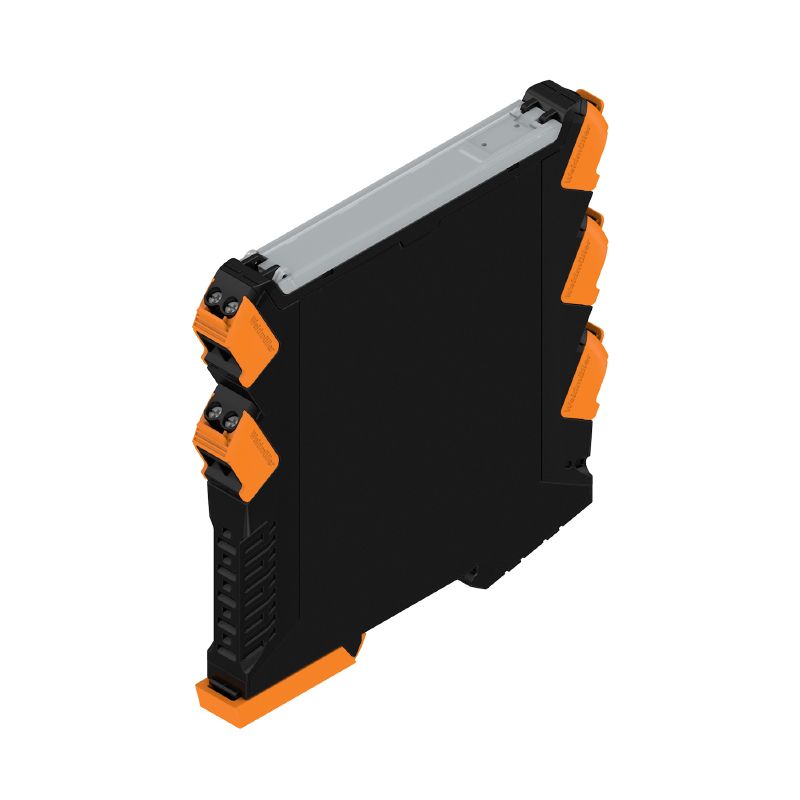

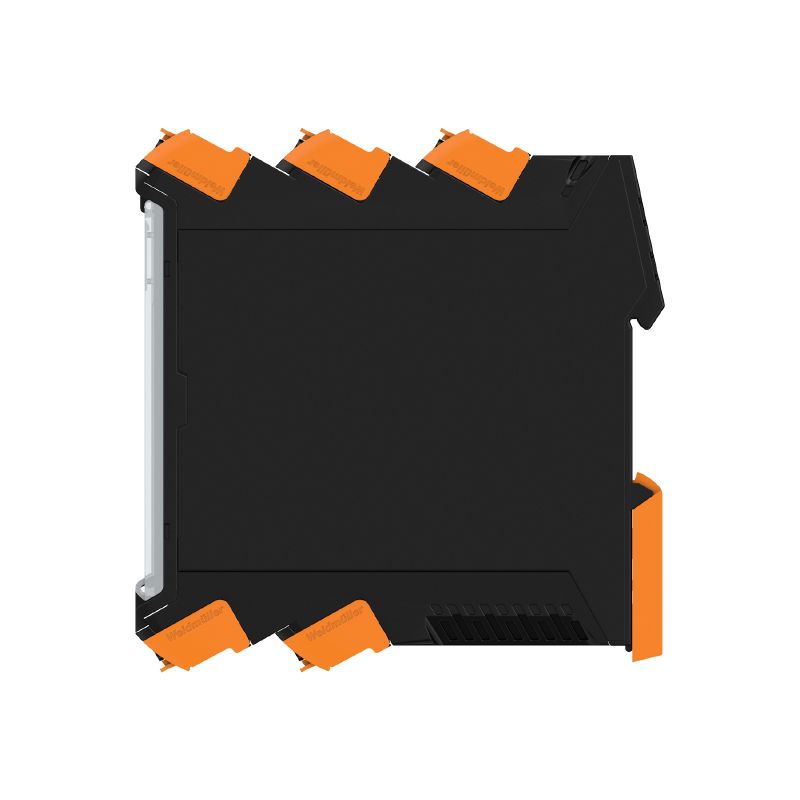

Explore the OMNIMATE Housing series with this electronic housing sample model CH20M, showcased in a sleek black design Tailored for developers, this sample kit includes a variety of essential components, such as a female plug and a comprehensive enclosure The housing measures 125 mm in width, making it a compact and functional choice for your projects.

Features and Benefits:

•Made of plastic.

•Black color.

•IP20 protection degree in installed state.

•Compatible with TS 35 mounting rail.

•Pluggable connection type.

•Clamping yoke connection for wire.

•Number of connection levels: 3.

Specifications:

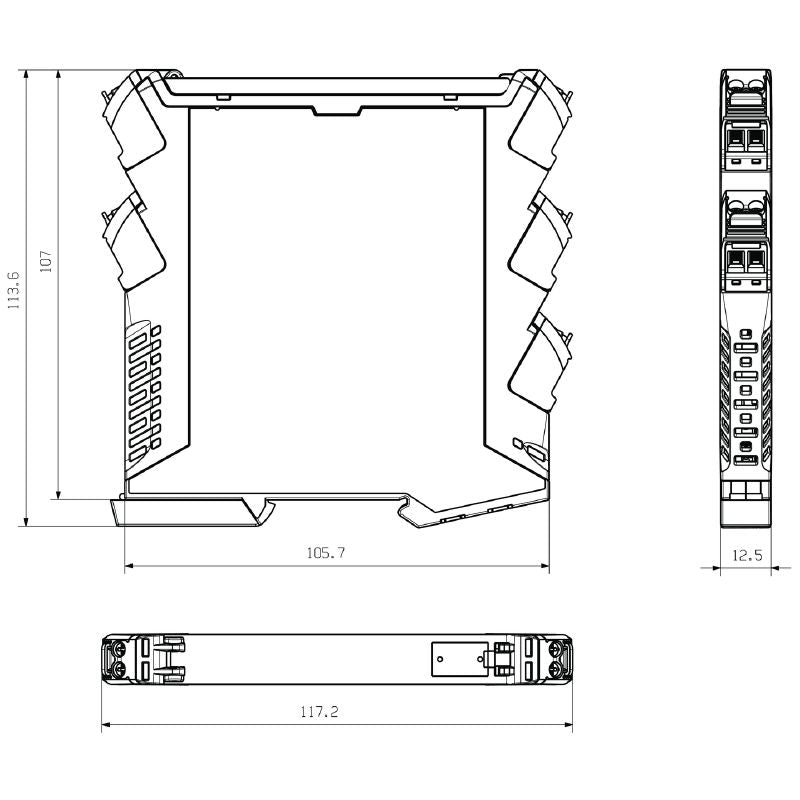

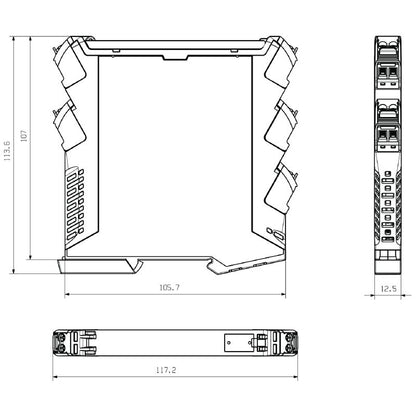

Depth	113.6 mm
Height	117.2 mm
Width	12.5 mm
Installation temperature	-25 °C to 85 °C
Rated current (max, Tu=20°C)	10 A
Rated current (max, Tu=40°C)	9 A
Rated voltage for surge class II/2	400 V
Rated impulse voltage for surge class II/2	4 kV
Basic material	Plastic
Insulating material	PA 66 GF 30
Flip cover mountable	Yes
Number of poles	2
Stripping length	8 mm
Clamping range (min)	0.13 mm²
Clamping range (max)	2.5 mm²
Color of clip-on foot	orange
