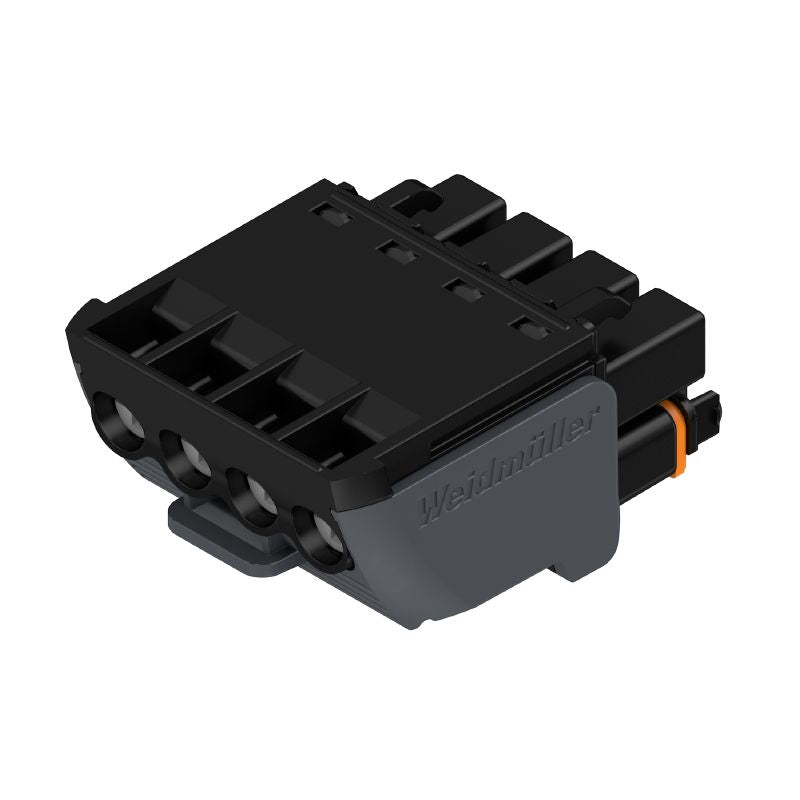

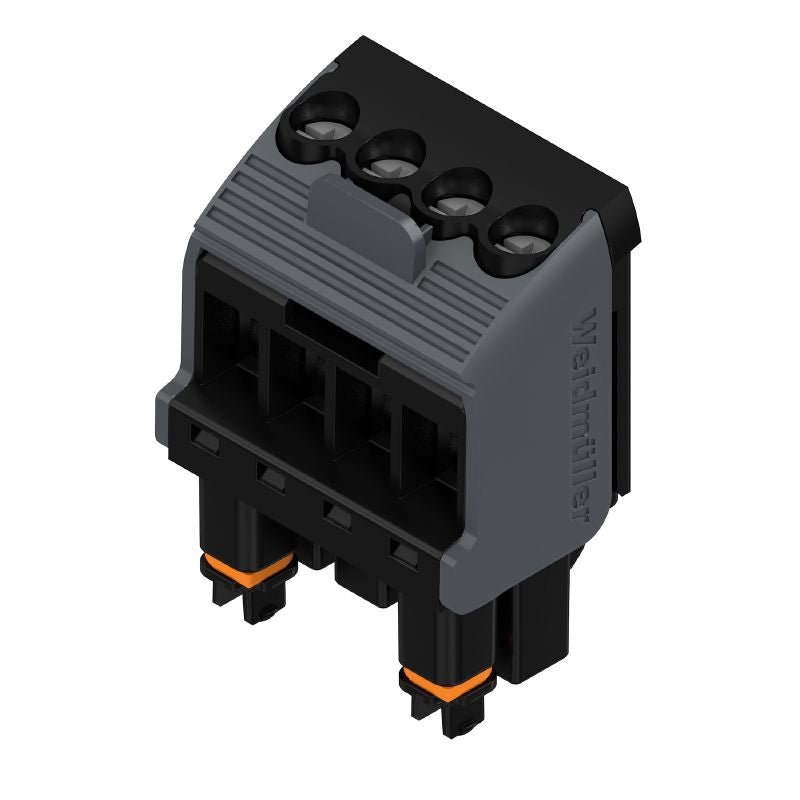

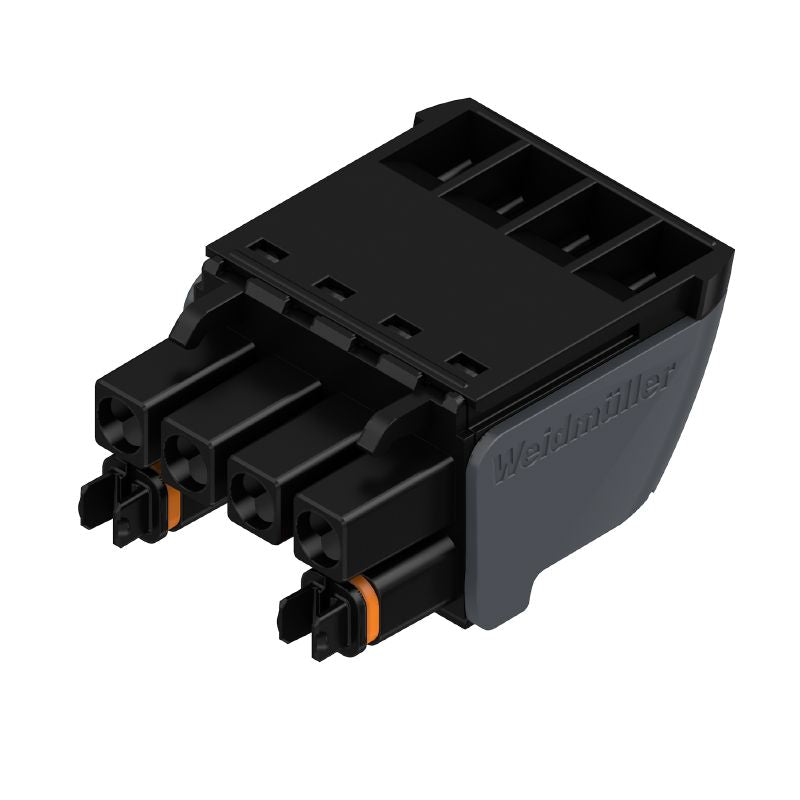

1421750000 - 5.00mm 90° PCB Connector with 4 Poles (Pack of 78)

SKU: SKU: 1421750000 Download PDF

Variant:

1421750000 - 5.00mm 90° PCB Connector with 4 Poles (Pack of 78)

Now $403.24

~~BEFORE $0.00~~ Now $403.24

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile female PCB plug-in connector featuring a compact 500 mm pitch with four poles and a convenient 90° clamping yoke connection This component complies with ROHS standards and holds an E60693 certification, ensuring reliability For easy ordering, use the part number 1421750000 Each connector comes securely packaged with a GTIN of 4050118225518 It meets UL specifications, capable of handling voltages up to 300V and current ratings of 10A, making it a dependable choice for your electronic projects.

Features and Benefits:

•Field connection type.

•Clamping yoke connection method.

•IP20 protection degree.

•Safe from back-of-hand touch.

•Can be coded.

Specifications:

Rated Voltage (IEC)	400 V
Rated Current (IEC)	10 A
Clamping Range	0.2 - 2.5 mm²
Number of Poles	4
Dimensions	{'Depth': '30.6 mm', 'Height': '14.5 mm', 'Width': '22.1 mm'}
Operating Temperature	{'Min': '-40 °C', 'Max': '120 °C'}
Material	{'Insulating Material': 'PA 66 GF 30', 'Contact Material': 'CuSn', 'Flammability Rating': 'V-0'}
