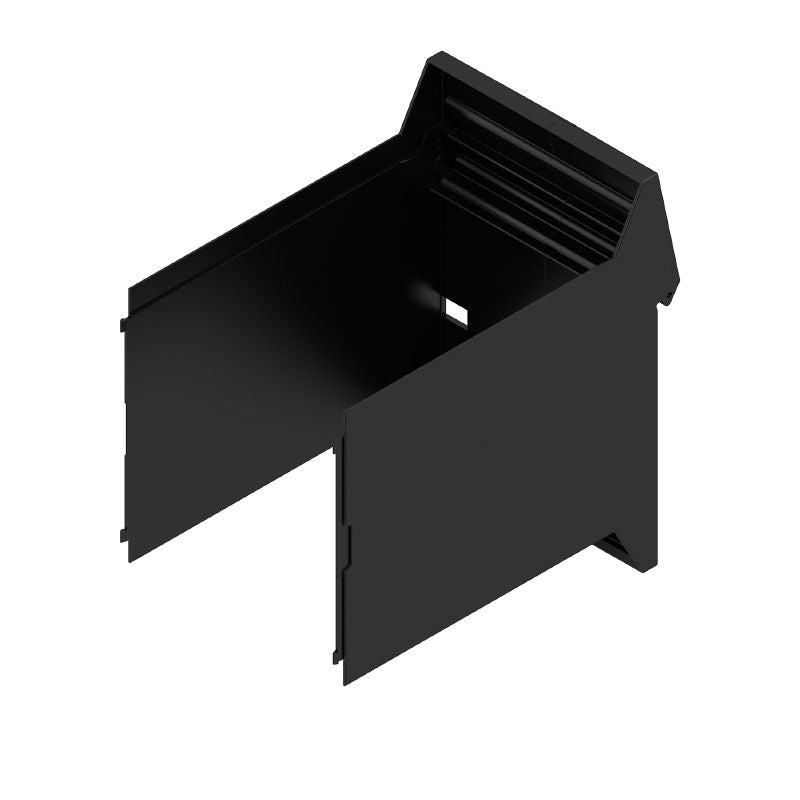

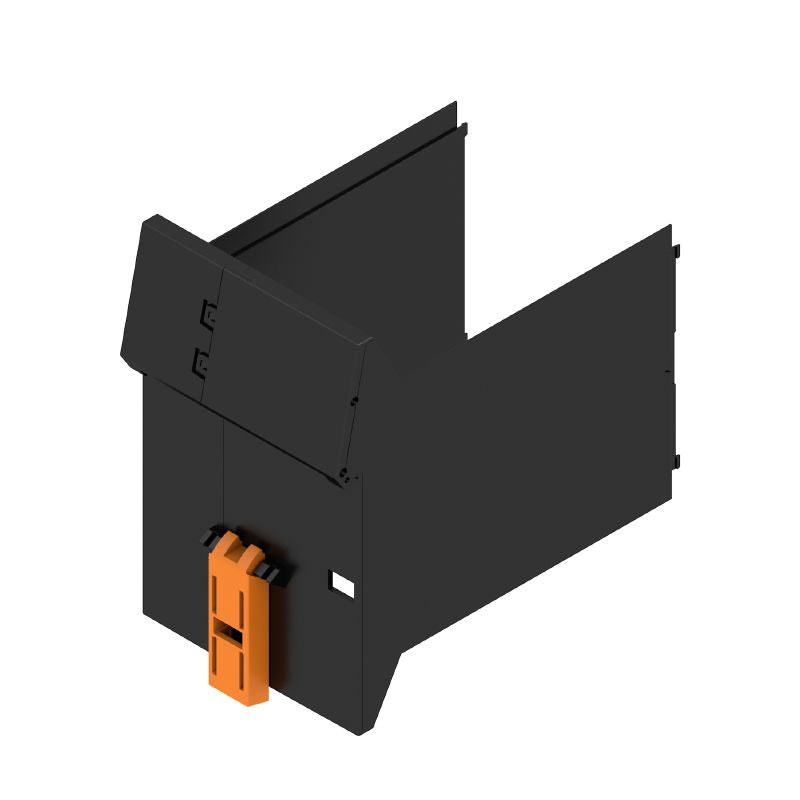

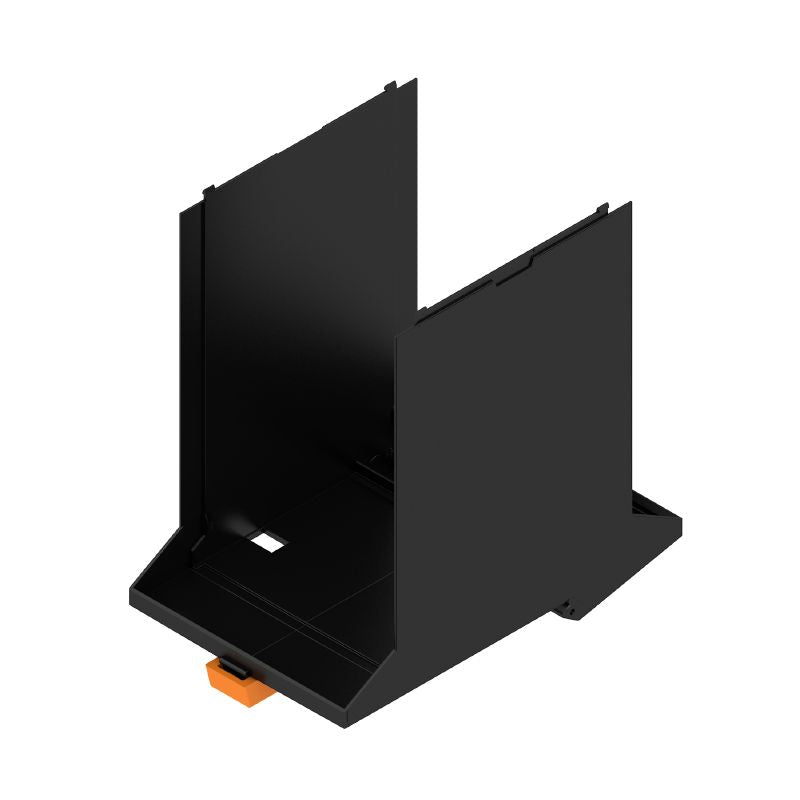

1247250000 - Modular Black Housing, 67.5mm Wide, for OMNIMATE Series (Pack of 4)

SKU: SKU: 1247250000 Download PDF

Select a Variant:

1247250000 - Modular Black Housing, 67.5mm Wide, for OMNIMATE Series (Pack of 4)

SET THE QTY:

Now $40.12 Web pricing policy

~~BEFORE $0.00~~ Now $40.12 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the OMNIMATE Housing series modular housing, featuring a sophisticated black exterior This unit is crafted with a recess in the detent foot area that allows for the seamless insertion of FE contacts It offers a practical width of 675 mm, making it an excellent choice for various applications.

Features and Benefits:

•Compliant with RoHS regulations.

•No encapsulation option.

•Mounting rail type is TS 35.

•Protection degree of IP20 when installed.

•Double-sided assembly of PCBs.

Specifications:

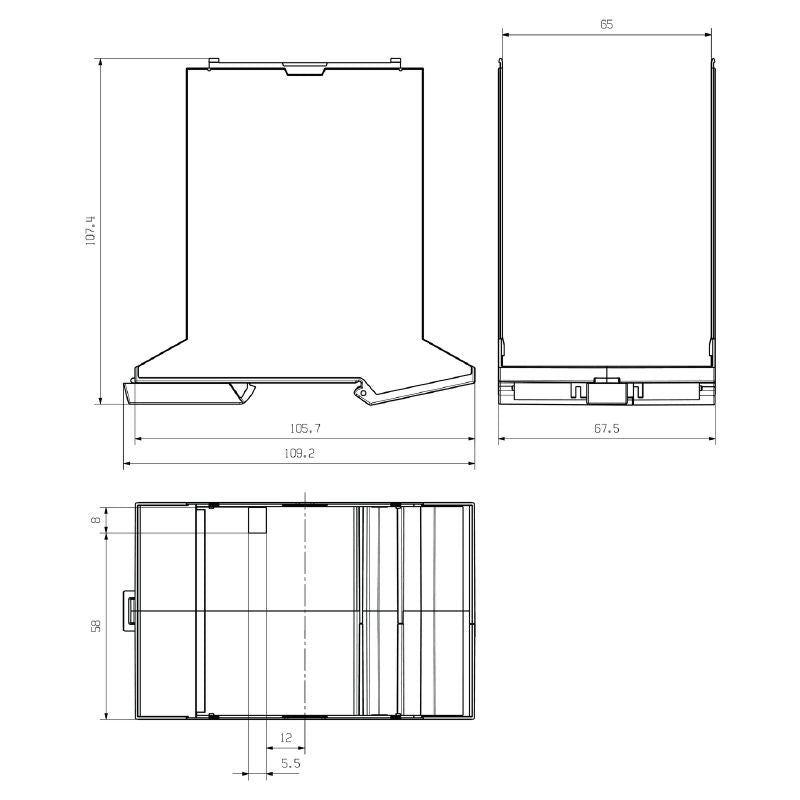

Depth	108 mm
Height	109.3 mm
Width	67.5 mm
Ambient temperature	-25 °C to 85 °C
Operating temperature range	-40 to 120 °C
Humidity	5 - 93% relative humidity at 40°C, no condensation
Basic material	Plastic
Comparative Tracking Index (CTI)	600 ≤ CTI
Insulating material	PA 66 GF 30
Insulating material group	I
Surface finish	untreated
UL 94 flammability rating	V-0
Number of slots for female connectors	18
Number of PCBs	3
Number of connection levels	3
Number of poles	72
Max height of components on PCB (1 PCB)	61.1 mm
Max height of components on PCB (2 PCBs)	57.2 mm
Max height of components on PCB (3 PCBs)	34.7 mm
PCB thickness	1.6 mm
Tolerance for the PCB shape	±0.1 mm
Tolerance of circuit board thickness	±0.15 mm
