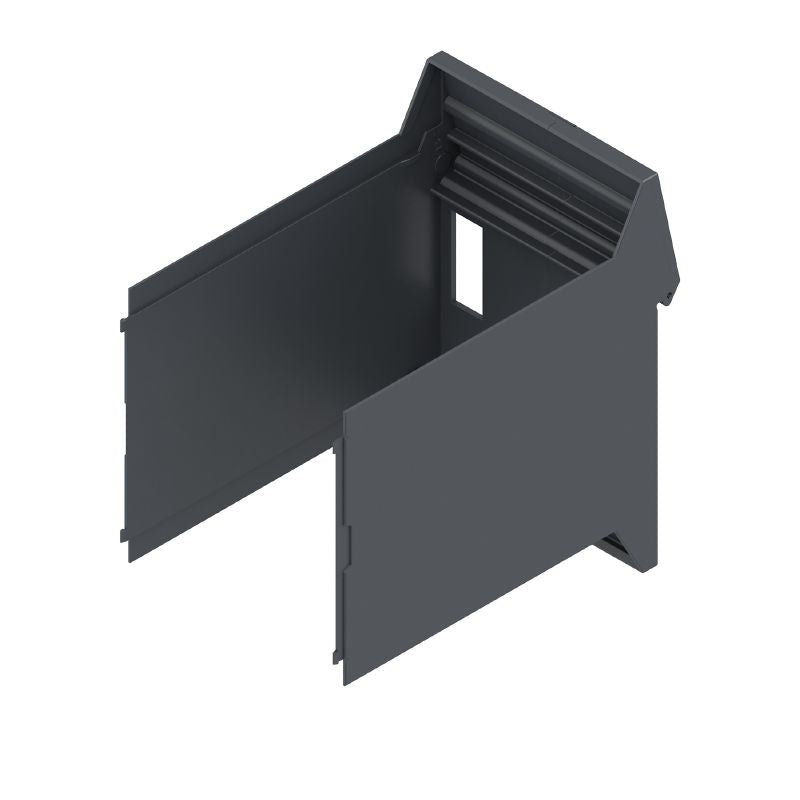

1413780000 - Graphite Grey Modular Housing, 67.5mm, 18 Connectors, RoHS Compliant (Pack of 4)

Description:

Introducing the CH20M67 B BUS GGY/BK 2019, a versatile modular housing from the OMNIMATE Housing series, expertly crafted in a sophisticated graphite grey finish This innovative product features a dedicated recess for the BUS contact located at the detent foot area With a width of 675 mm, it offers great adaptability for various assemblies Compliant with RoHS standards, this housing is free from any SVHC above 0.

1 wt%, ensuring safety and environmental responsibility It allows for connectivity with up to 18 female connectors, supports three PCBs, and accommodates three connection levels with a maximum of 72 poles, catering to a range of applications Engineered for performance, this device operates efficiently in ambient temperatures from -25 °C to 85 °C and maintains functionality even in extreme conditions, ranging from -40 °C to 120 °C.

It also satisfies rigorous mechanical and thermal testing standards, making it a reliable choice for demanding applications.

Features and Benefits:

•Compliant with RoHS without exemption.

•Can be customized with customer specific labeling.

•Multiple alternative colors available upon request.

•Utilizes double-sided assembly for PCBs.

•Protection degree IP20 when installed.
